5 Year Warranty

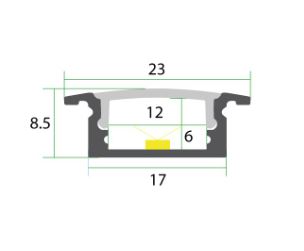

Dimension Drawing (mm)

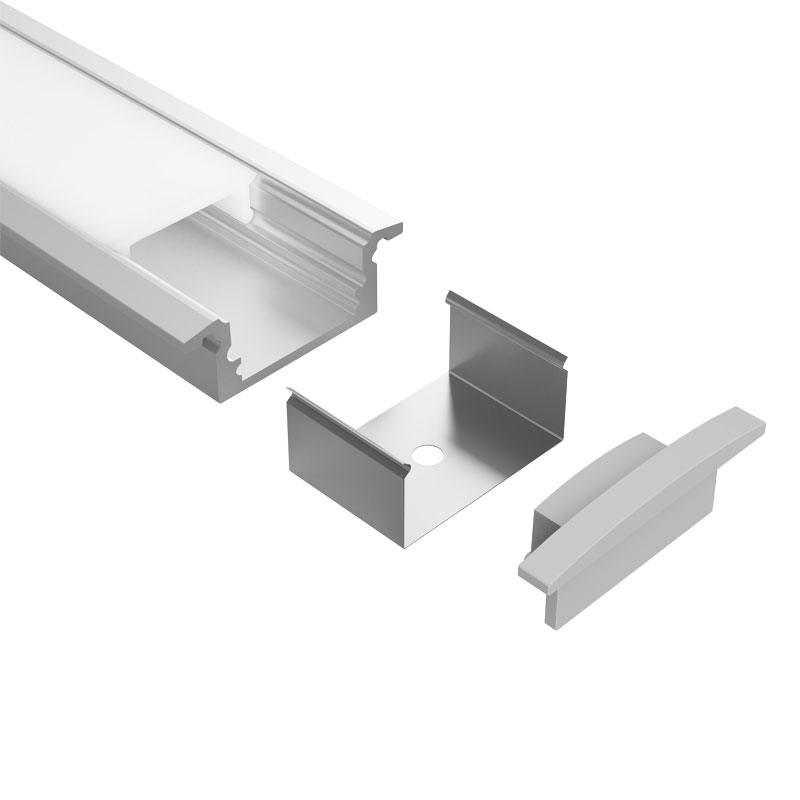

Accessories

End Cap Without Cable Hole Code: LEDCHAN120EC1
End Cap With Cable Hole Code: LEDCHAN120EC2

LEDCHAN120OL

Shallow Recessed 23mm x 8.8mm Aluminium Profile

Product Overview

The LEDCHAN120 is a shallow recessed aluminium profile designed for LED strip lighting. Its compact design makes it well suited for cabinetry, toe kicks, shelving, and installations where a clean, unobtrusive lighting solution is required. This profile delivers a minimalist finish while providing effective light diffusion and heat management.

Product Information

Profile Code LEDCHAN120OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
