5 Year Warranty

Dimension Drawing (mm)

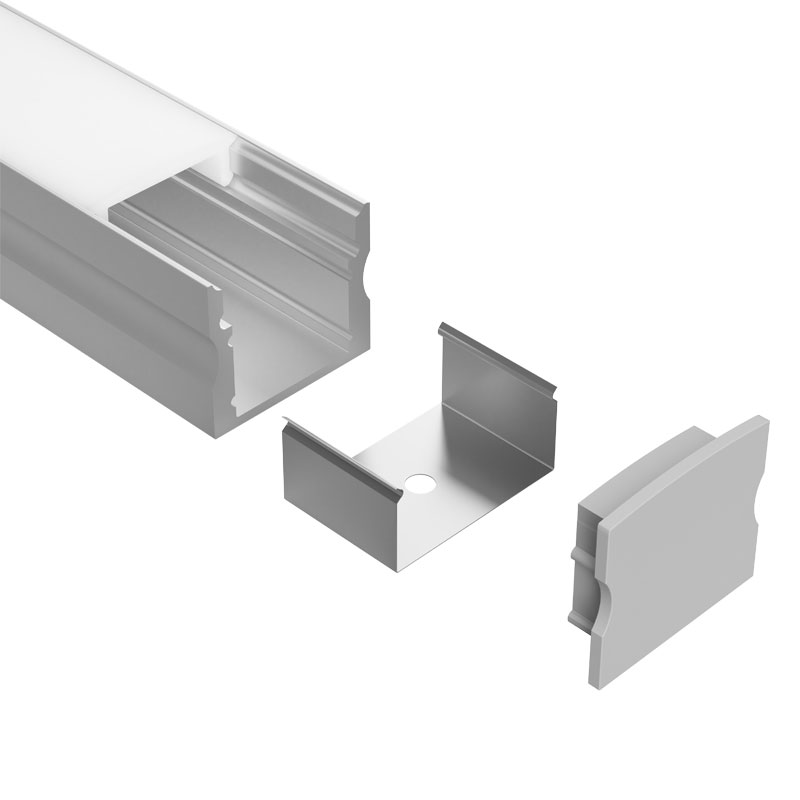

Accessories

End Cap Without Cable Hole Code: LEDCHAN130EC1
End Cap With Cable Hole Code: LEDCHAN130EC2
Mounting Clips + Screws Code: LEDCHANMC1

LEDCHAN130OL

Deep Surface Mount 17.1mm x 15.2mm Aluminium Profile

Product Overview

LEDCHAN130 is a medium depth, surface-mounted profile that provides dot-free illumination when paired with the appropriate LED strip. This cost-effective profile features a PMMA acrylic diffuser and installs easily using mounting clips or countersunk screws through the base.

Product Information

Profile Code LEDCHAN130OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
