5 Year Warranty

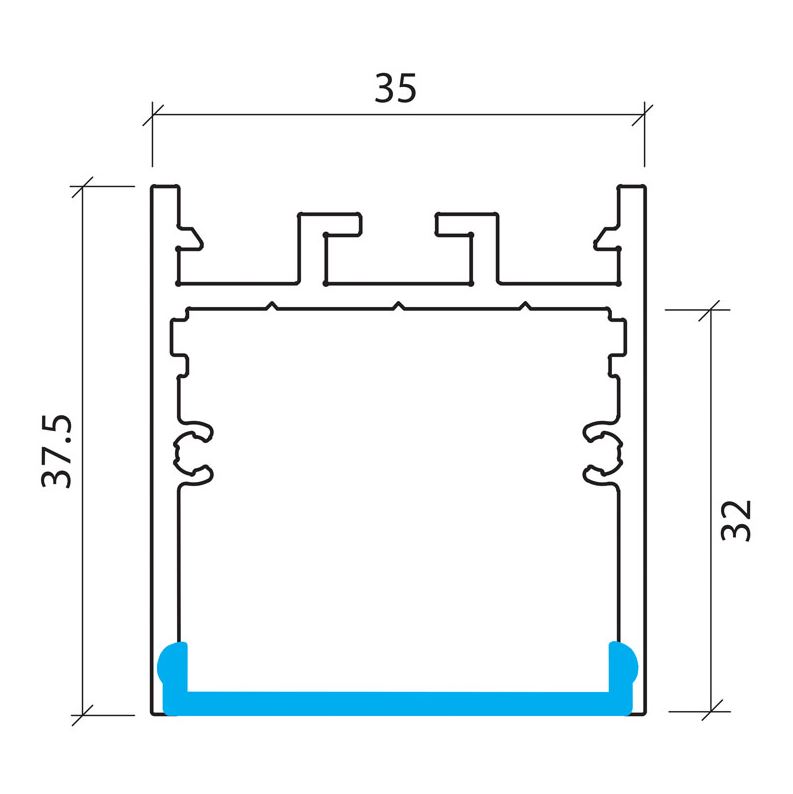

Dimension Drawing (mm)

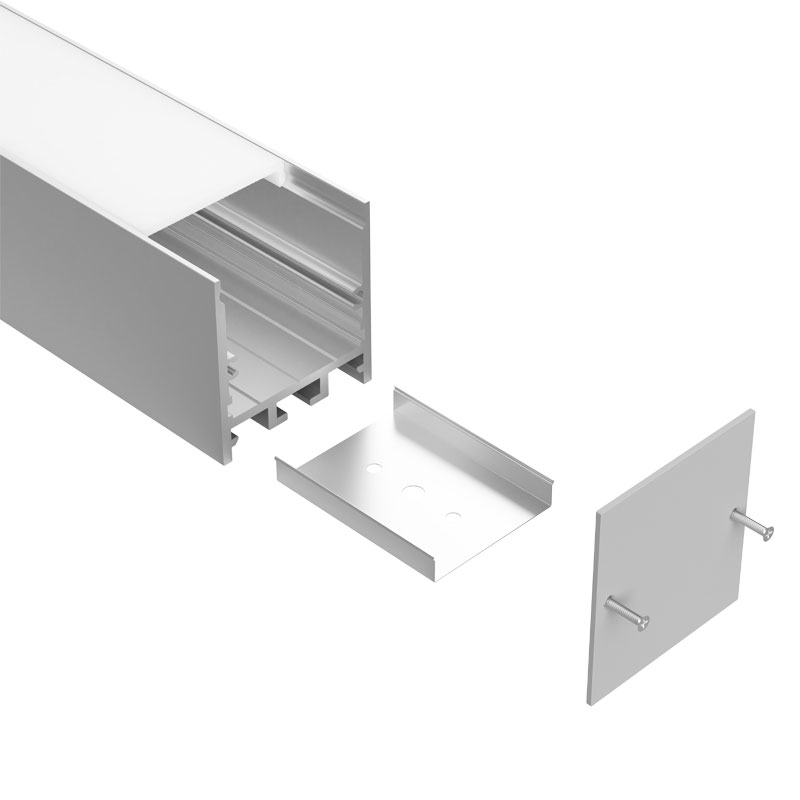

Accessories

End Cap Without Cable Hole Code: LEDCHAN150EC1
End Cap With Cable Hole Code: LEDCHAN150EC2
Mounting Clips + Screws Code: LEDCHANMC2

LEDCHAN150OL

Deep Surface Mount 34.8mm x 37.5mm Aluminium Profile

Product Overview

LEDCHAN150 is a versatile profile designed for general applications, suitable for surface mounting, or suspension. Its aluminium base provides excellent thermal management, acting as an efficient heat sink to extend the life of the LED strip whilst delivering smooth, dot-free illumination, making it a reliable choice for both functional and architectural lighting.

Product Information

Profile Code LEDCHAN150OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
