5 Year Warranty

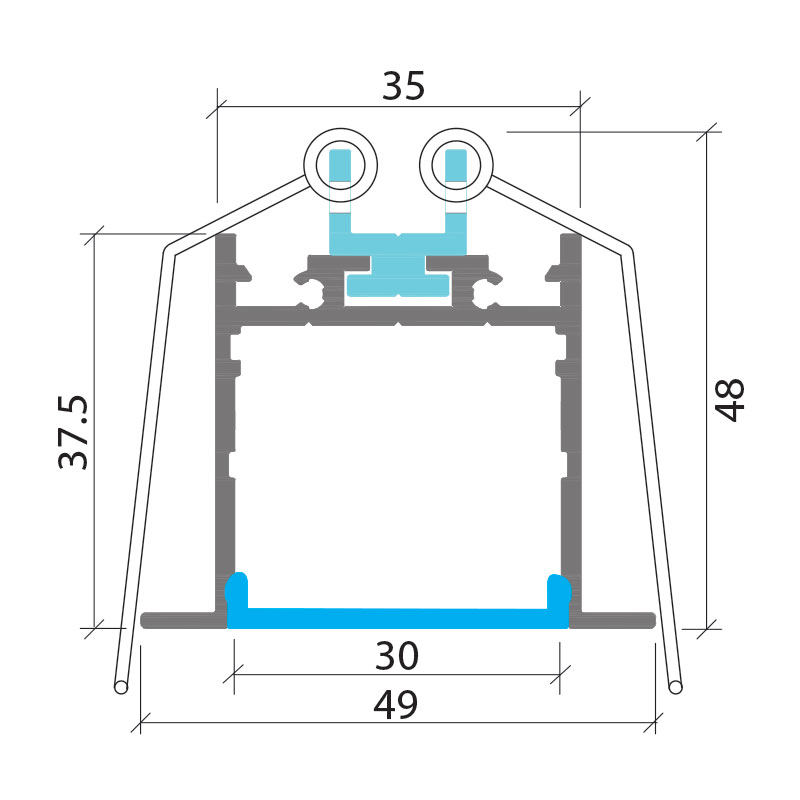

Dimension Drawing (mm)

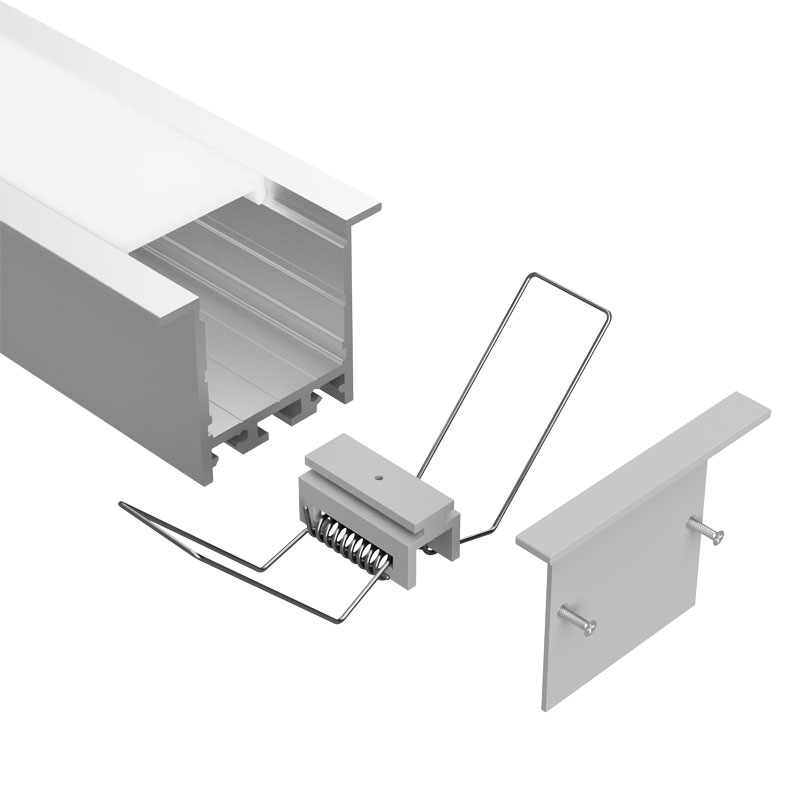

Accessories

End Cap Without Cable Hole Code: LEDCHAN160EC1
End Cap With Cable Hole Code: LEDCHAN160EC2

LEDCHAN160OL

Deep Recessed 49mm x 48mm Aluminium Profile

Product Overview

LEDCHAN160 is a versatile recessed profile with a clean, flanged edge designed for general lighting applications. Engineered for seamless integration into ceilings and architectural details, is aluminium base provides excellent thermal management, acting as an efficient heat sink to extend the life of the LED strip whilst delivering smooth, dot-free illumination, making LEDCHAN160 a reliable choice for both functional and architectural lighting.

Product Information

Profile Code LEDCHAN160OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
