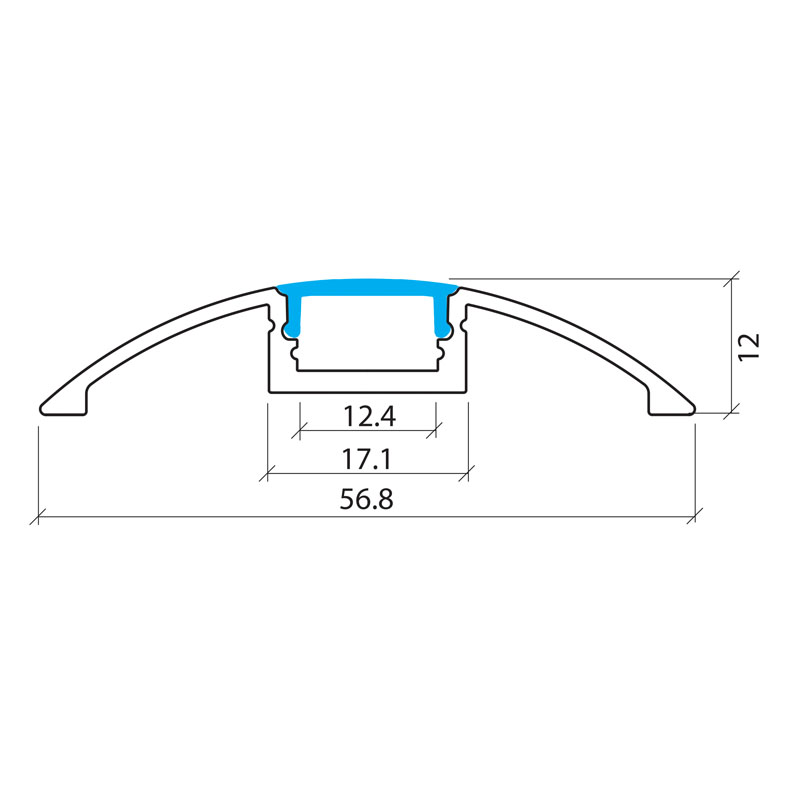

Dimension Drawing (mm)
Accessories
End Cap Without Cable Hole
Code: LEDCHAN180EC1
End Cap With Cable Hole
Code: LEDCHAN180EC2
Mounting Clips + Screws
Code: LEDCHANMC1
LEDCHAN180BL

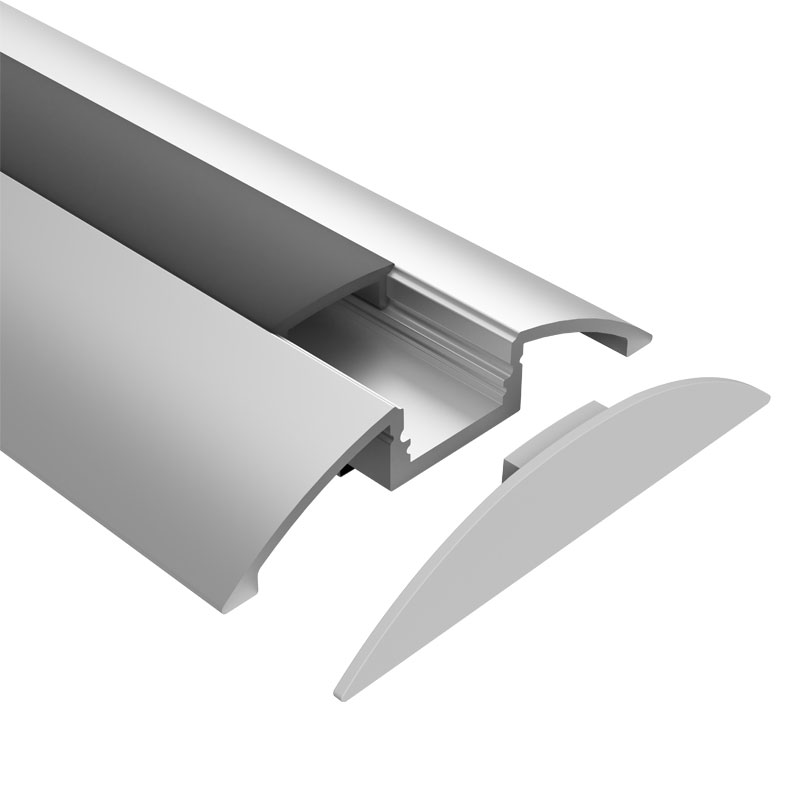

Shallow Surface Mounted 56.8mm x 12mm Aluminium Profile
Product Overview
LEDCHAN180 is a surface mounted aluminium profile designed to soften transitions and eliminate sharp edges, providing a clean, semi flush finish on cabinetry, shelving, and architectural surfaces.
Product Information
Profile Code
LEDCHAN180BL
Finish
SILVER
Diffuser
BLACK
Diffuser Material
ACRYLIC
Aluminium Grade
6063
Mounting Type
SURFACE
Stocked Length
4000mm or cut to size
