5 Year Warranty

Dimension Drawing (mm)

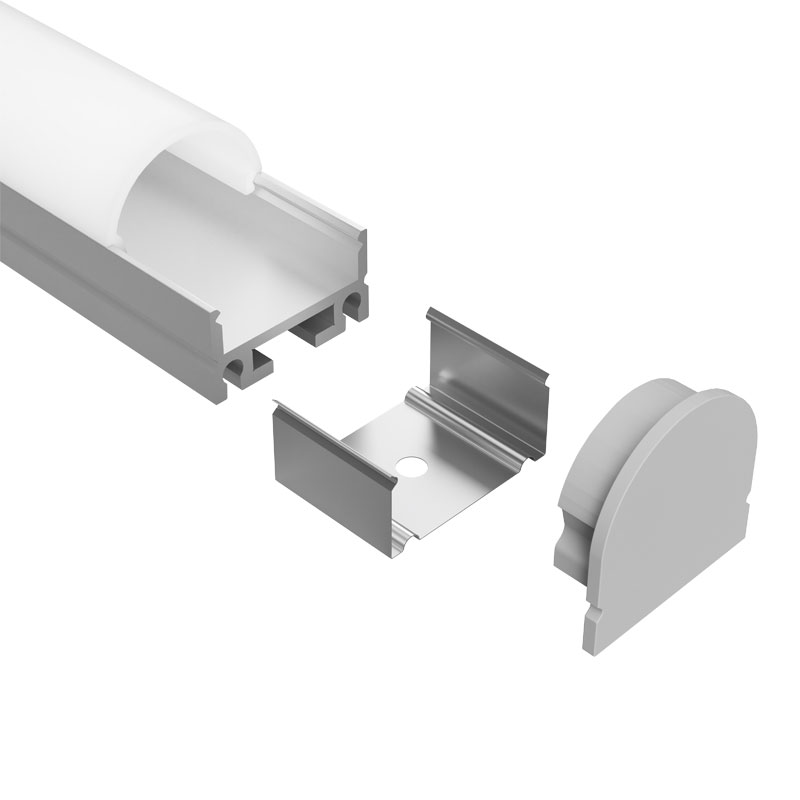

Accessories

End Cap Without Cable Hole Code: LEDCHAN210EC1
End Cap With Cable Hole Code: LEDCHAN210EC2
Mounting Clips + Screws Code: LEDCHANMC5

LEDCHAN210OL

Deep Surface Mounted 19.5mm x 19.5mm Aluminium Profile

Product Overview

LEDCHAN210 is a versatile profile that can be surface mounted or suspended, featuring a rounded diffuser ideal for mirror surrounds, cabinetry, and retail displays. When paired with LED strip lighting, it delivers smooth, uniform illumination while maintaining a clean, refined aesthetic. Its streamlined form allows it to integrate effortlessly into both functional and decorative applications.

Product Information

Profile Code LEDCHAN210OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
