5 Year Warranty

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN220EC1
End Cap With Cable Hole Code: LEDCHAN220EC2
Mounting Clips + Screws Code: LEDCHANMC5

LEDCHAN220DDOL

Profile 220 Surface p/m

Product Overview

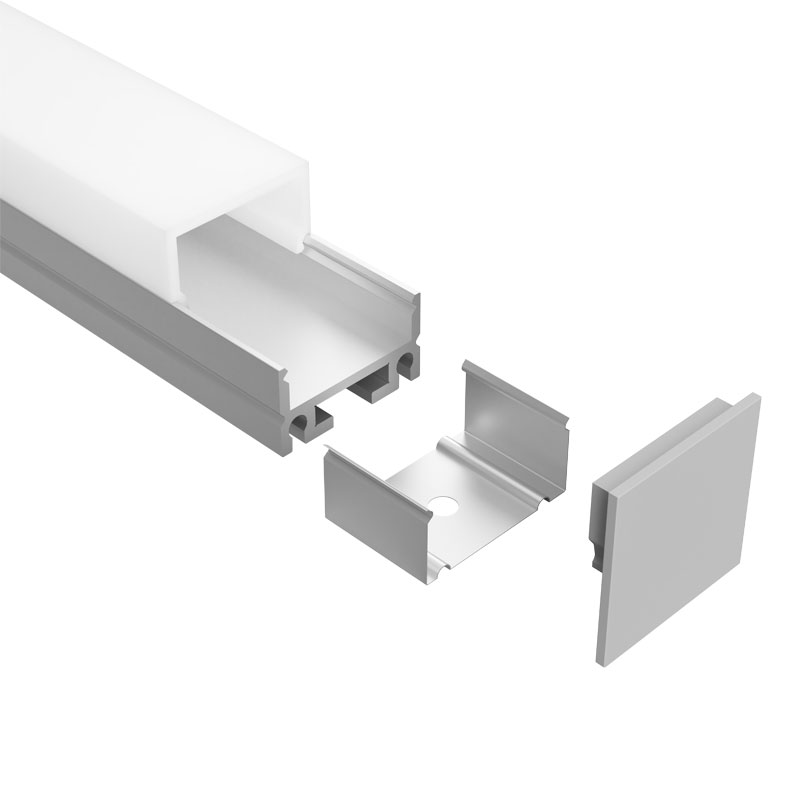

LEDCHAN220 is a surface or suspended mounted profile featuring a square diffuser that delivers a wide 120° beam angle, making it suitable for a range of general and accent lighting applications. When paired with the appropriate LED strip, it provides smooth, even illumination while maintaining a clean, modern aesthetic. Its simple, functional form allows it to integrate seamlessly into cabinetry, retail displays, and architectural details.

Product Information

Profile Code LEDCHAN220DDOL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
