5 Year Warranty

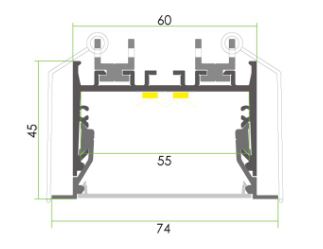

Dimension Drawing (mm)

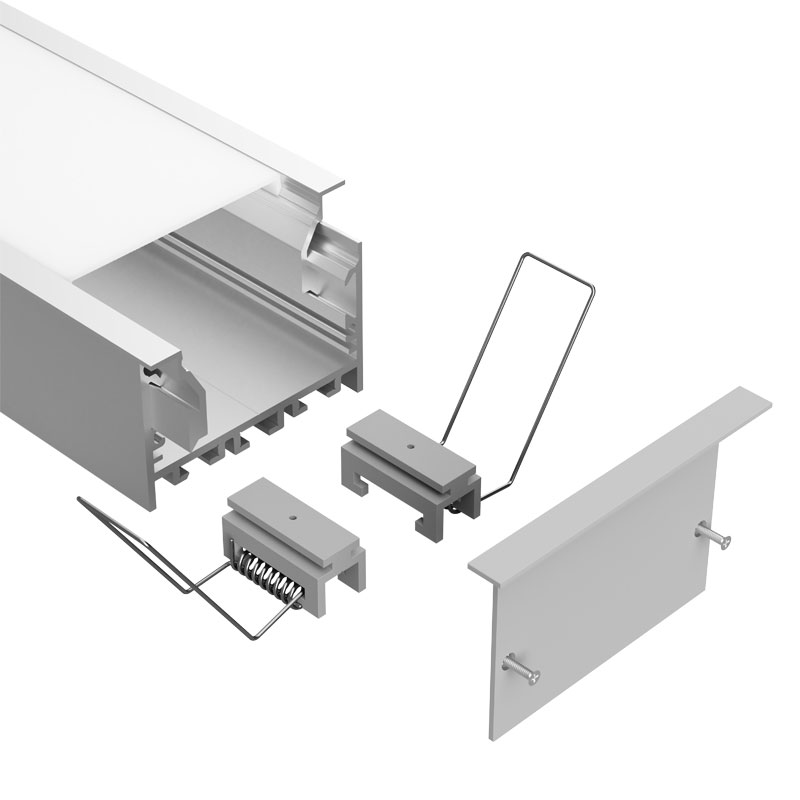

Accessories

End Cap Without Cable Hole Code: LEDCHAN280EC1
End Cap With Cable Hole Code: LEDCHAN280EC2

LEDCHAN280OL

Large Recessed 73.8mm x 45mm Aluminium Profile

Product Overview

LEDCHAN280 is a large recessed profile with a flanged edge, designed for general applications that require high output LED strips. Its wide internal cavity is optimised for dual row configurations, delivering strong, uniform illumination suitable for commercial and architectural environments. The substantial profile design supports excellent thermal performance while maintaining a clean, integrated aesthetic in ceilings.

Product Information

Profile Code LEDCHAN280OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
