5 Year Warranty

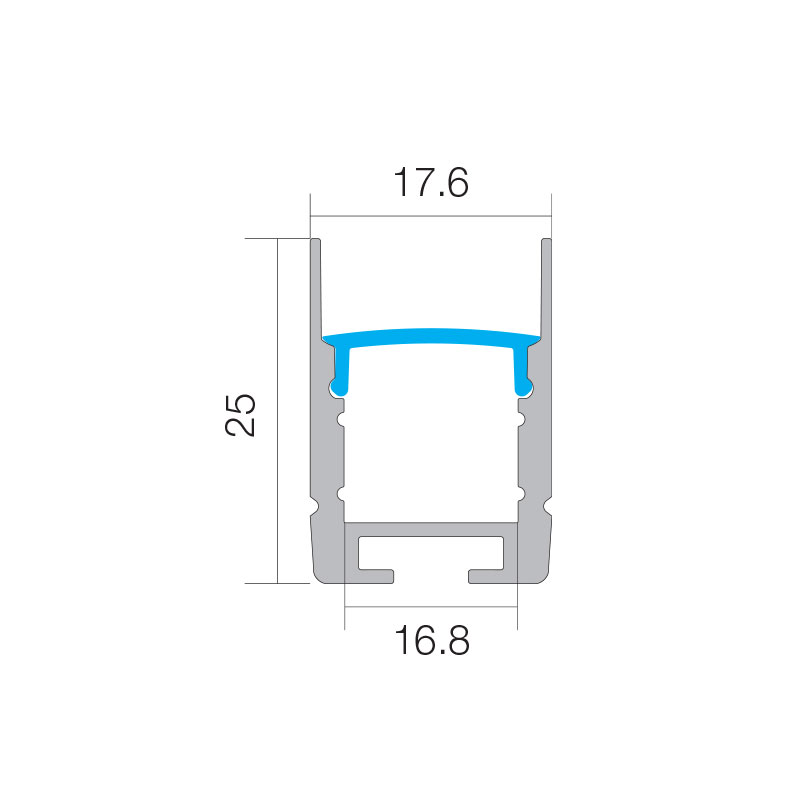

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN520EC1
End Cap With Cable Hole Code: LEDCHAN520EC2
Mounting Clips + Screws Code: LEDCHANMC1

LEDCHAN520OL

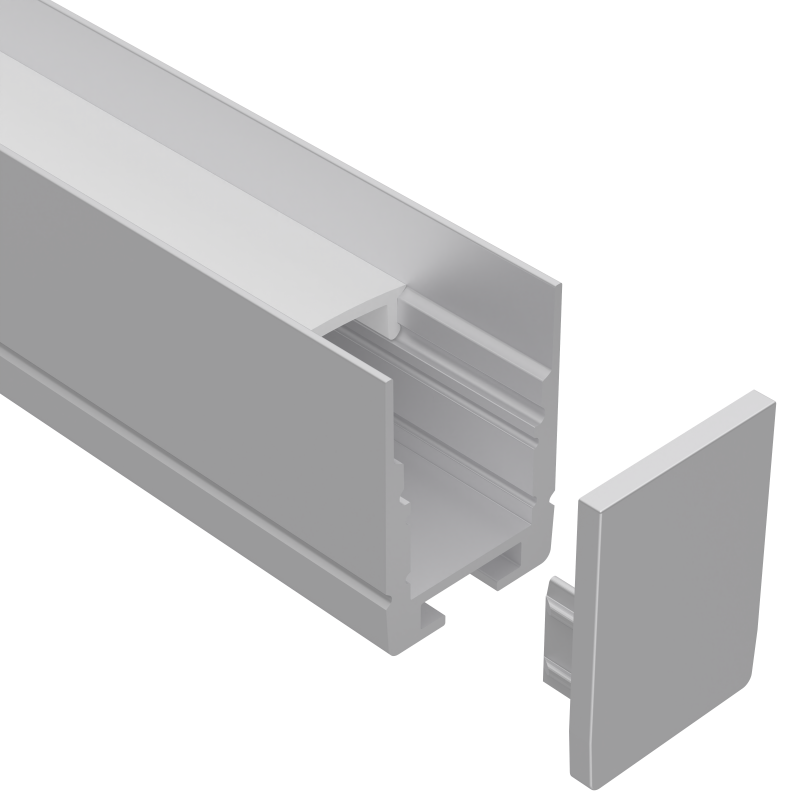

Deep Surface Mounted 17.6mm x 25mm Aluminium Profile

Product Overview

LEDCHAN520 is a versatile aluminium profile designed for both surface and suspended mounting, offering a clean, continuous line of light when paired with the appropriate LED strips. Its opal diffuser provides uniform illumination while maintaining a sleek architectural appearance. LEDCHAN520 integrates seamlessly into modern interior environments, making it ideal for offices, meeting rooms, hotels, schools, and showroom applications.

Product Information

Profile Code LEDCHAN520OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE/SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
