5 Year Warranty

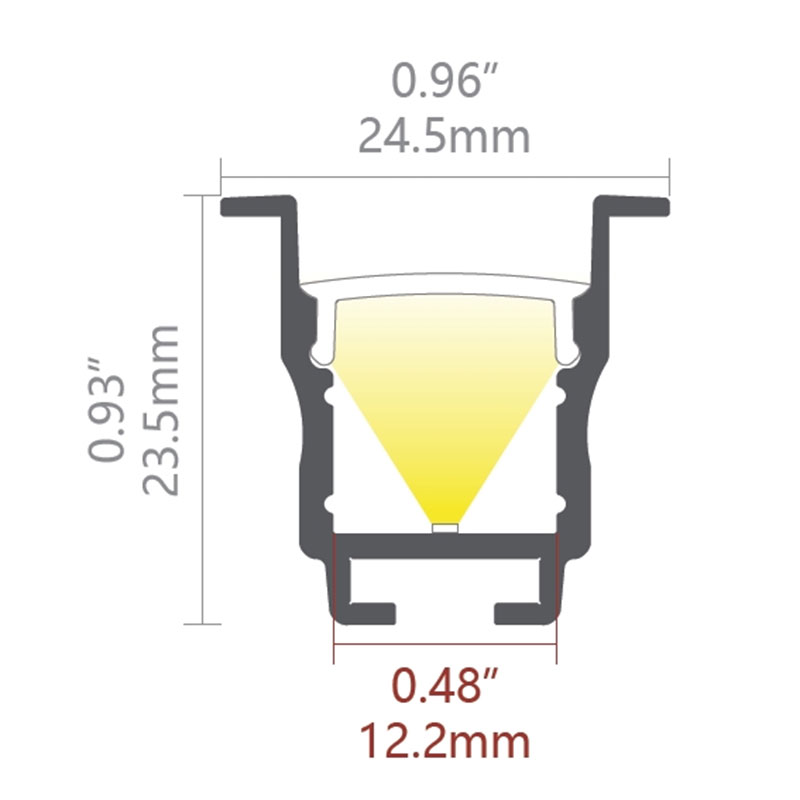

Dimension Drawing (mm)

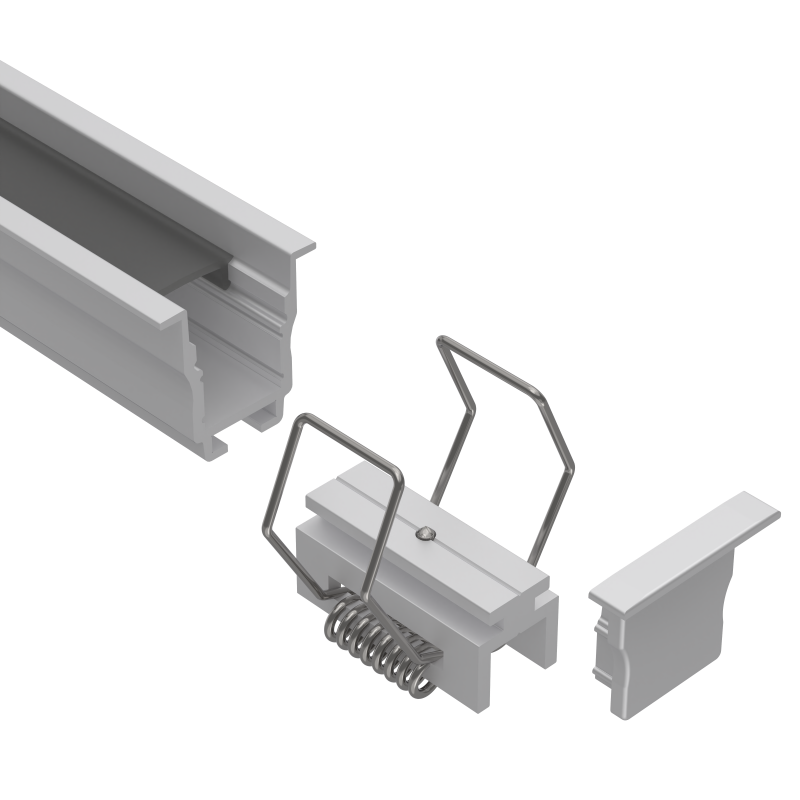

Accessories

End Cap Without Cable Hole Code: LEDCHAN530EC1
End Cap With Cable Hole Code: LEDCHAN530EC2

LEDCHAN530BL

Deep Recessed 24.5mm x 23.5mm Aluminium Profile

Product Overview

LEDCHAN530 is a recessed aluminium profile designed for recessed installation using spring clips, allowing for fast and secure mounting into pre cut ceiling or wall slots. When paired with compatible LED strips, it delivers a smooth, continuous line of light with a refined architectural finish. The opal diffuser ensures uniform illumination while minimising glare, making LEDCHAN530 ideal for offices, meeting rooms, hotels, schools, and showroom applications.

Product Information

Profile Code LEDCHAN530BL
Finish SILVER
Diffuser BLACK
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
