5 Year Warranty

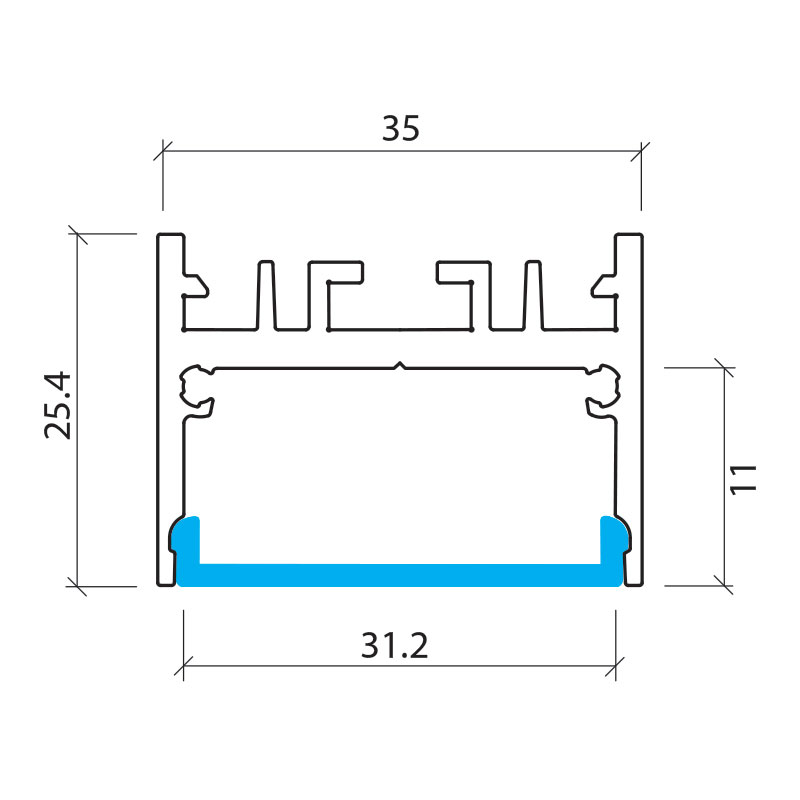

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN590EC1
End Cap With Cable Hole Code: LEDCHAN590EC2
Mounting Clips + Screws Code: LEDCHANMC2

LEDCHAN590OL

Deep Surface/Suspended 35mm x 25.4mm Aluminium Profile

Product Overview

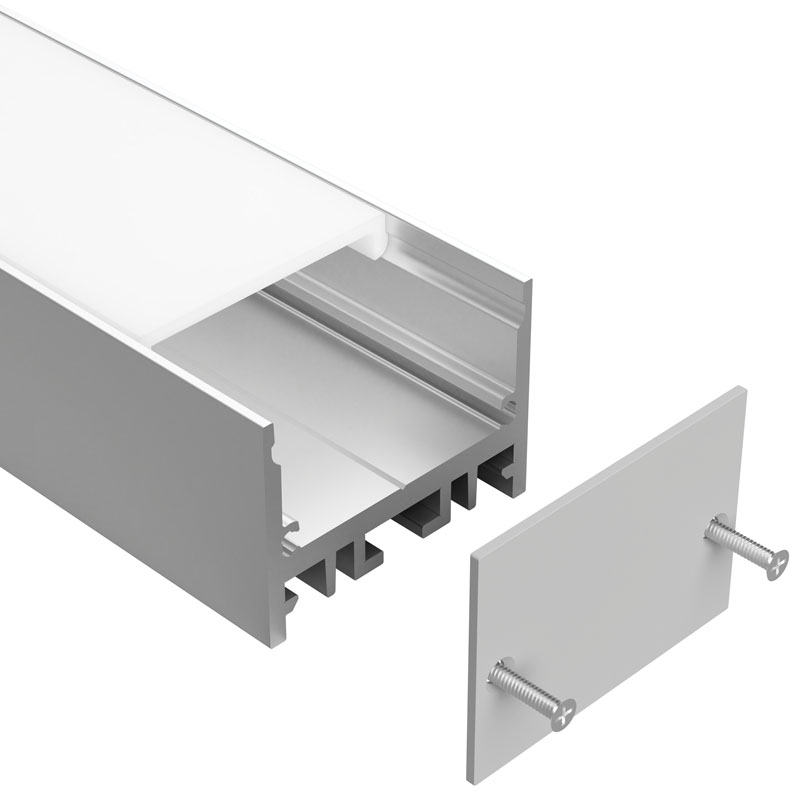

LEDCHAN590 is a robust aluminium profile designed for surface mounting or suspended pendant applications, offering both flexibility and strong visual presence. Its shallow LED mounting position delivers a wide, even light distribution, while the substantial aluminium provides excellent heat dissipation, making it especially well suited for coves and pelmets when used with modern high power LED strips.

Product Information

Profile Code LEDCHAN590OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE/SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
