5 Year Warranty

Dimension Drawing (mm)

W39.7mm x H83mm

Accessories

End Cap Without Cable Hole Code: LEDCHAN630EC1
Mounting Clips + Screws Code: LEDCHANWB

LEDCHAN630OL

Profile 630 Wall

Product Overview

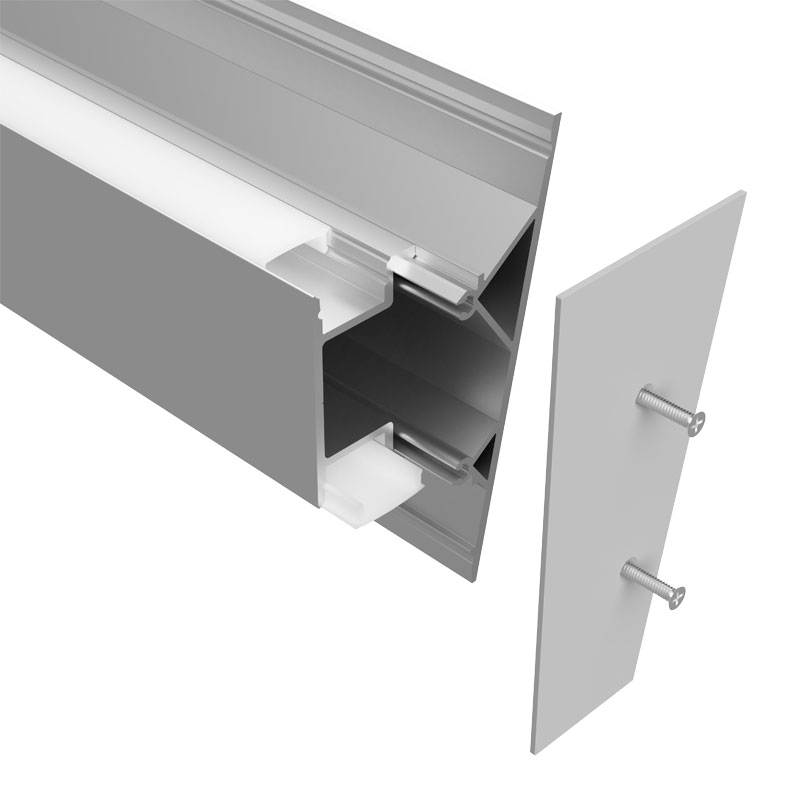

LEDCHAN630 is a slim linear wall mounted direct/indirect aluminium profile designed to accommodate both high and low output LED strips. LEDCHAN630 is ideal for creating soft indirect wall lighting in architectural spaces. The profile uses a remote driver and supports dimming options for added lighting control. Its two part construction allows for easy installation: the extruded aluminium mounting bracket is first fixed to the wall, the face section is then snapped into place, and the end caps are secured to complete a clean, refined finish.

Product Information

Profile Code LEDCHAN630OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE
Stocked Length 4000mm or cut to size
