5 Year Warranty

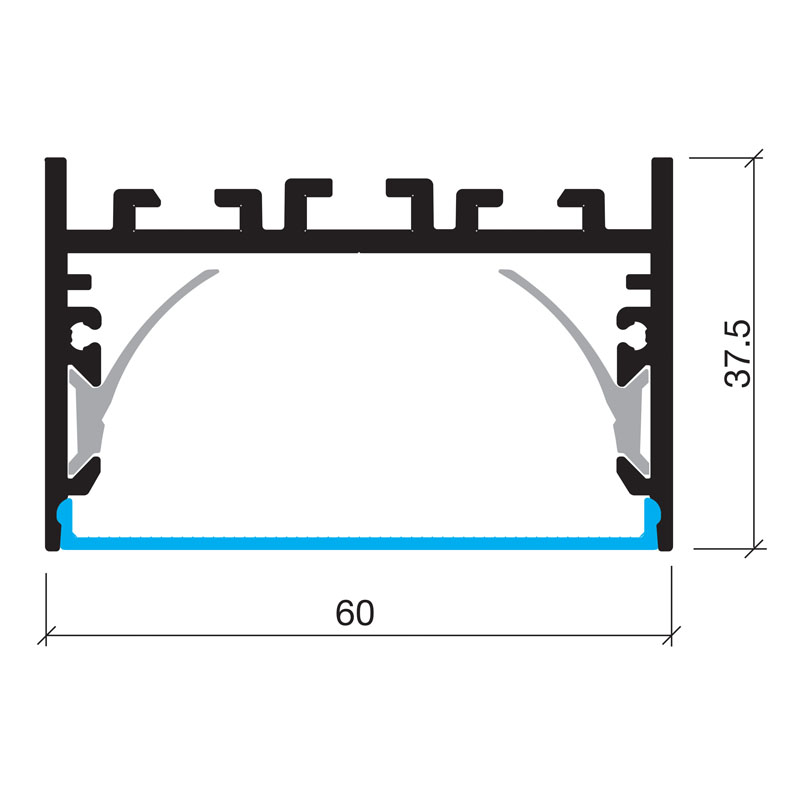

Dimension Drawing (mm)

Accessories

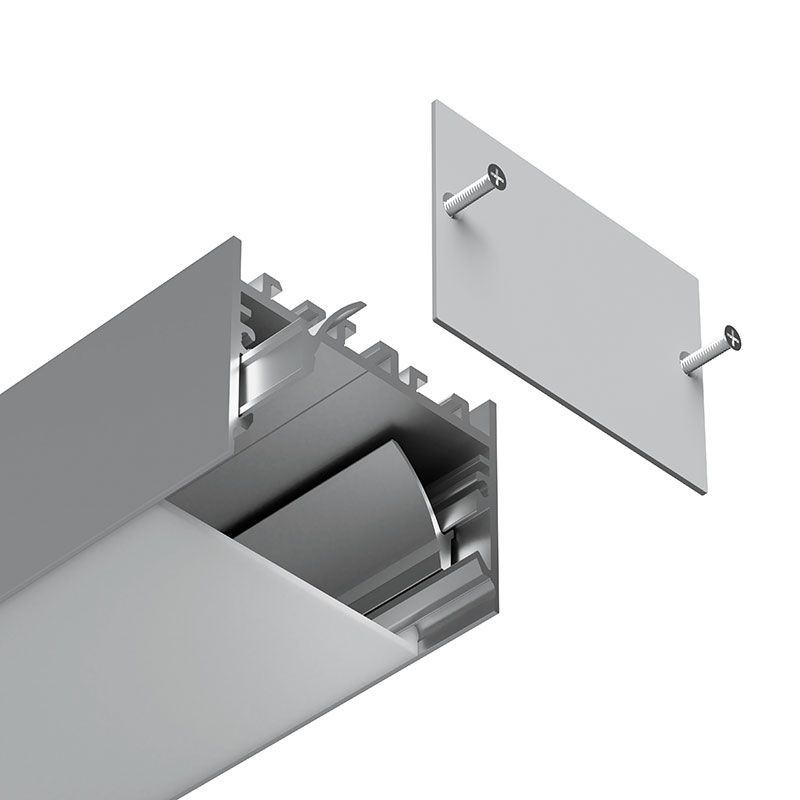

End Cap Without Cable Hole Code: LEDCHAN670EC1
End Cap With Cable Hole Code: LEDCHAN670EC2
Mounting Clips + Screws Code: LEDCHAN670MC

LEDCHAN670OL

Deep Surface/Suspended 60mm x 37.5mm Aluminium Profile

Product Overview

LEDCHAN670 is a large surface/suspended mounted profile designed for general applications that require high output LED strips. Its wide internal cavity is optimised for dual row configurations, or for a single row when used with reflectors that fit neatly into the side grooves to enhance light distribution.

Product Information

Profile Code LEDCHAN670OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
