5 Year Warranty

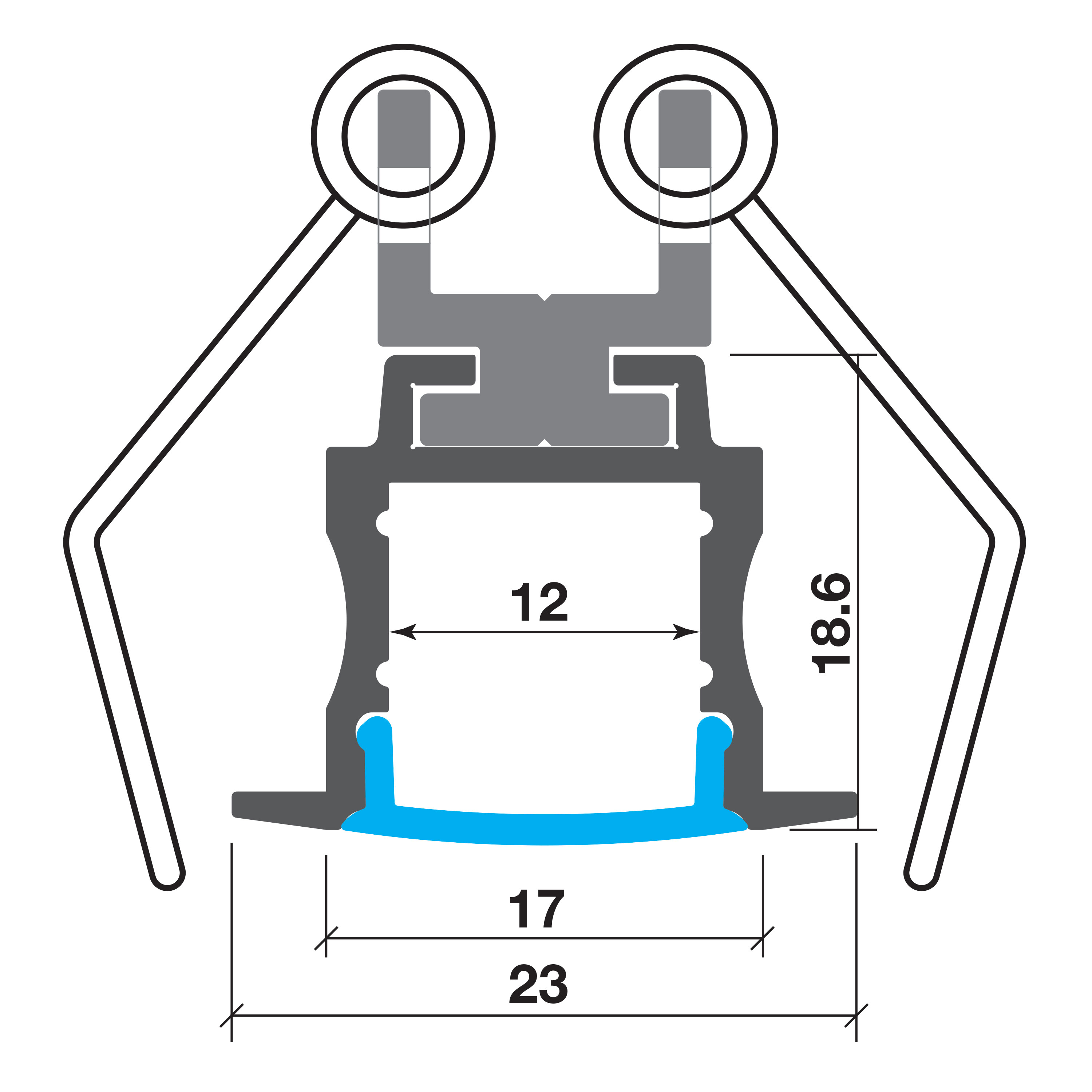

Dimension Drawing (mm)

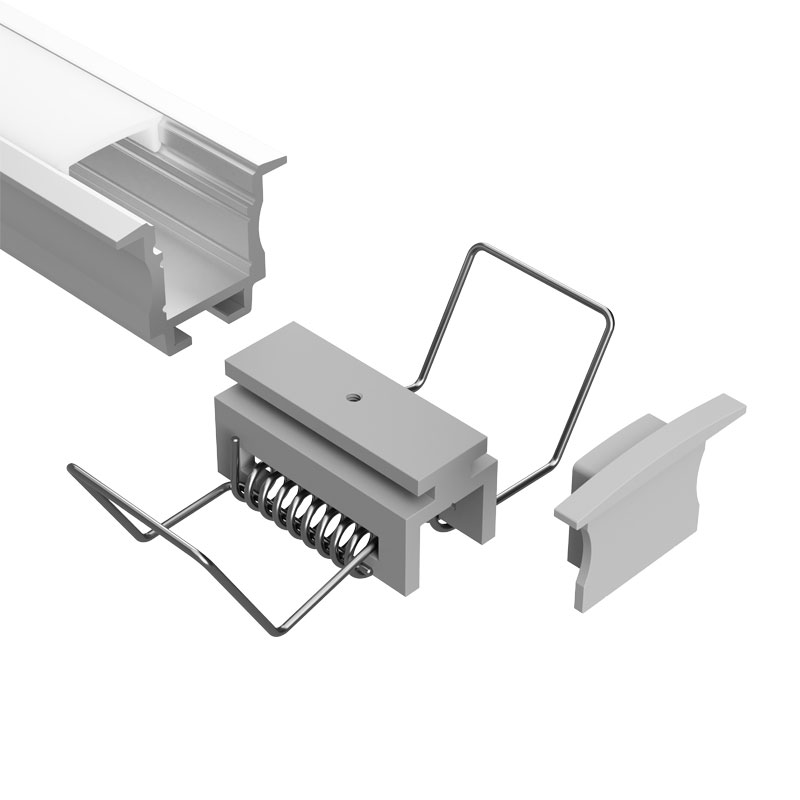

Accessories

End Cap Without Cable Hole Code: LEDCHAN730EC1
End Cap With Cable Hole Code: LEDCHAN730EC2

LEDCHAN730OL

Deep Recessed 23mm x 29mm Aluminium Profile

Product Overview

LEDCHAN730 Recessed profile is medium depth and designed to deliver smooth, dot-free illumination when paired with the appropriate LED strip. This cost effective profile features a PMMA acrylic diffuser and installs easily with counter sunk screws through the base or spring clips.

Product Information

Profile Code LEDCHAN730OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
