5 Year Warranty

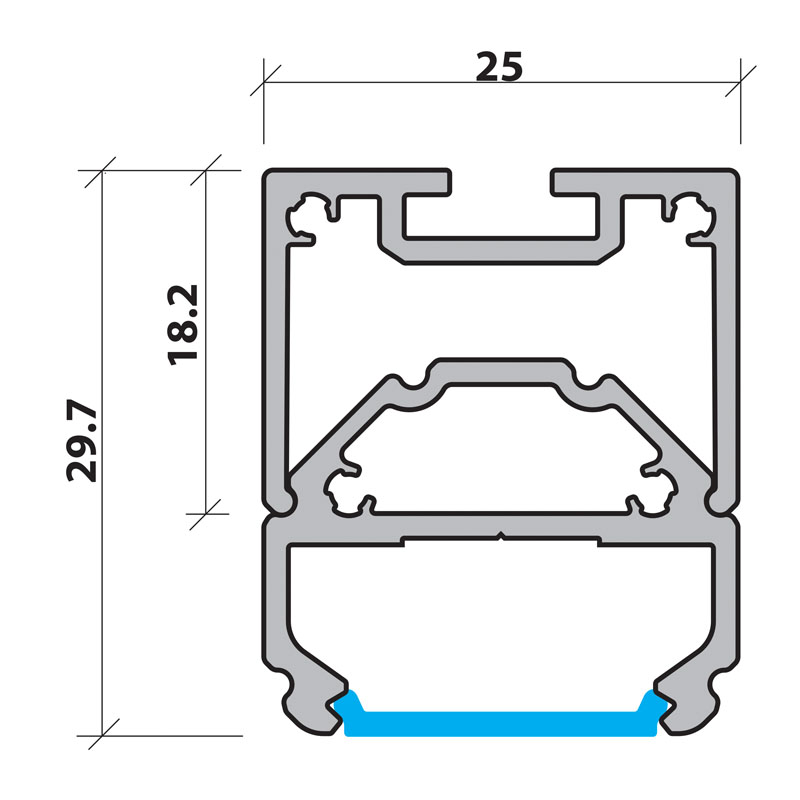

Dimension Drawing (mm)

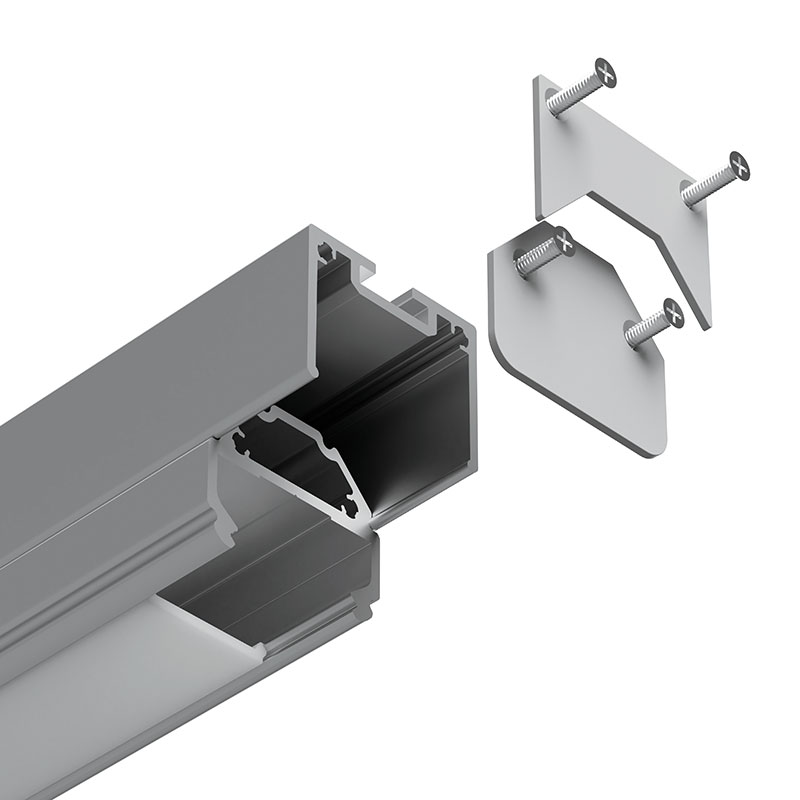

Accessories

End Cap Without Cable Hole Code: LEDCHAN750EC1

LEDCHAN750OL

Profile 750 Surface p/m

Product Overview

LEDCHAN750 is a two part aluminium profile designed for surface mounting or suspension. This design allows for a simple surface installation by screwing through the base of the profile and snapping the secondary profile into place. The secondary profile can either snap in vertically for downward lighting or at a 45° for wall washing. Product is stocked in Silver Anodised and cannot be powder coated.

Product Information

Profile Code LEDCHAN750OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
