5 Year Warranty

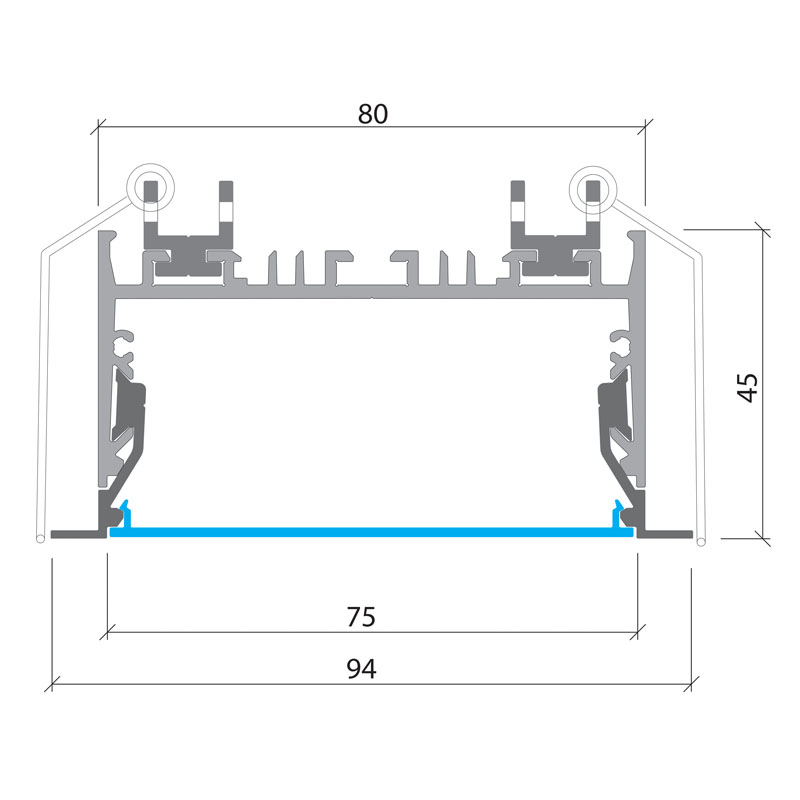

Dimension Drawing (mm)

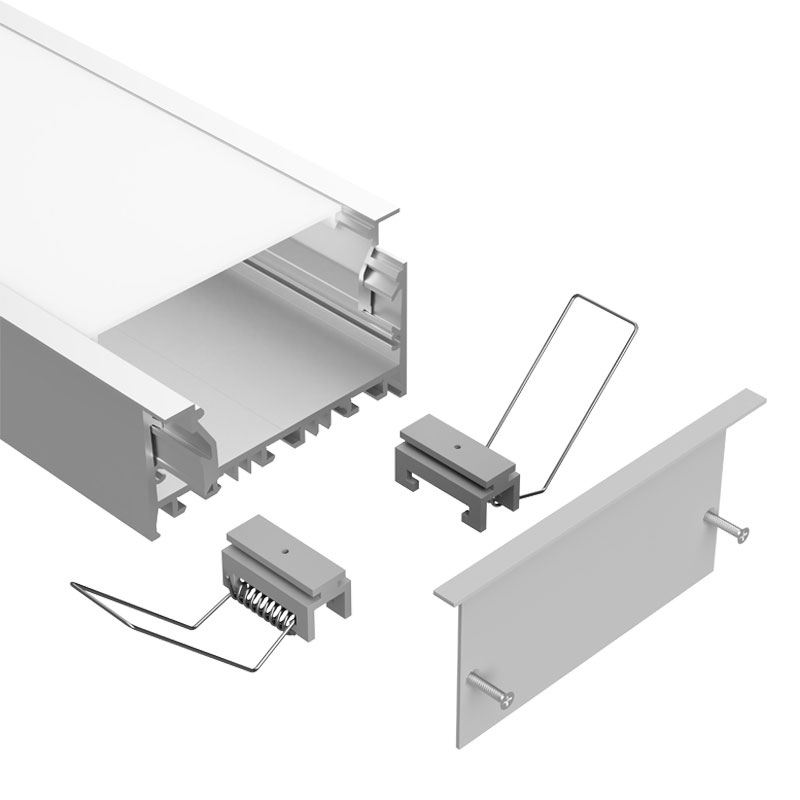

Accessories

End Cap Without Cable Hole Code: LEDCHAN760EC1
End Cap With Cable Hole Code: LEDCHAN760EC2

LEDCHAN760OL

Deep Recessed 94mm x 45mm Aluminium Profile

Product Overview

LEDCHAN760 is a large recessed profile with a flanged edge, designed for general applications that require high output LED strips. Its wide internal cavity is optimised for dual row configurations, delivering strong, uniform illumination suitable for commercial and architectural environments. The substantial profile design supports excellent thermal performance while maintaining a clean, integrated aesthetic in ceilings.

Product Information

Profile Code LEDCHAN760OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
