5 Year Warranty

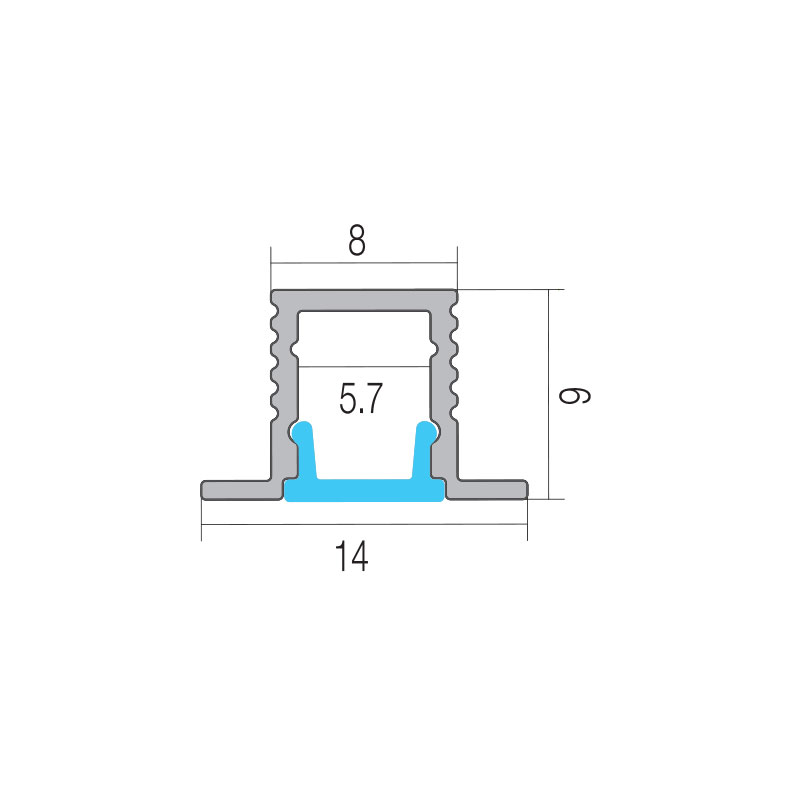

Dimension Drawing (mm)

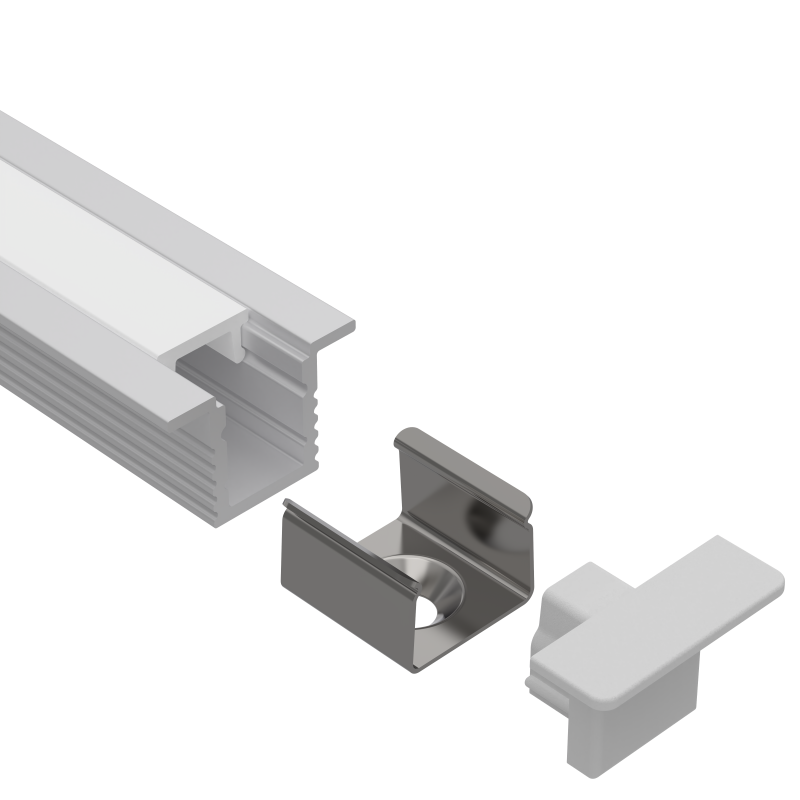

Accessories

End Cap Without Cable Hole Code: LEDCHAN780EC1
End Cap With Cable Hole Code: LEDCHAN780EC2

LEDCHAN780OL

Micro Recessed 14mm x 9mm Aluminium Profile

Product Overview

LEDCHAN780 Micro Profile is a compact aluminium profile designed for discreet recessed installation where minimal visual impact is required. Engineered to integrate seamlessly into joinery, cabinetry, and architectural details, it creates a clean, precise line of light with a refined finish. Compatible with our Micro strip range, this profile is ideal for subtle accent lighting and detailed applications where controlled illumination and a low profile solution are essential.

Product Information

Profile Code LEDCHAN780OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type RECESSED
Stocked Length 2500mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
