5 Year Warranty

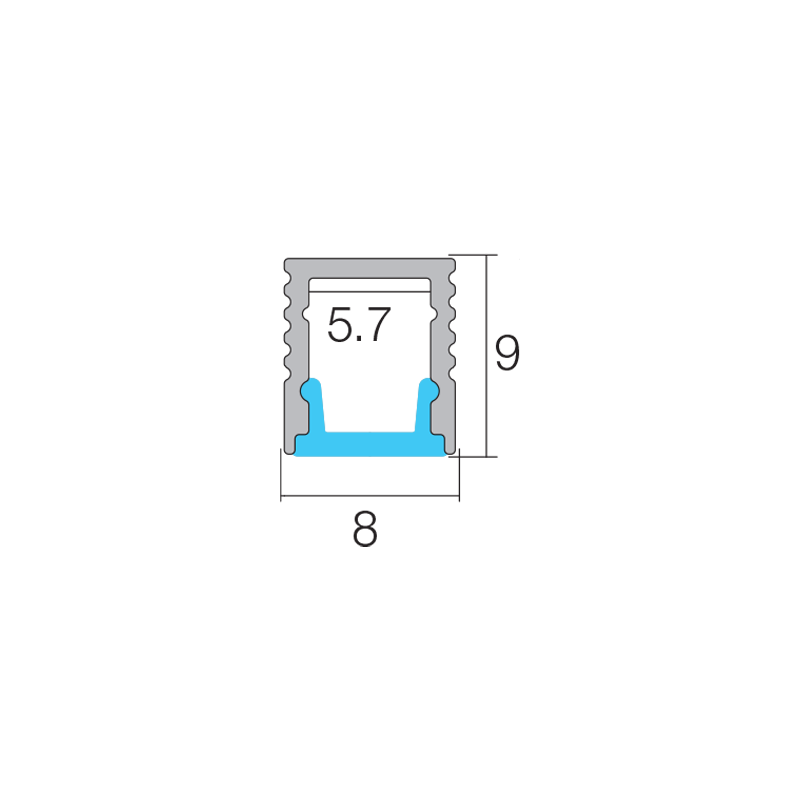

Dimension Drawing (mm)

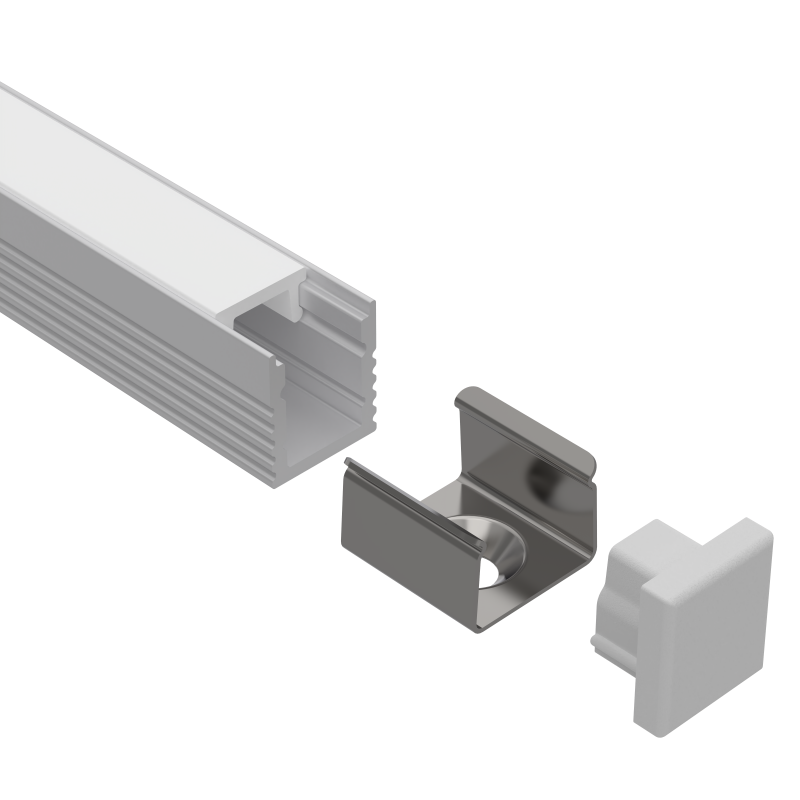

Accessories

End Cap Without Cable Hole Code: LEDCHAN790EC1
End Cap With Cable Hole Code: LEDCHAN790EC2
Mounting Clips + Screws Code: LEDCHANMC9

LEDCHAN790OL

Micro Surface Mounted 8mm x 9mm Aluminium Profile

Product Overview

LEDCHAN790 Micro Profile is a compact aluminium profile designed for discreet surface mounted installation where minimal visual impact is required. Engineered to integrate seamlessly onto joinery, cabinetry, shelving, and architectural details, it delivers a clean, precise line of light with a refined, low profile finish. Compatible with our Micro LED strip range, LEDCHAN790 is ideal for subtle accent lighting and detailed applications where controlled illumination and a slim surface mounted solution are essential.

Product Information

Profile Code LEDCHAN790OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063
Mounting Type SURFACE
Stocked Length 2500mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
