5 Year Warranty

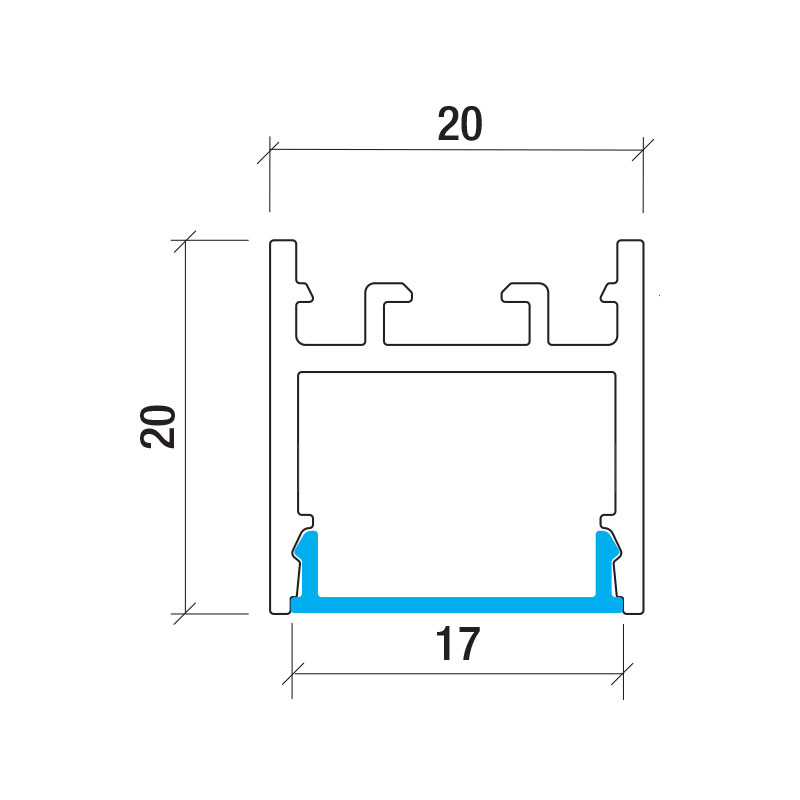

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN820BKEC1
Mounting Clips + Screws Code: LEDCHANMC8

LEDCHAN820BLBK

Deep Surface Mounted 20mm x 20mm Aluminium Profile

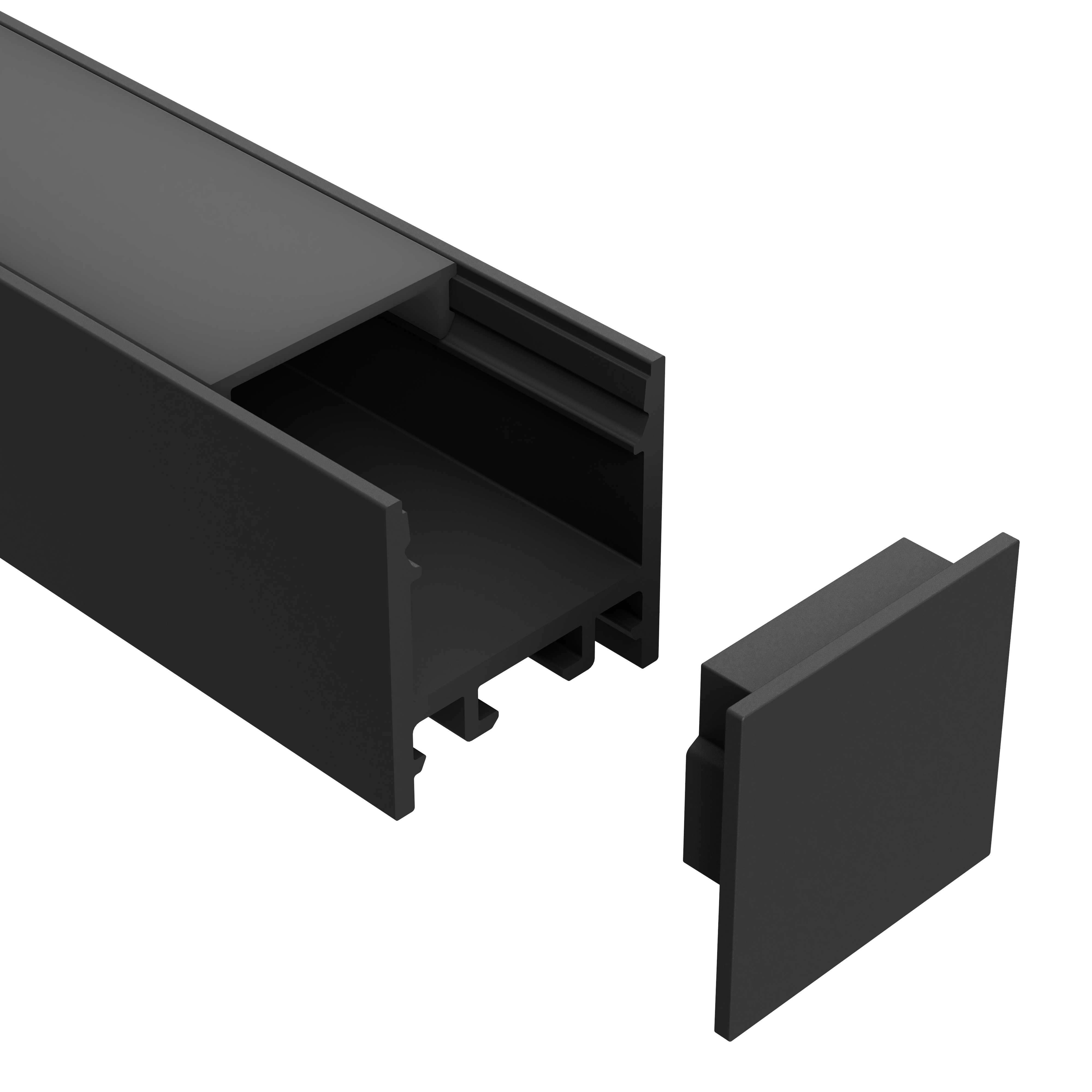

Product Overview

LEDCHAN820 is a square aluminium profile designed for surface mounting, featuring a flush diffuser for a clean, contemporary finish. Its compact, architectural form delivers a neat line of light that integrates effortlessly into modern interiors. Ideal for applications such as under cabinet lighting, mirror surrounds, and retail displays.

Product Information

Profile Code LEDCHAN820BLBK
Finish BLACK
Diffuser BLACK
Diffuser Material ACRYLIC
Aluminium Grade 6063-T5
Mounting Type SURFACE/SUSPENDED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
