5 Year Warranty

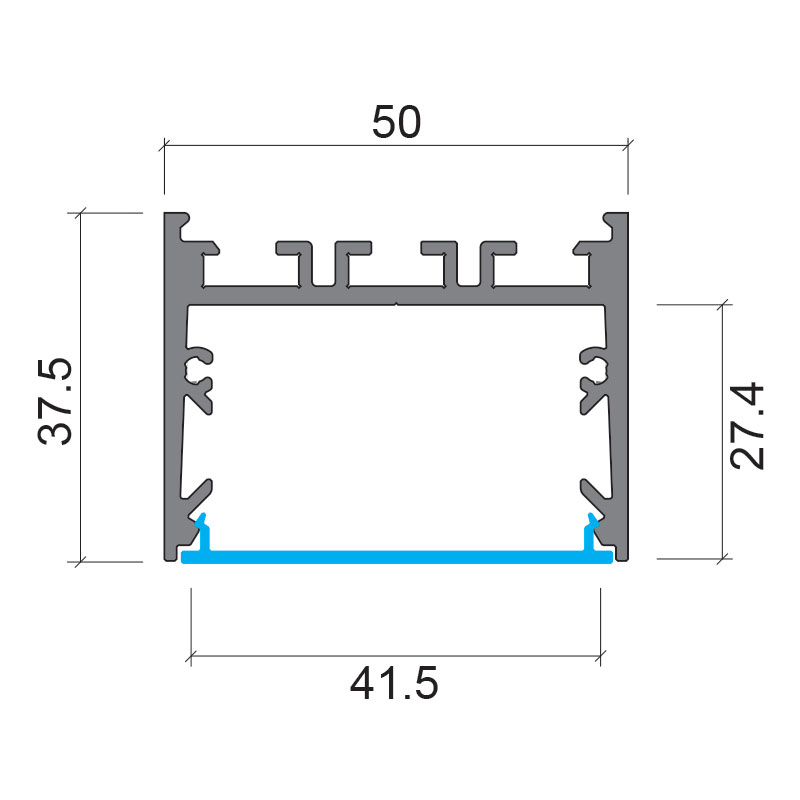

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN860EC1
End Cap With Cable Hole Code: LEDCHAN860EC2
Mounting Clips + Screws Code: LEDCHAN860MC

LEDCHAN860OL

Deep Surface Mounted 50mm x 37.5mm Aluminium Profile

Product Overview

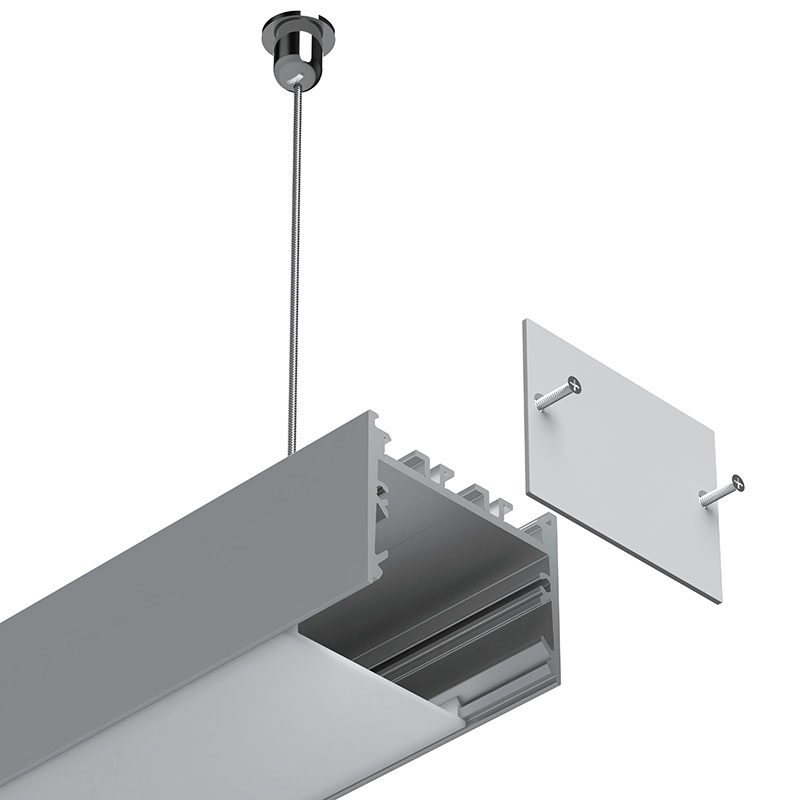

LEDCHAN860 is a large surface/suspended mounted profile designed for general applications that require high output LED strips. Its wide internal cavity is optimised for dual row configurations, or for a single row when used with reflectors that fit neatly into the side grooves to enhance light distribution.

Product Information

Profile Code LEDCHAN860OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063-T5
Mounting Type SURFACE, SUSPENDED
Stocked Length 4000mm or cut to size
