5 Year Warranty

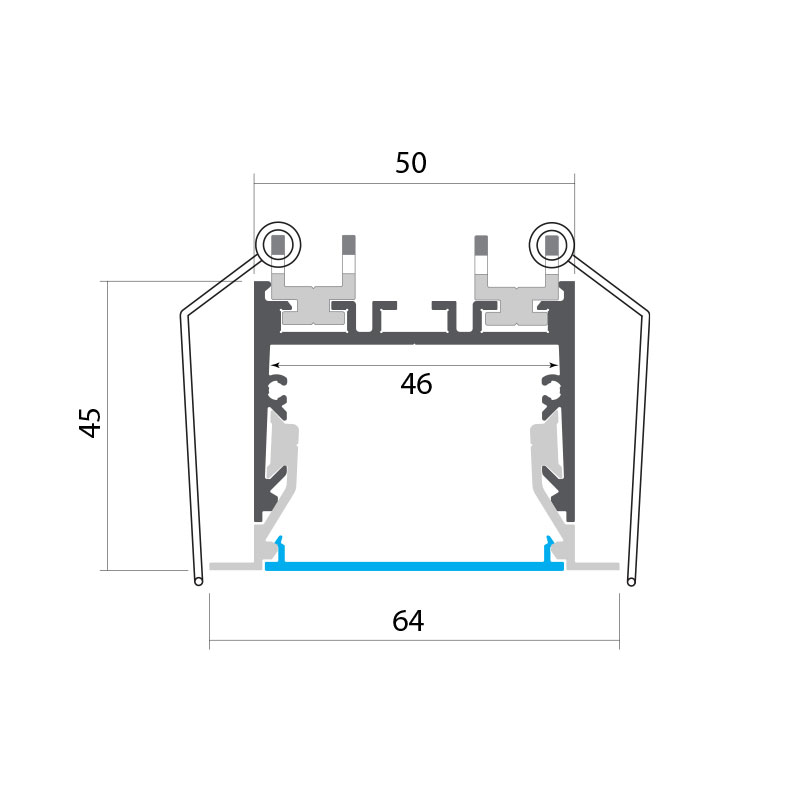

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN890EC1
End Cap With Cable Hole Code: LEDCHAN890EC2

LEDCHAN890OL

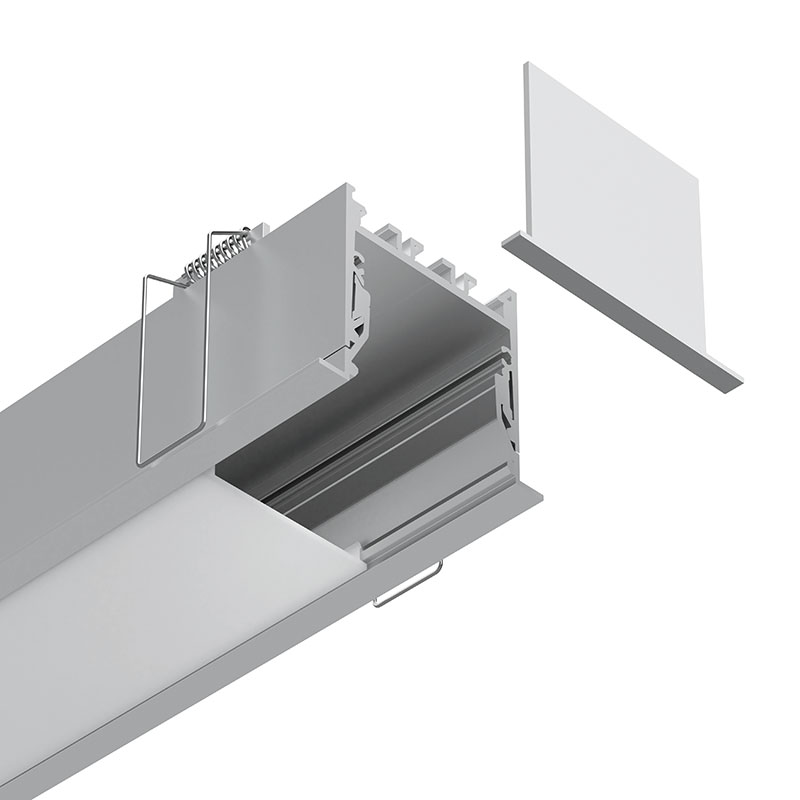

Deep Recessed 64mm x 45mm Aluminium Profile

Product Overview

LEDCHAN890 is a large recessed profile with a flanged edge, designed for general applications that require high output LED strips. Its wide internal cavity is optimised for dual row configurations, delivering strong, uniform illumination suitable for commercial and architectural environments. The substantial profile design supports excellent thermal performance while maintaining a clean, integrated aesthetic in ceilings.

Product Information

Profile Code LEDCHAN890OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063-T5
Mounting Type RECESSED
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
