5 Year Warranty

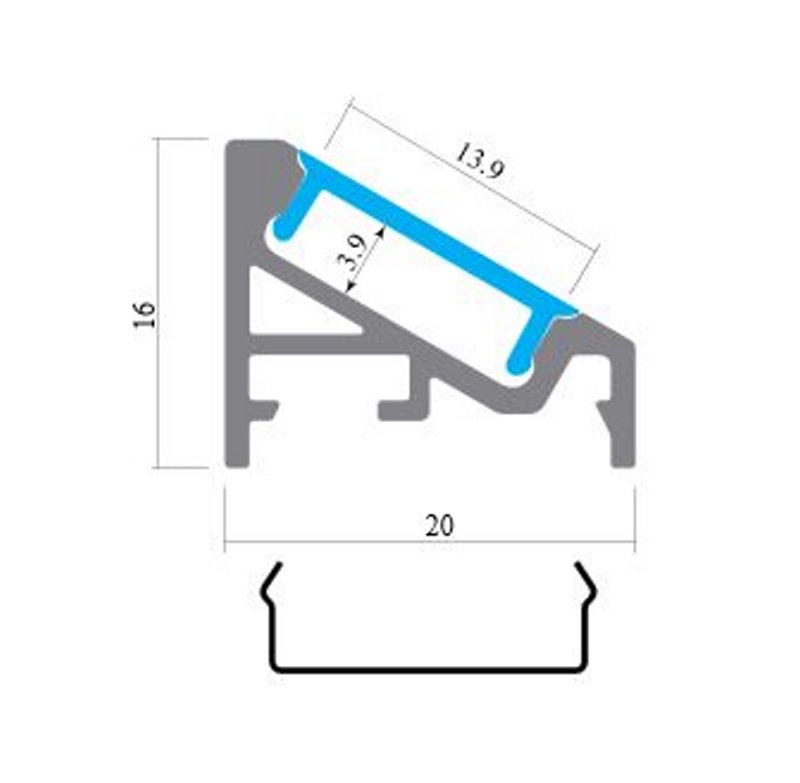

Dimension Drawing (mm)

Accessories

End Cap Without Cable Hole Code: LEDCHAN910EC1
End Cap With Cable Hole Code: LEDCHAN910EC2
Mounting Clips + Screws Code: LEDCHAN910MC

LEDCHAN910OL

Profile 910 Corner p/m

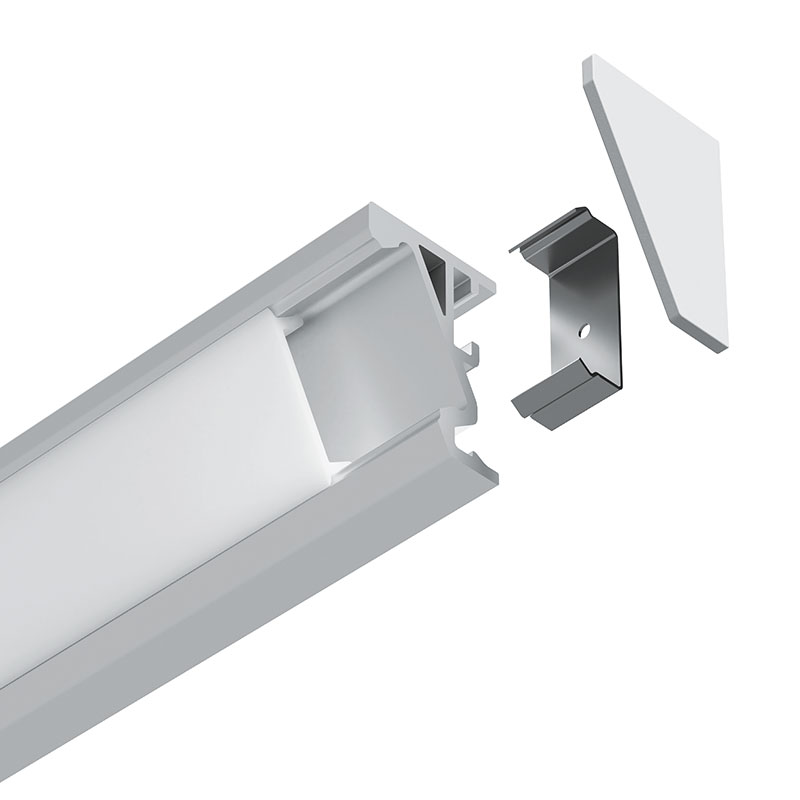

Product Overview

LEDCHAN910 is a versatile aluminium extrusion designed for surface or corner mounting, making it ideal for a wide range of detailed lighting applications. Its compact form allows it to integrate neatly into joinery and architectural features. Well suited for retail displays, kitchen and bathroom cabinetry, mirrors, and wardrobes, LEDCHAN910 is compatible with LED strips up to 12mm wide and 10W/m, delivering reliable performance in both decorative and functional lighting installations.

Product Information

Profile Code LEDCHAN910OL
Finish SILVER
Diffuser OPAL
Diffuser Material ACRYLIC
Aluminium Grade 6063-T5
Mounting Type SURFACE
Stocked Length 4000mm or cut to size
09 820 0004 | sales@tasklighting.co.nz | tasklighting.co.nz

While every effort has been made to ensure accuracy, product specifications may vary. Task Lighting reserves the right to update or modify product details without notice.
