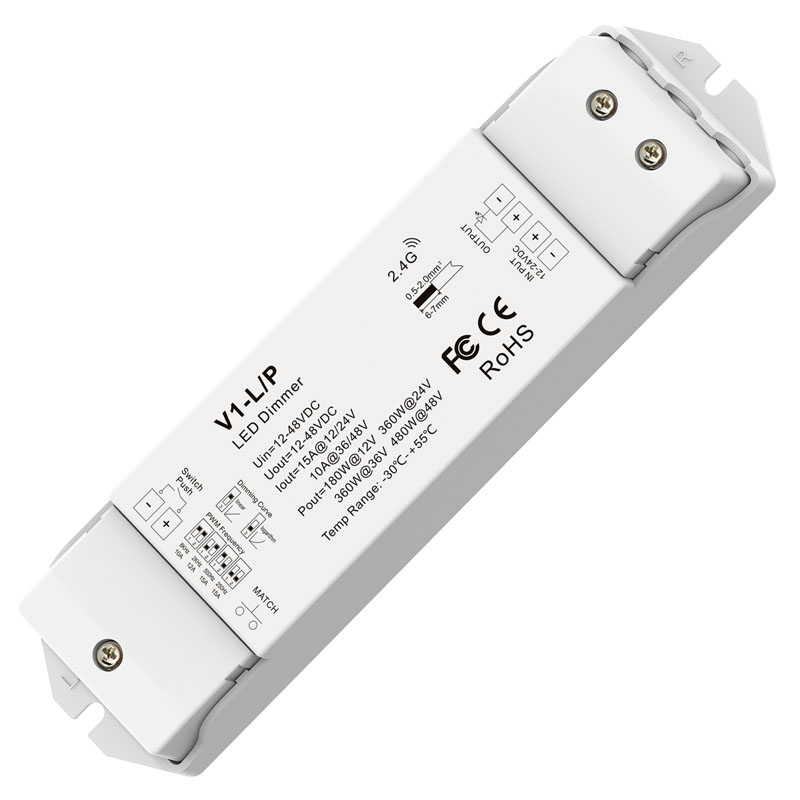

LCDMSD-V1-L
Single Colour Dimming Controller
12-48VDC
0-100% smooth dimming without flashing
Compatible with 2.4G single or multiple zone dimming remotes
One RF controller accepts up to 10 remote controls
Auto-transmitting function: Controller can automatically transmit a signal to another controller within 30m
control distance (unobstructed)
Ability to sync onto multiple controllers
Ability to connect with an external push switch to achieve on/off and 0-100% dimming function
Logarithmic or linear dimming curve selectable
PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable
Over-heat / Over-load / Short circuit protection
Compatible with 2.4G Remotes click here for Remotes
Code: | LCDMSD-V1-L |
---|---|
Voltage: | 12-48VDC |
Output Curent: | 15A@12/24V 10A@36/48V |
Size: | L175 x W45 x H27 |
IP rating: | IP20 |
