Led Driver 500mA 1-20Watt 2-40VDC IP20

Enquire
Auckland: 1 EACH | Christchurch: 0 EACH

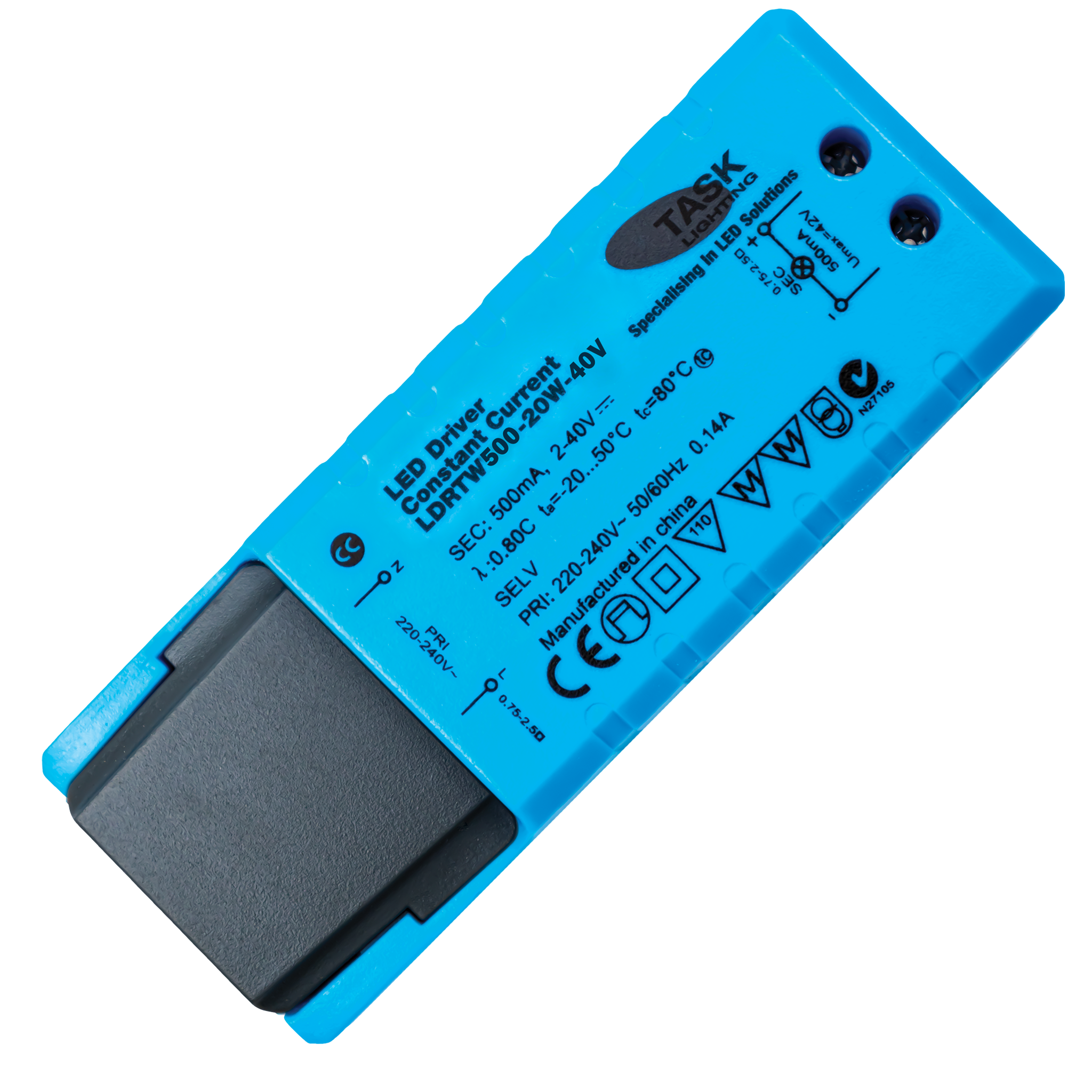

The LDRTW500-20W-40V is a dependable IP20 rated constant current LED driver designed for efficient indoor lighting installations. Delivering a stable 500mA output with a wide voltage range, it supports LED loads from 1 to 20 watts, making it suitable for a broad range of constant current luminaires. For fast and secure installation, the driver features large loop through terminals for TPS cabling and a quick snap down 230V terminal cover for added safety. It is suitable for indoor use, or outdoor applications when housed within a compliant enclosure. Backed by a 5 year warranty, the LDRTW500-20W-40V offers long term reliability. Please note, this model is not phase dimmable.

Product Info

Code LDRTW500-20W-40V
Voltage 220-240V
IP Rating 20
PDF View Spec Sheet

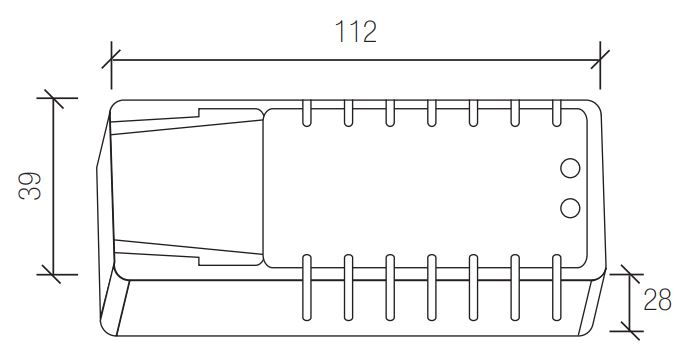

Dimension Drawing
