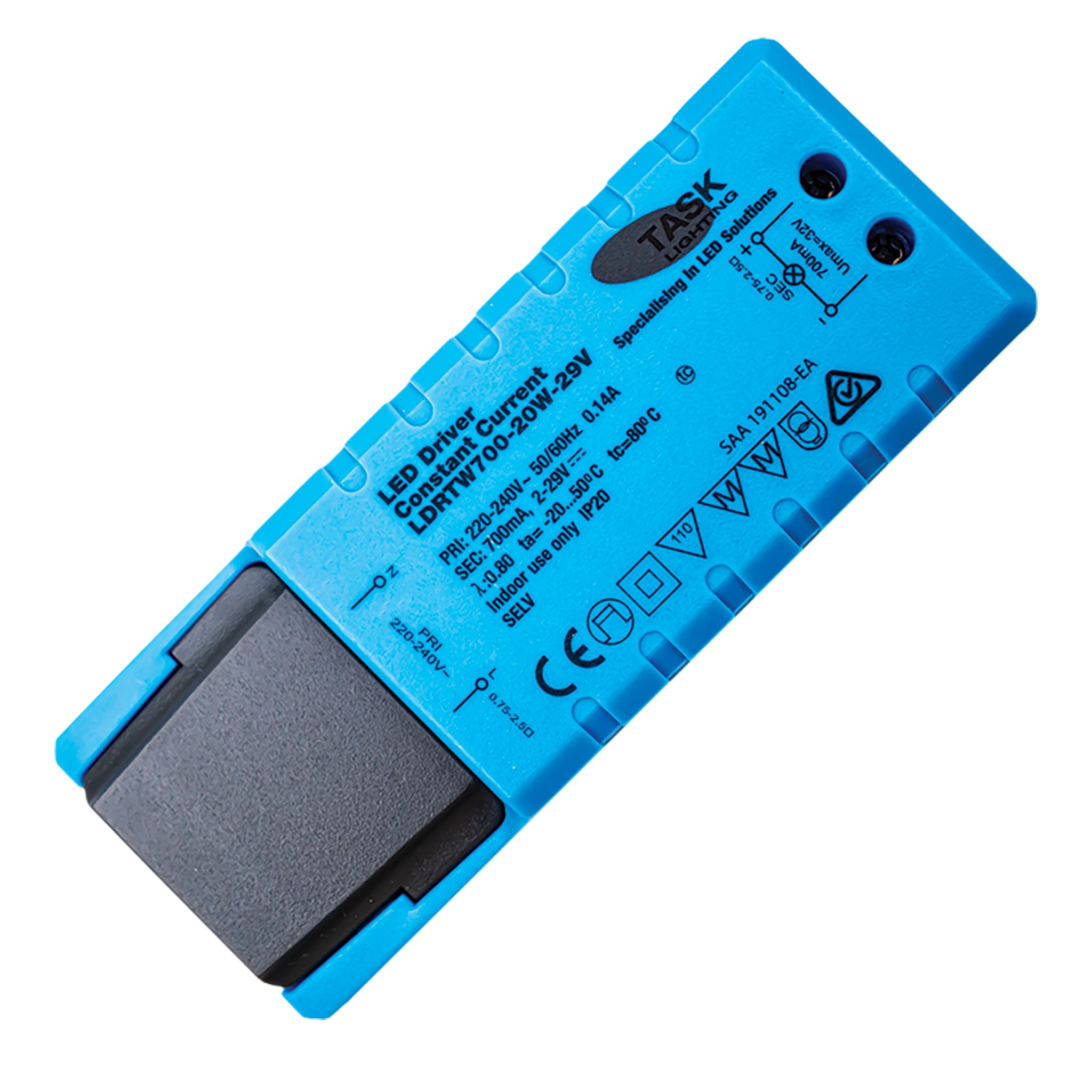

Led Driver 700mA 1-20Watt 2-29VDC IP20
The LDRTW700-20W-29V is a robust IP20 rated constant current LED driver designed for reliable indoor lighting applications. Delivering a stable 700mA output with a wide voltage range, it supports LED loads from 1 to 20 watts, making it suitable for a variety of constant current luminaires. Engineered for easy installation, the driver features large loop through terminals for TPS cabling and a fast snap down 230V terminal cover for added safety and convenience. Suitable for indoor use, or exterior applications when enclosed in a compliant housing, this driver is backed by a 5 year warranty for dependable long term operation. Please note that this model is not phase dimmable.
Product Info

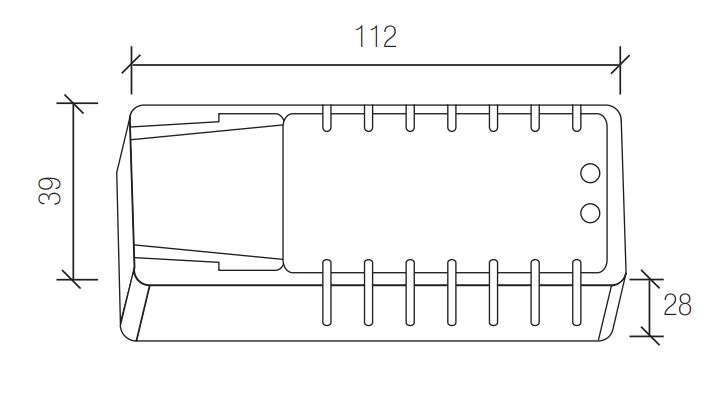

Dimension Drawing
