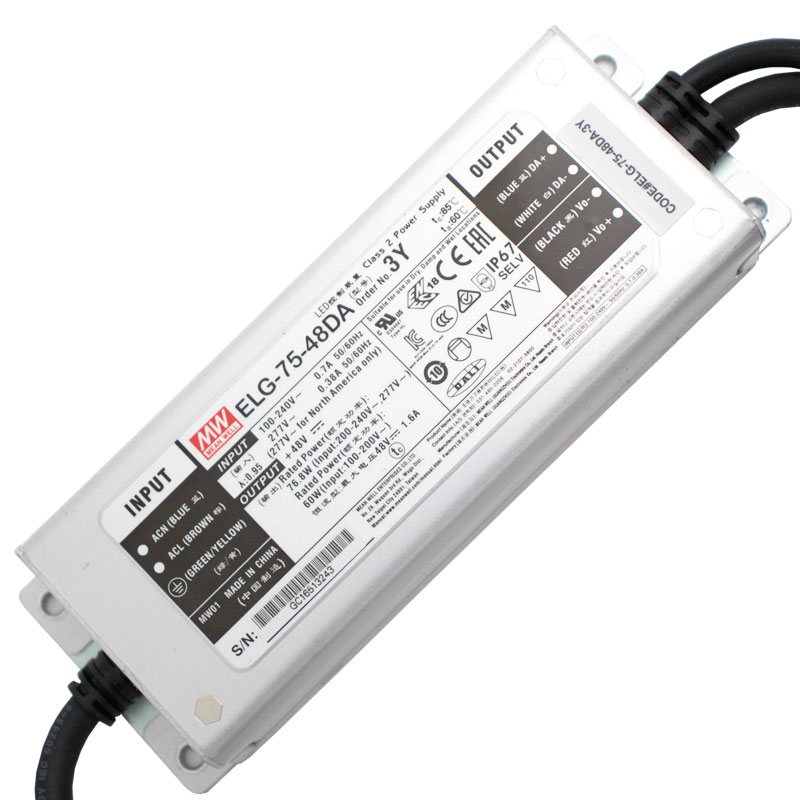

LED Driver DALI Dimmable 48V DC 75W IP67

Enquire
Discontinued
Stock Available:
Auckland: 69 EACH | Christchurch: Contact us

The ELG driver series is designed to deliver reliable and efficient power for a wide range of LED lighting applications. A built-in active PFC function helps maximise efficiency, while low no-load and standby power consumption of less than 0.5W supports energy-efficient operation. Rated IP67, the driver is suitable for both indoor and outdoor installations, offering dependable performance in a variety of environments. Additional functionality includes DALI compatibility.

Product Info

Code PSMW-ELG-75-48D
Voltage 48
Product Code PSMW-ELG-75-48D
Warranty 5 Years
Voltage Input 200-305VAC
Voltage Output 48V
Output Power 76.8
Min Load 10%
IP Rating 67
PDF View Spec Sheet
PDF Wiring Diagram

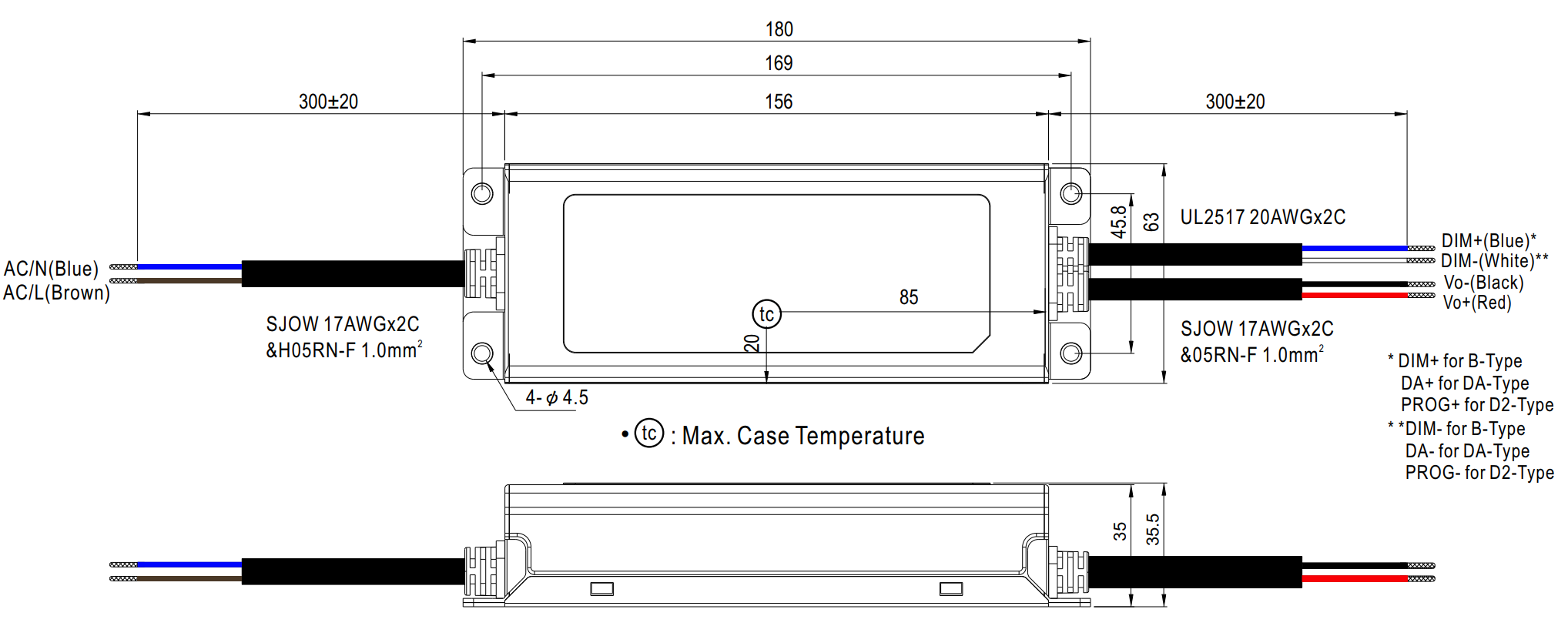

Dimension Drawing
