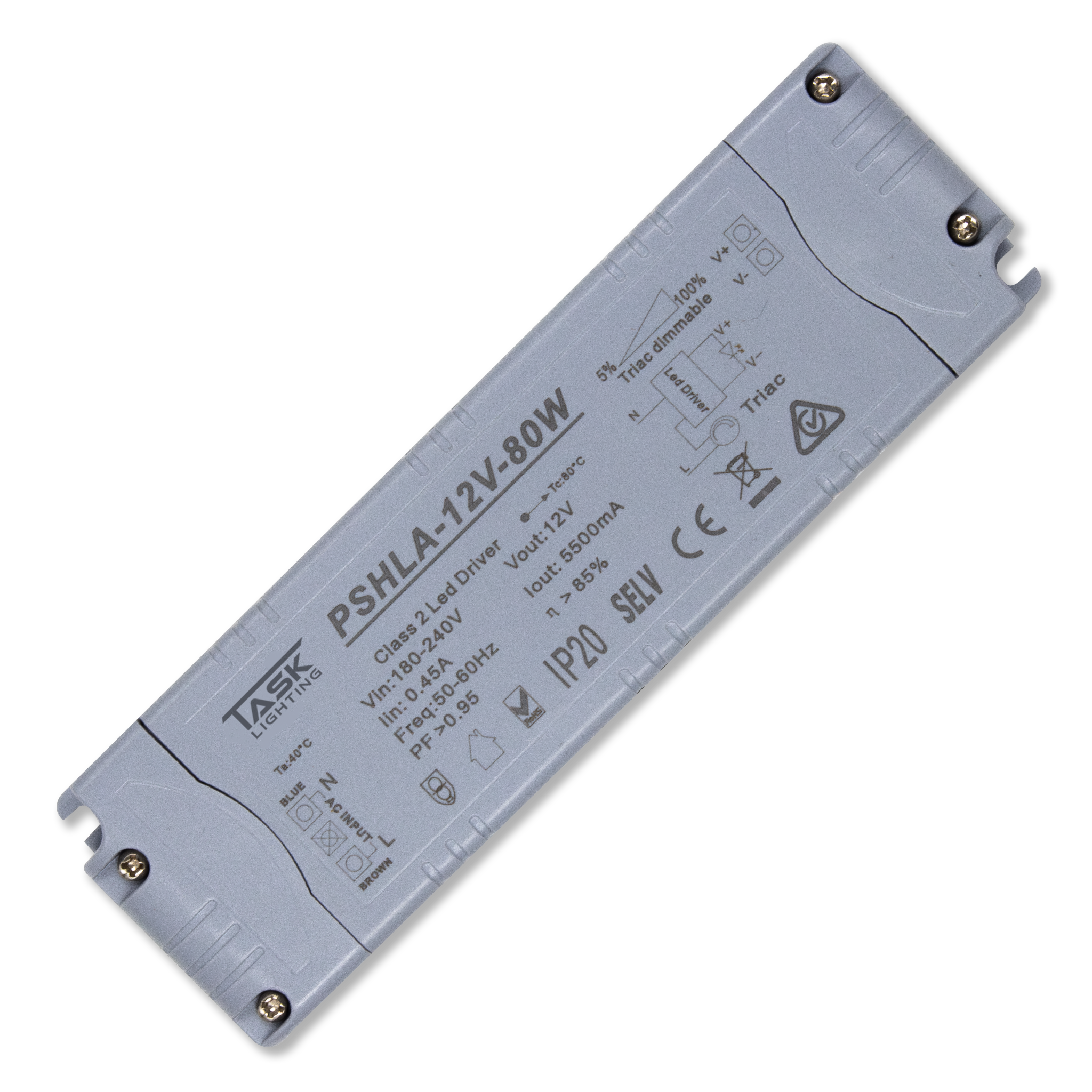

LED Driver Phase Dimmable 12V DC 80W IP20

Enquire
Discontinued
Auckland: 52 EACH | Christchurch: 0 EACH

PSHLA drivers deliver a reliable 12VDC output, making them ideal for LED strip applications. Designed for efficient and dependable performance. Their compact form factor allows for easy installation across a variety of lighting setups. These drivers support smooth dimming from 5%–100% when used with a compatible dimmer and with a minimum 70% load, offering flexible lighting control for different applications. Built with covered terminals and designed to Class II & SELV standards, they provide an added level of safety and reliability. Available in a wide range of wattage's to suit a variety of applications and LED lighting outputs.

Product Info

Code PSHLA-12V-80W
Voltage 180-240V
PDF View Spec Sheet

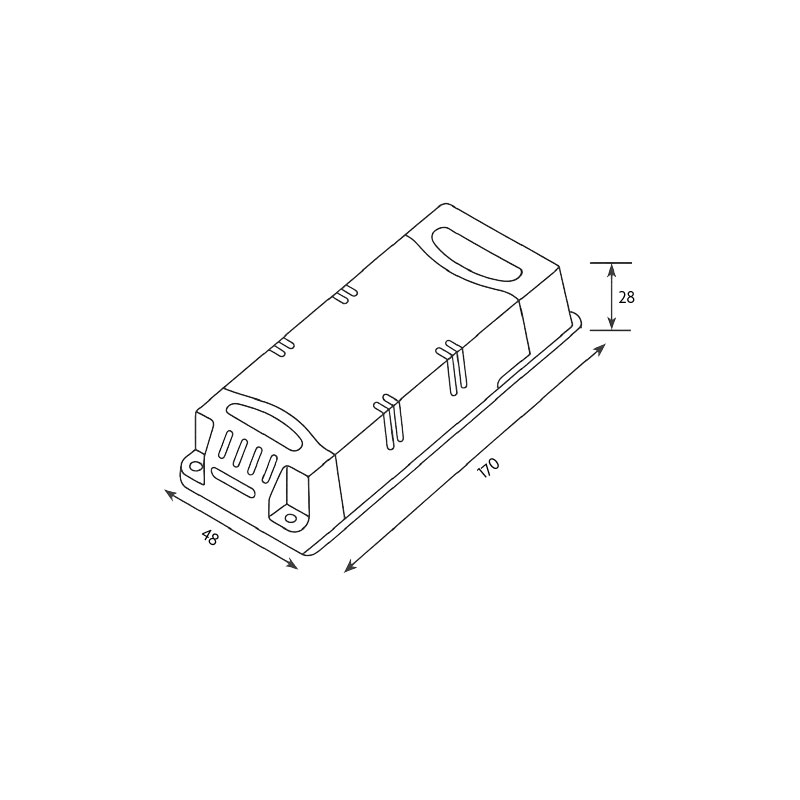

Dimension Drawing
