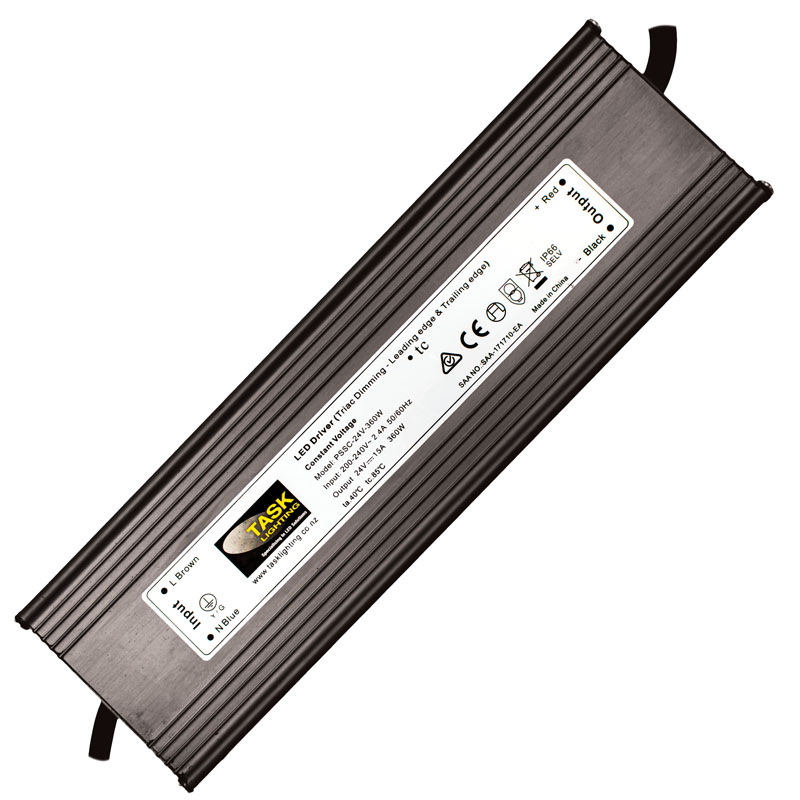

LED Driver Phase Dimmable 24V DC 360W IP66

Enquire
Auckland: 2 EACH | Christchurch: 0 EACH

This PSSC-24V-360W features an AC input range of 200–240V and a built-in active PFC function for improved efficiency, reaching up to 90%. Designed with an aluminium housing, it offers easy installation and robust protection. Rated IP66, it’s built to withstand outdoor environments. The driver supports both leading edge and trailing edge TRIAC dimmers, ensuring flicker-free dimming and strong compatibility with various lighting systems. It also includes protection against short circuits, overloads, and overheating for enhanced safety and reliability.

Product Info

Code PSSC-24V-360W
Voltage 200-240V
IP Rating 66
Dimming Type Phase dimming
PDF View Spec Sheet

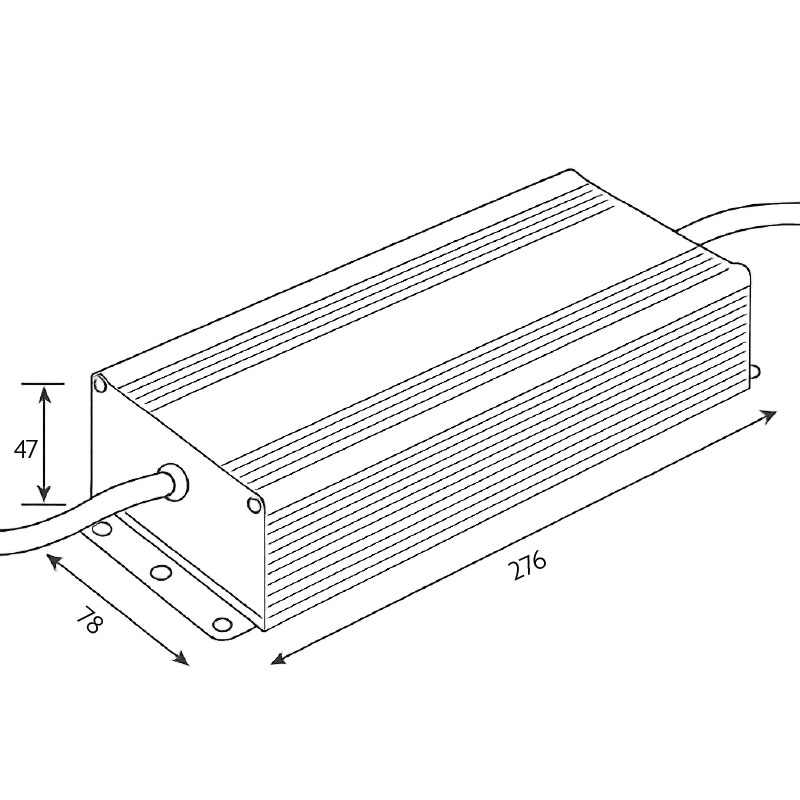

Dimension Drawing
