LED Driver Phase Dimmable 48V DC 150W IP66

Enquire
Stock Available:
Auckland: 15 EACH | Christchurch: Contact us

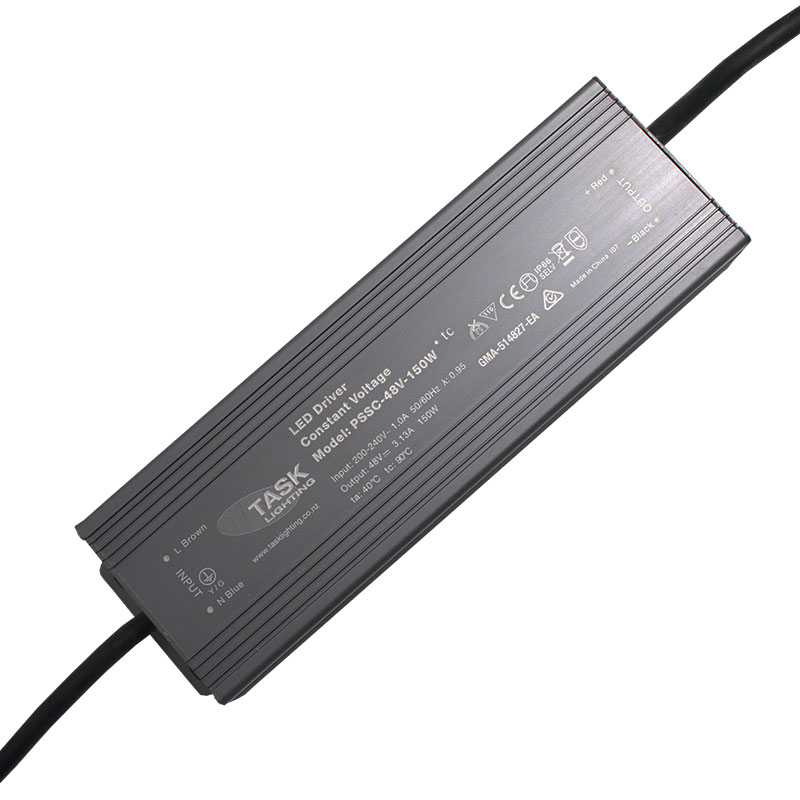

The PSSC-48V-150W provides a reliable 48V constant voltage output with an AC input range of 200–240V and efficiency of up to 86%. Designed for outdoor use, it features an IP66-rated aluminium housing with cooling via free air convection, offering durability and protection in harsh environments. The driver supports leading and trailing edge TRIAC dimmers with flicker-free dimming, delivering strong compatibility across a range of lighting systems. Built-in protections guard against short circuits, overloads, and overheating, making it ideal for LED lighting and moving sign applications.

Product Info

Code PSSC-48V-150W
Voltage 48
Product Code PSSC-48V-150W
Warranty 5 Years
Voltage Input 200-240V
Voltage Output 48V
Output Power 150W
Min Load 10%
IP Rating 66
PDF View Spec Sheet

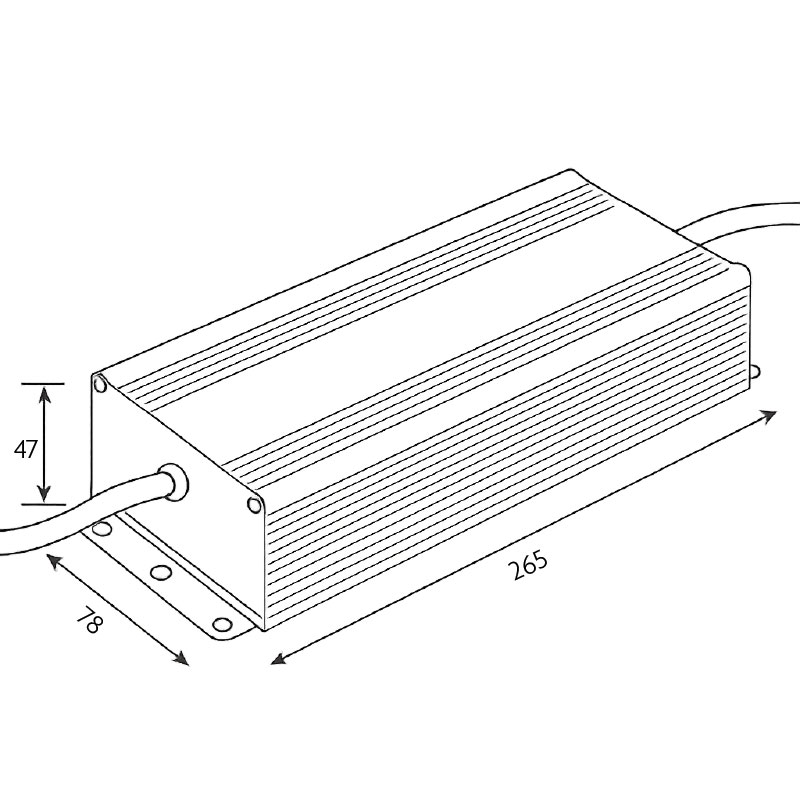

Dimension Drawing
