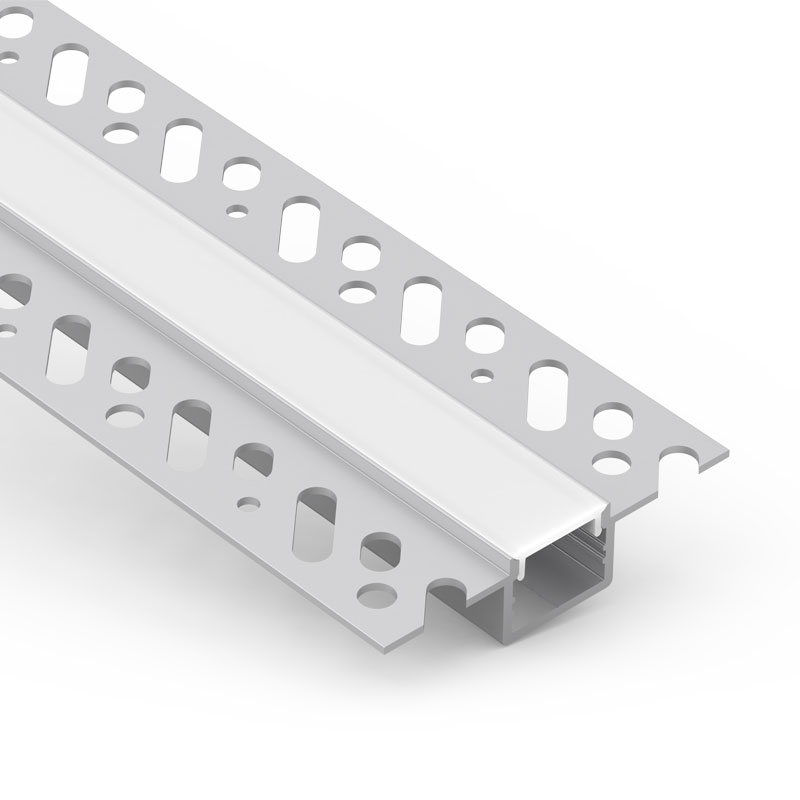

LED Channel 800
Recessed Plaster Mount Profile
W66.4mm x H16.4mm
Channel 800 is designed to be recessed and plastered to suit.
Ideal for adding detail to walls and ceilings in kitchens, lounges, bathrooms and hallways.
No higher than 15W/m as high wattages may cause plaster to crack.
Please refer to our Strip and Profile Compatibility Guide or contact us for further information.
Diffuser Transmission Rates. Opal 52%
| Code: | LEDCHAN800OL |
|---|---|
| Channel Colour: | Silver |
| Lens Colour: | Opal |

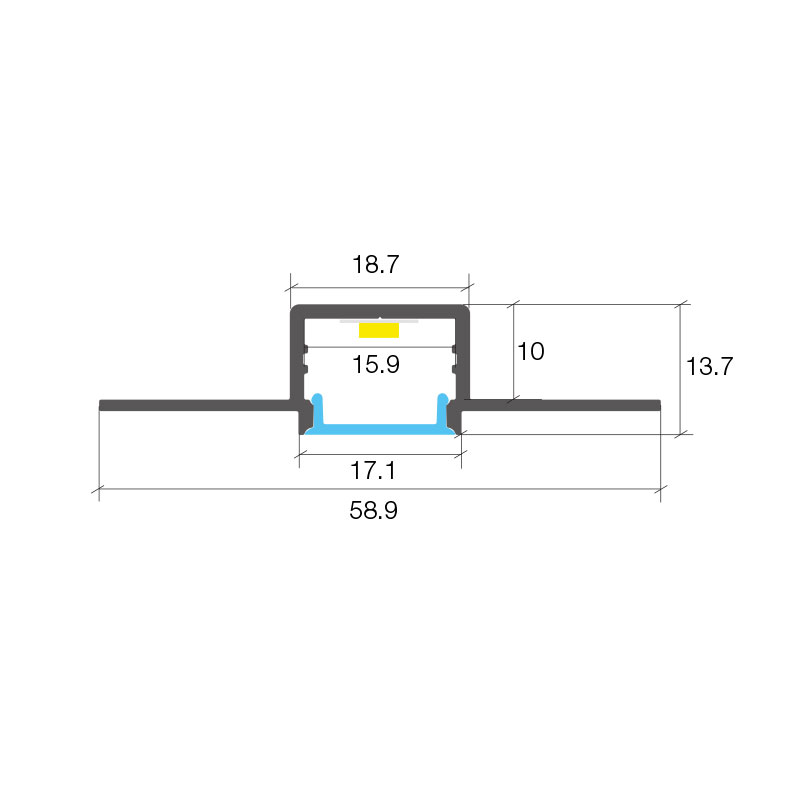

| Dimensions: | 66.4mm wide x 16.4mm high (see diagram for more dimensions) |
| Available Lengths: | 2.5m or cut to size |
| Silver End Cap: | LEDCHAN800EC1 |
| Silver End Cap (with wire hole): | LEDCHAN800EC2 |
| Document Type | Document Title |
|---|---|
pdf
|
LED Channel 800 |
| Document Type | Document Title |
|---|---|
|
pdf
|
Electrical Install Guide |
