LED CHANNEL 930OL

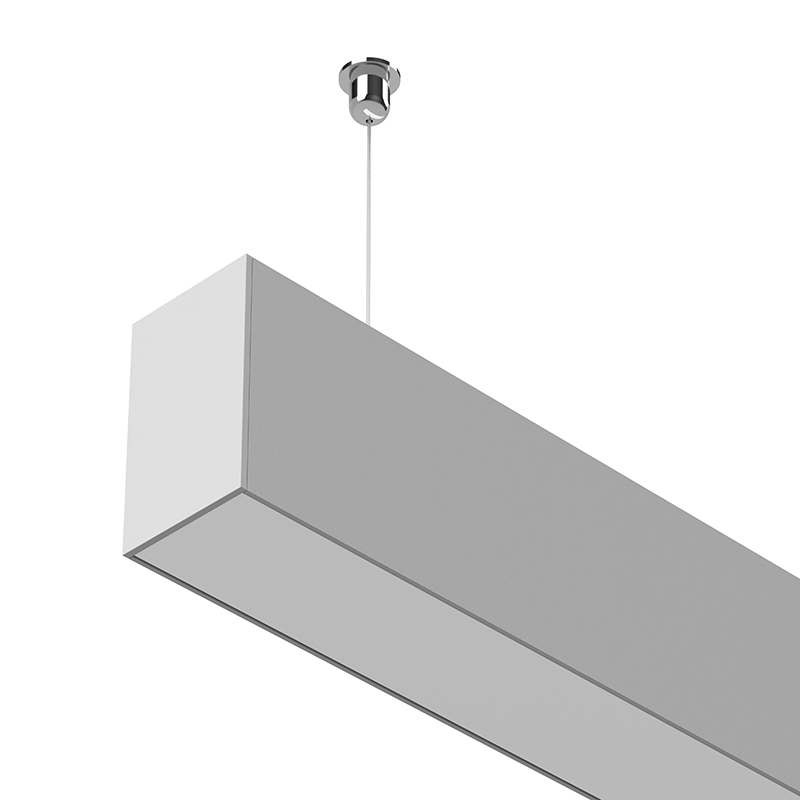

Direct/In-Direct Suspended Profile

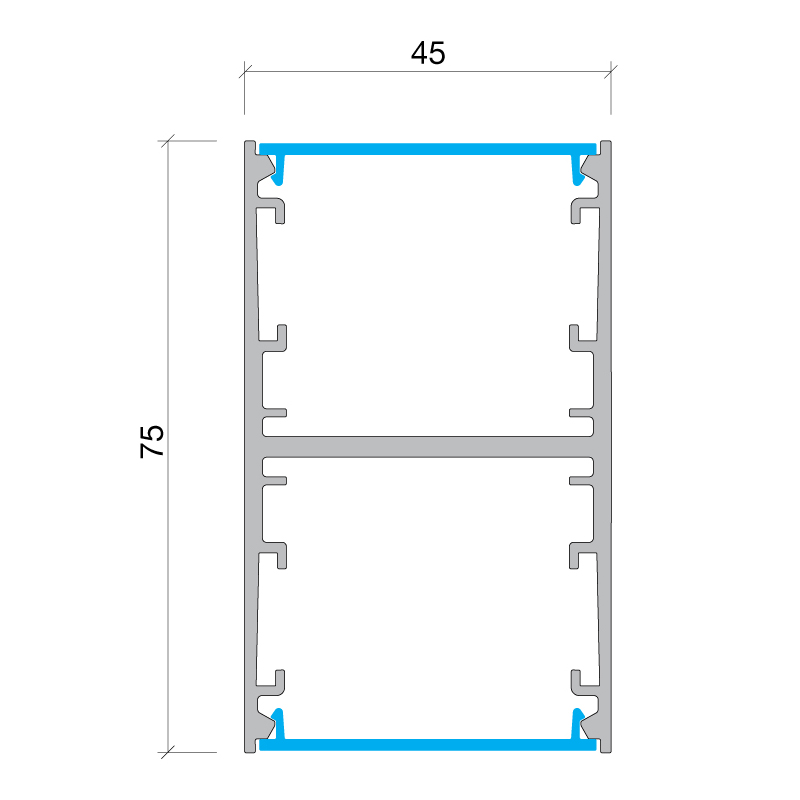

W45mm x H75mm
W45mm x H75mm
Suitable with LED strips up to 20W/m for direct/in-direct lighting or 30W/m direct only lighting
Spot free even illumination with appropriate strips
Max 4000m or cut to size
6063-T5 Structural grade aluminium
PMMA lens (type of acrylic) for interior use only
Aluminium body provides heat sinking for LED strips

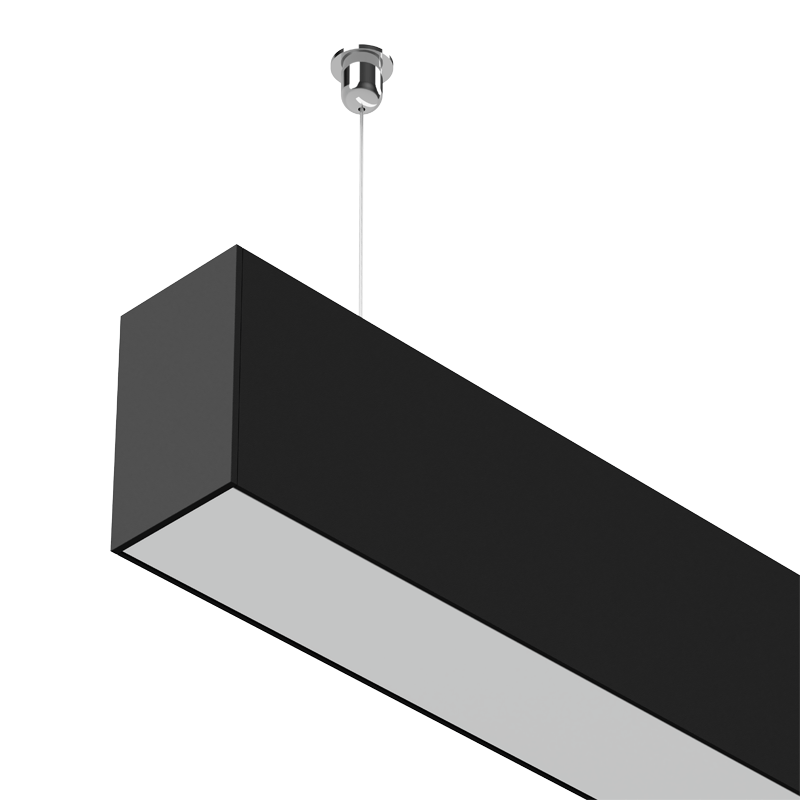

Powder coated at time of order. Standard colours are Protexture White, Black or Silver Pearl. If a custom colour is required, please contact us
Please refer to our Strip and Profile Compatibility Guide or contact us for further information.
| Code: | LEDCHAN930OL |
|---|---|
| Code: | POWDER (Specify colour **Protexture Black, Silver, White) |
| Dimensions: | W45 x H75mm |
| End Cap: | LEDCHAN930ECSL |
| Suspension Kit 1.2m drop: | LEDCHANSK1.2M |
| Suspension Kit 2.5m drop: | LEDCHANSK2.5M |
| Suspension Kit 5m drop: | LEDCHANSK5M |
| Assembly: | LABOURASSEMBLE |
| Document Type | Document Title |
|---|---|
pdf
|
LEDCHAN930 |
