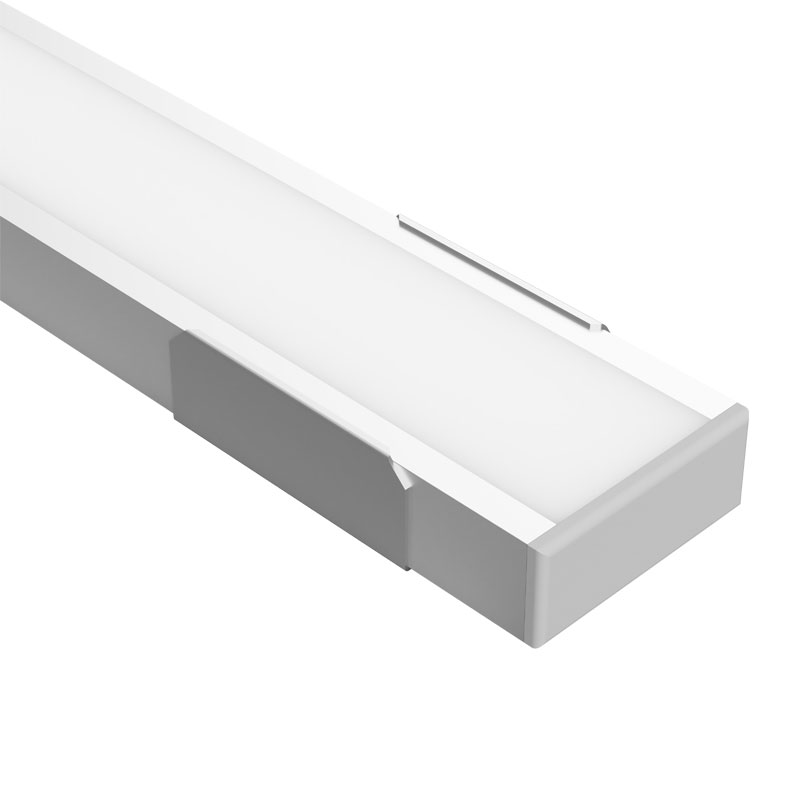

Ultra Shallow Surface Mounted 16mm x 6mm Aluminium Profile

Enquire
Stock Available:
Auckland: 137 MTR | Christchurch: Contact us

LEDCHAN450 is a slim profile designed for both surface and recessed mounting, making it an ideal solution for under cabinet lighting, toe kicks, retail displays, and bathroom cabinetry. Its streamlined form delivers clean, even illumination with appropriate strips whilst integrating discreetly into a wide range of interior applications. Featuring a slide in lens design, diffuser must slide in from one end.

Product Info

Code LEDCHAN450OL
Warranty 5 years
Stocked Length 4000mm or cut to size
Aluminium Grade 6063
Mounting Type SURFACE, RECESS
Light Output Ratio 0.72
Cutout Dimension 16mm
Diffuser Material ACRYLIC
Profile Finish SILVER
Profile Diffuser OPAL
PDF View Spec Sheet

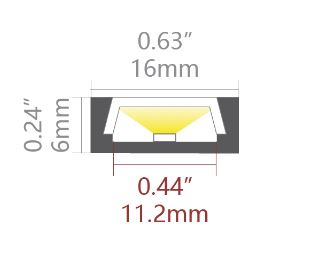

Dimension Drawing
