Led Deck Light 1.4Watt 12-24VDC 3K

Enquire
Stock Available:
Auckland: 83 EACH | Christchurch: 44 EACH

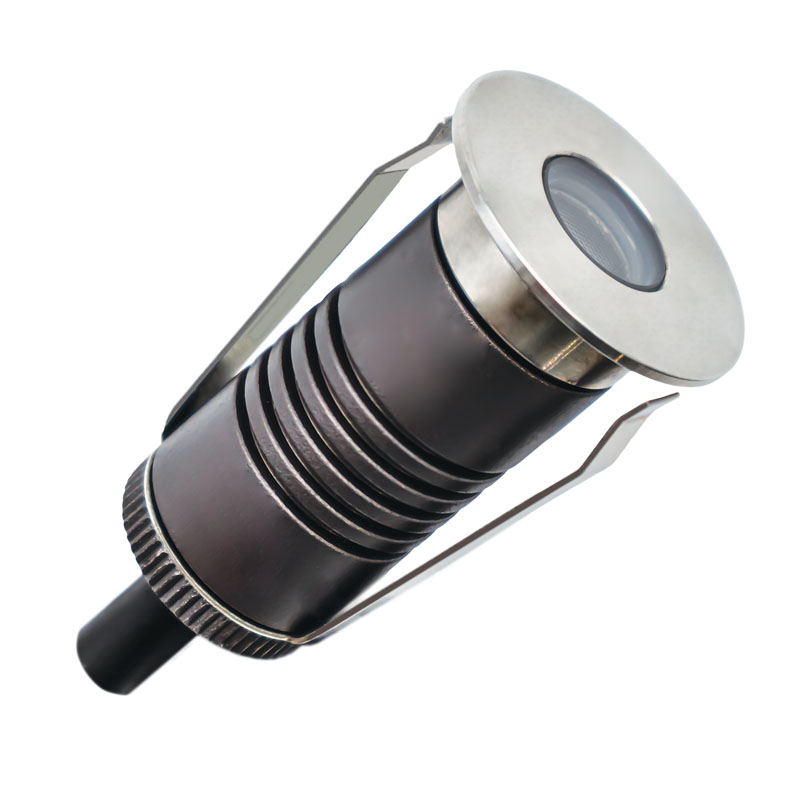

The LDDL1007 LED Deck Light features a durable 316 stainless steel face paired with an anodised, CNC machined 6063 grade aluminium body. High grade silicone seals provide superior protection, achieving an IP67 waterproof rating for reliable outdoor performance. Operating on 12–24V DC constant voltage, these lights must be wired in parallel and draw a small inrush current at start-up. Please refer to our recommended driver guide to determine the maximum number of fittings supported per driver. Features • Comes complete with former tube for installation • Voltage drop can be significant in long runs and 24VDC drivers are recommended for long runs • Plan cabling size accordingly • IP67 is not recommended or warranted for in ground use

Product Info

Code LDDL1007-3K-1.4W
Voltage 12-24V
Warranty 3 years
Height 46mm
Diameter 28mm
Finish Colour SILVER
Wattage 1.4W/m
Colour Temperature 3000K
Lumen Output 75lm/m
Efficacy 53.6lm/W
Beam Angle 45°
Lumen Maintenance L70B10 @ 50,000Hrs
Dimmable No
IP Rating 67
IK Rating 9
Cutout Yes
PDF View Spec Sheet
PDF Wiring Diagram

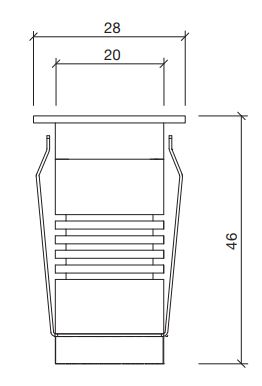

Dimension Drawing
