Led Deck Light 3Watt 1Way 12-24VDC IP67 3K

Enquire
Stock Available:
Auckland: 51 EACH | Christchurch: 18 EACH

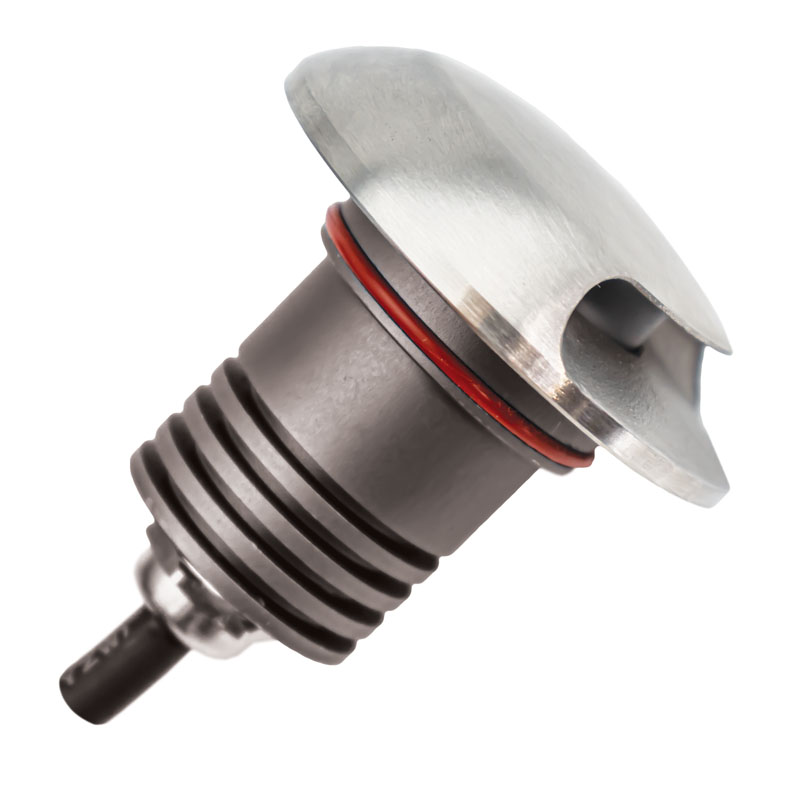

The LDDL1006 1 way LED Deck/Wall Light features a durable 316 stainless steel face paired with an anodised, CNC machined 6063 grade aluminium body. High grade silicone seals provide superior protection, achieving an IP67 waterproof rating for reliable outdoor performance. Operating on 12–24V DC constant voltage, these lights must be wired in parallel and draw a small inrush current at start-up. Please refer to our recommended driver guide to determine the maximum number of fittings supported per driver.

Product Info

Code LDDL1006-1-3K-3W
Voltage 12-24V
Warranty 3 years
Height 75mm
Diameter 60mm
Finish Colour SILVER
Wattage 3W/m
Colour Temperature 3000K
Lumen Output 95lm/m
Efficacy 31.7lm/W
Beam Angle 100°
Lumen Maintenance L70B10 @ 50,000Hrs
Dimmable No
IP Rating 67
IK Rating 10
Cutout Yes
PDF View Spec Sheet
PDF Wiring Diagram

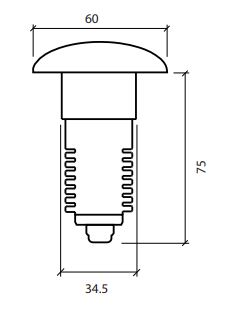

Dimension Drawing
