Led Deck Light 3Watt 43° IP67 3K

Enquire
Stock Available:
Auckland: 38 EACH | Christchurch: 17 EACH

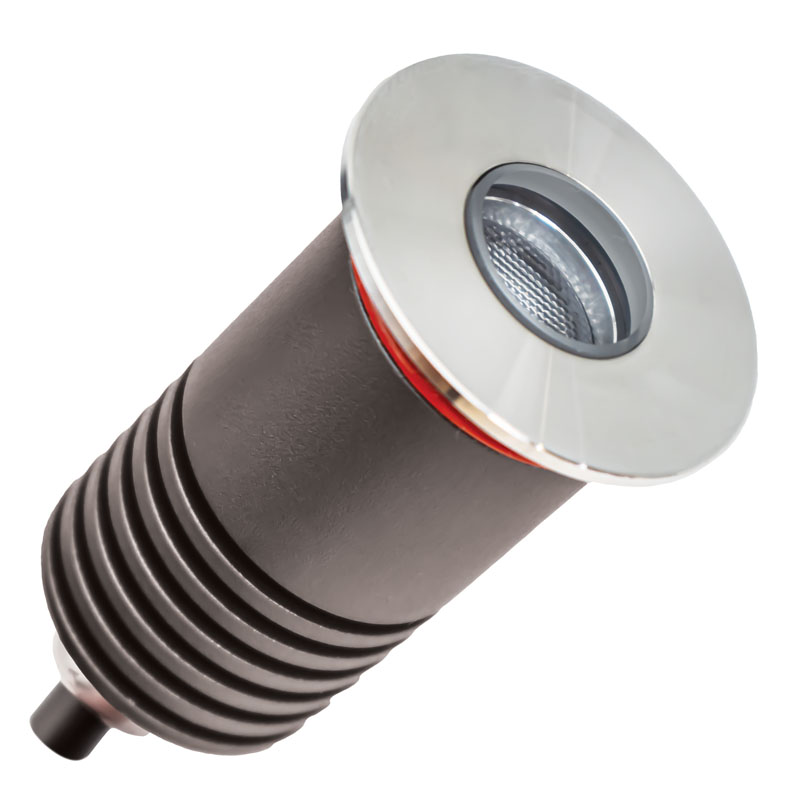

The LDDL1003 LED Deck/Wall Light features a durable 316 stainless steel face paired with an anodised, CNC-machined 6063-grade aluminium body. High-grade silicone seals provide superior protection, achieving an IP67 waterproof rating for reliable outdoor performance. Operating on 12–24V DC constant voltage, these lights must be wired in parallel and draw a small inrush current at start-up. Please refer to our recommended driver guide to determine the maximum number of fittings supported per driver.

Product Info

Code LDDL1003-3K-3W
Voltage 12-24V
Warranty 3 years
Height 79mm
Diameter 40mm
Finish Colour SILVER
Wattage 3W/m
LED Colour WHITE
Colour Temperature 3000K
Lumen Output 110lm/m
Efficacy 36.7lm/W
Beam Angle 43°
Lumen Maintenance L70B10 @ 50,000Hrs
Dimmable No
IP Rating 67
IK Rating 5
Cutout Yes
PDF View Spec Sheet
PDF Wiring Diagram

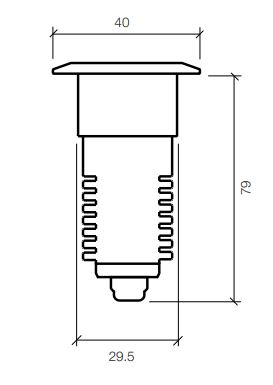

Dimension Drawing
