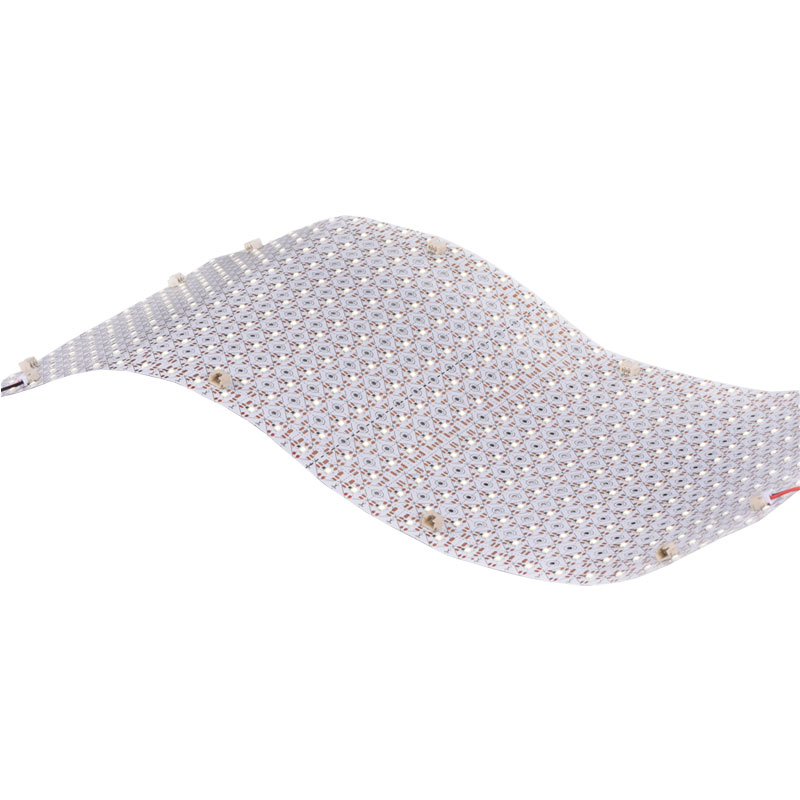

Lumisheet 4000K 10W Mono Colour 500x233mm 24VDC IP54 Silicone

Enquire
Stock Available:
Auckland: 42 EACH | Christchurch: Contact us

LED sheet lighting is an innovative lighting solution designed for a wide range of applications, including commercial, industrial, and residential settings. Lumisheet provides uniform illumination, energy efficiency, and a sleek, modern aesthetic.

Product Info

Code LDLS-4K-10W-IP54SS
Dimensions 16.6mm
Voltage 24
Warranty 5 Years
Installation 3M Double Sided Tape
Wattage 10W/m
LED Type SMD
LEDs Per Metre 420
Colour Temperature 4000K
Tuneable White No
CRI 90
Lumen Output 1040lm/m
Max Single Feed Run 12 sheets
Bend Radius 50 mm
Cut Points 16.6mm
PDF View Spec Sheet
PDF Wiring Diagram

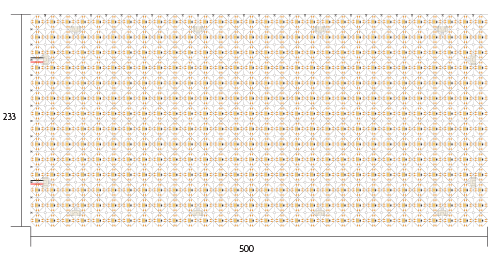

Dimension Drawing
