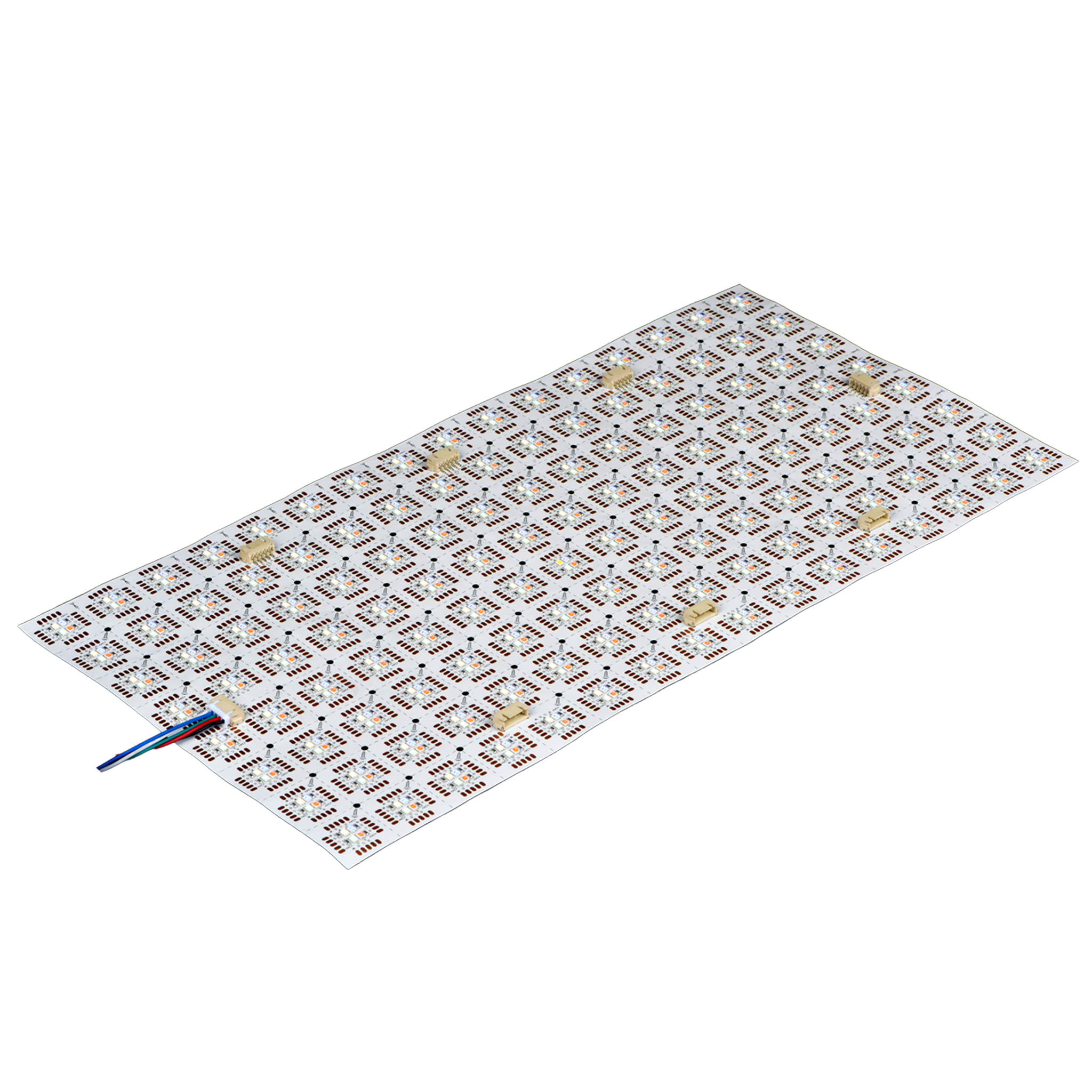

Lumisheet RGBW 36W 480x240mm 24VDC IP54 Silicone

Enquire
Stock Available:
Auckland: 58 EACH | Christchurch: Contact us

LED sheet lighting is an innovative lighting solution designed for a wide range of applications, including commercial, industrial, and residential settings. Lumisheet provides uniform illumination, energy efficiency, and a sleek, modern aesthetic.

Product Info

Code LDLS-RGBW-36W-IP54SS
Dimensions 30mm × 6.7mm × 30mm
Voltage 24
Warranty 5 Years
Installation 3M Double Sided Tape
Wattage 36W/m
LED Type SMD
LEDs Per Metre 512
Colour Temperature 4000K
Tuneable White No
CRI 90
Lumen Output 1830lm/m
Max Single Feed Run 8 sheets
Bend Radius 50 mm
Cut Points 30mm
Cut Point Width 30mm
Cut Point Height 6.7mm
PDF View Spec Sheet
PDF Wiring Diagram

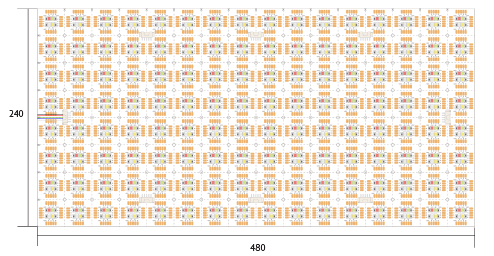

Dimension Drawing
