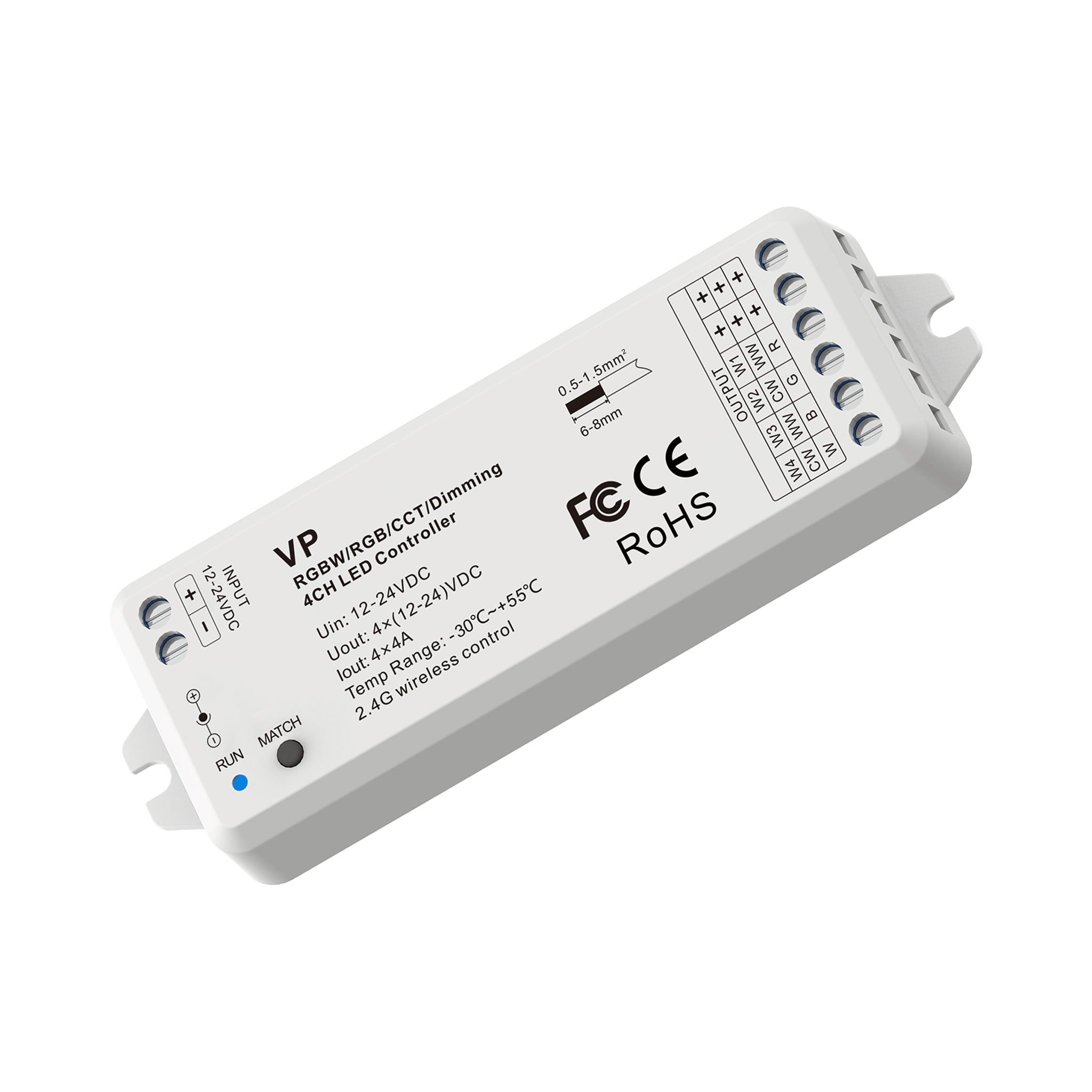

4Amp x 4Channel Controller 12-24VDC

Enquire
Stock Available:
Auckland: 2 EACH | Christchurch: Contact us

Featuring flexible DC socket or screw terminal power input and 4 channel constant voltage output, this RF controller delivers smooth, flicker-free 0–100% dimming with 4096 levels of precision. Compatible with our range of RF 2.4G single-zone and multi-zone remotes for single colour, dual colour, and RGB/RGBW lighting, it supports up to 10 remotes per controller. With 10 built-in dynamic RGB/RGBW modes, auto-transmitting signal up to 30 metres, multi-controller synchronisation, selectable 3-second fade on/off, and adjustable PWM frequencies up to 8k Hz, it’s a powerful and flexible solution for professional LED lighting control.

Product Info

Code LCRGBWSD-VP
Warranty 5 Years
Voltage Input 12-24VDC
Voltage Output 12-24VDC
Output Power 384W
Output Current 4A/ch
Amps Output 4A/ch
Channels 4
Dimming Range 0-100%
Input Dimming RF
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

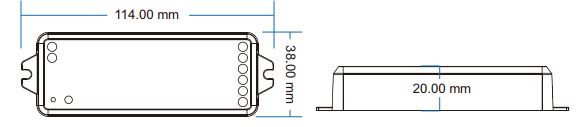

Dimension Drawing
