DALI2 DT8 Dim Slave 12-48VDC 4X5A @ 24VDC IP20

Enquire
Stock Available:
Auckland: 60 EACH | Christchurch: 10 EACH

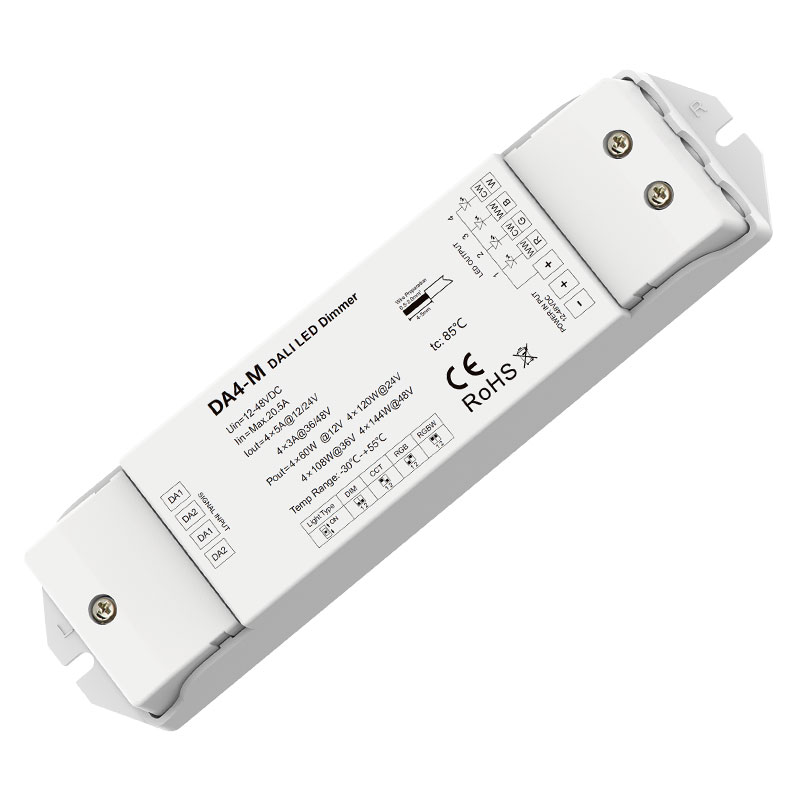

The DA4M is a 5A x 4 channel constant voltage DALI DT8 LED controller which supports 12–48V operation and delivers precise multi-channel lighting control. It features PWM digital dimming with a standard DALI logarithmic dimming curve for smooth, accurate light adjustment. Designed with four DALI address inputs and four channel outputs, each address is automatically assigned by the DALI master controller for simple configuration. For larger installations, higher loads can be easily managed using compatible data repeaters.

Product Info

Code LCDMSD-DA4M
Warranty 5 years
Voltage Input 12-48V DC
Voltage Output 12-48V DC
Output Power 576W
Output Current 5A @ 12-24V, 3A @ 48V
Amps Output 5A @ 12-24V, 3A @ 48V
Channels 4
Dimming Range 0-100%
Input Dimming DALI
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

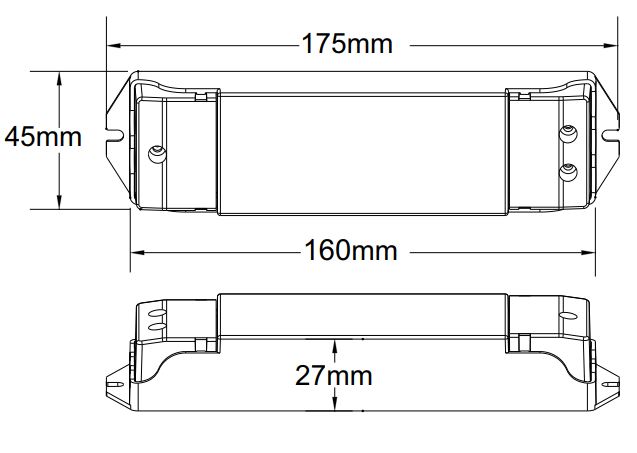

Dimension Drawing
