Dim Slave 0-10V 12A 12-36V 1P20

Enquire
Stock Available:
Auckland: 16 EACH | Christchurch: Contact us

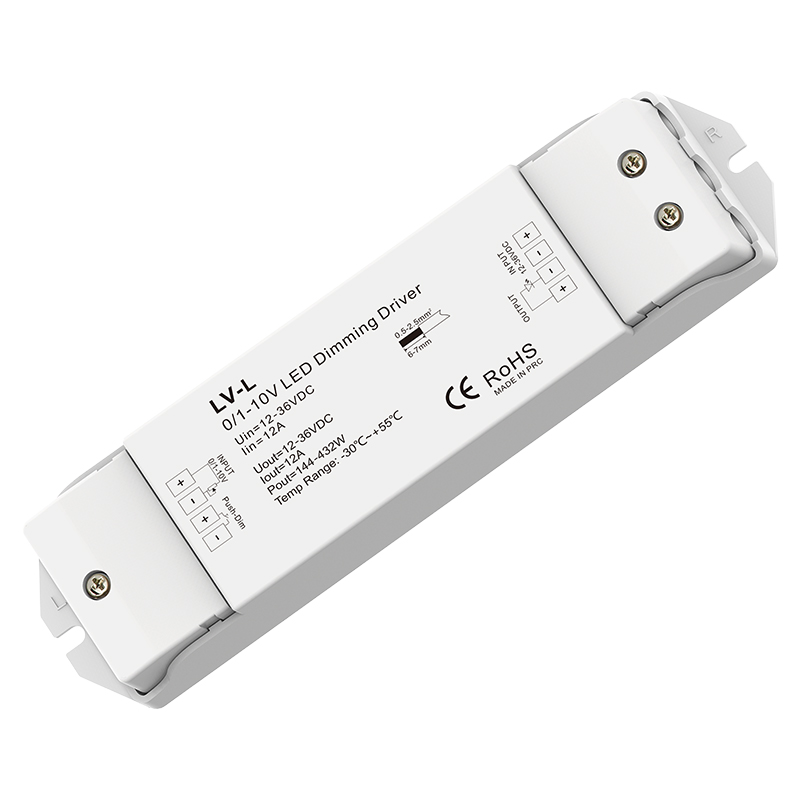

The LV-L controller is a single-channel 0/1–10V LED dimming driver designed for precise and reliable lighting control, featuring an integrated push-dim function for simple local operation. It offers one channel of 0/1–10V input with a PWM constant voltage output for stable performance. Users can select between logarithmic or linear dimming curves to suit different lighting applications, along with adjustable PWM frequencies of 500Hz, 2k Hz, 8k Hz or 16k Hz for optimal flicker-free results. The LV-L is compatible with both active and passive 0–10V and 1–10V dimmers, making it ideal for upgrading traditional fluorescent dimming systems to modern LED lighting. Built-in overheat, overload and short-circuit protection ensures safe operation with automatic recovery.

Product Info

Code LCDMSD-LV-L
Warranty 5 years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 480W
Output Current 15A @ 12-24V, 10A @ 48V
Amps Output 15A @ 12-24V, 10A @ 48V
Min Load 0%
Channels 1
Dimming Range 0-100%
Input Dimming 0-10V, 1-10V, Push
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

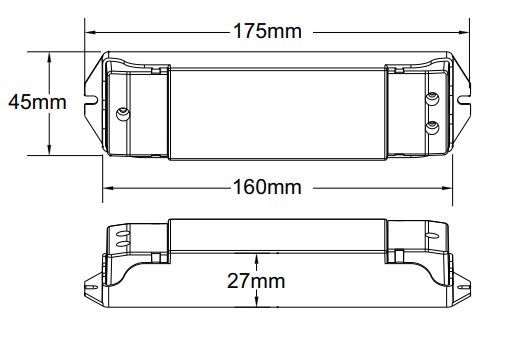

Dimension Drawing
