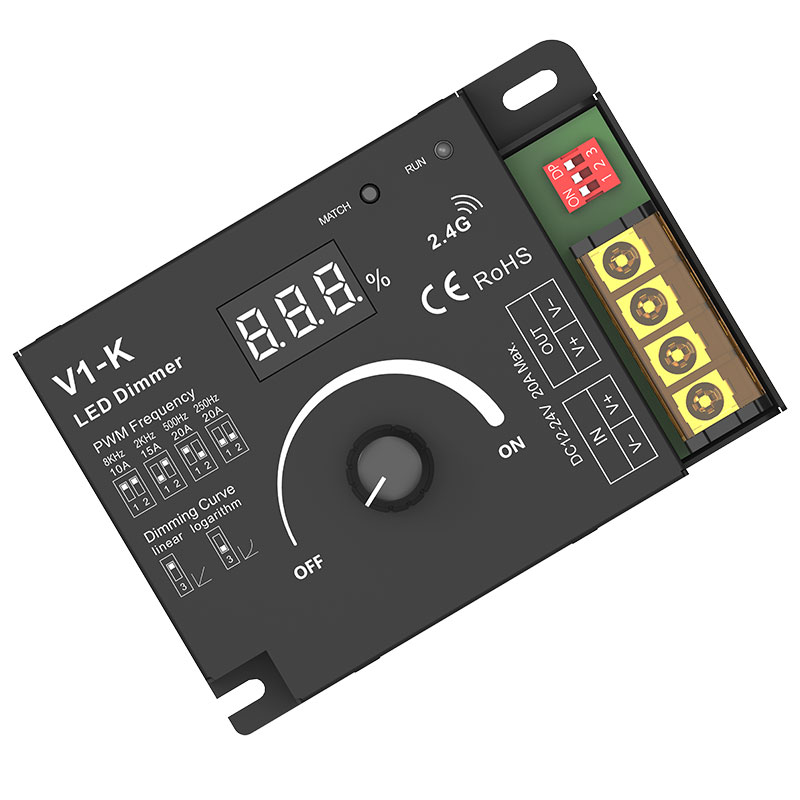

Led Dimmer Manual 20A 12-48VDC V1K

Enquire
Stock Available:
Auckland: 106 EACH | Christchurch: Contact us

The LCDM-MAN-20A-24V is designed for reliable low-voltage lighting control, this 12–24V DC manual dimmer delivers a powerful 20A output with an IP20 rating and offers convenient control via a handheld remote.

Product Info

Code LCDM-MAN-20A-24V
Warranty 5 years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 480W
Output Current 20A
Amps Output 20A
Channels 1
Dimming Range 0-100%
Input Dimming Rotary, RF
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram
