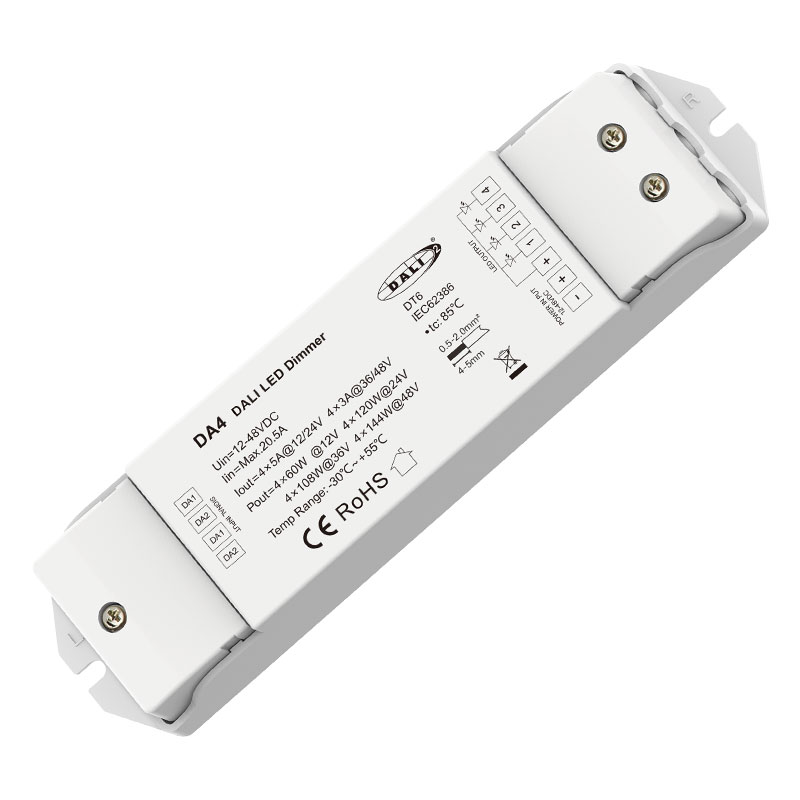

DALI DT6 Dim Slave 12-48VDC 4X5A IP20

Enquire
Stock Available:
Auckland: 29 EACH | Christchurch: 9 EACH

The DA4 is a 4 channel constant voltage DALI LED controller supports 12–48V operation with 3A or 5A output per channel, delivering powerful and flexible lighting control. It utilises PWM digital dimming with a standard DALI logarithmic dimming curve for smooth, accurate performance. Designed with four DALI address inputs and four channel outputs, each address is automatically assigned by the DALI master controller for straightforward setup. For larger lighting loads, the system can be easily expanded using compatible data repeaters.

Product Info

Code LCDMSD-DA4
Warranty 5 years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 576W
Output Current 5A/ch@12-24V,3A/ch@48V
Amps Output 5A @ 12-24V, 3A @ 48V
Channels 4
Dimming Range 0-100%
Input Dimming DALI
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

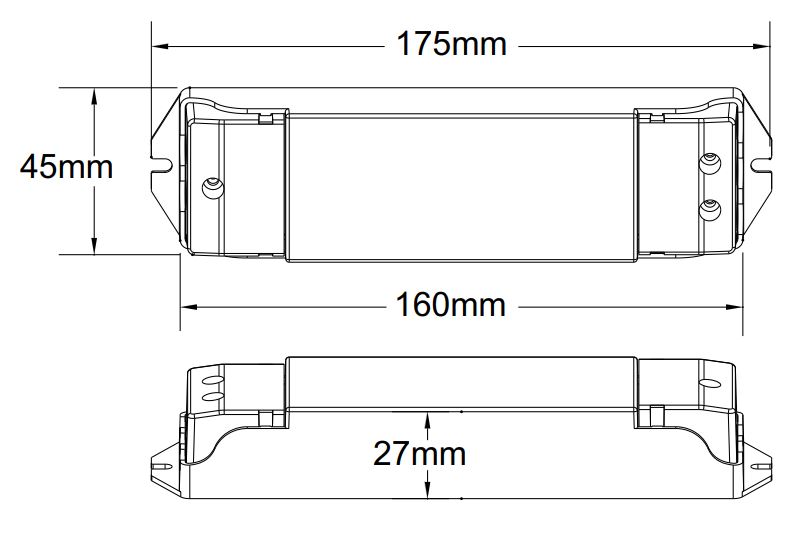

Dimension Drawing
