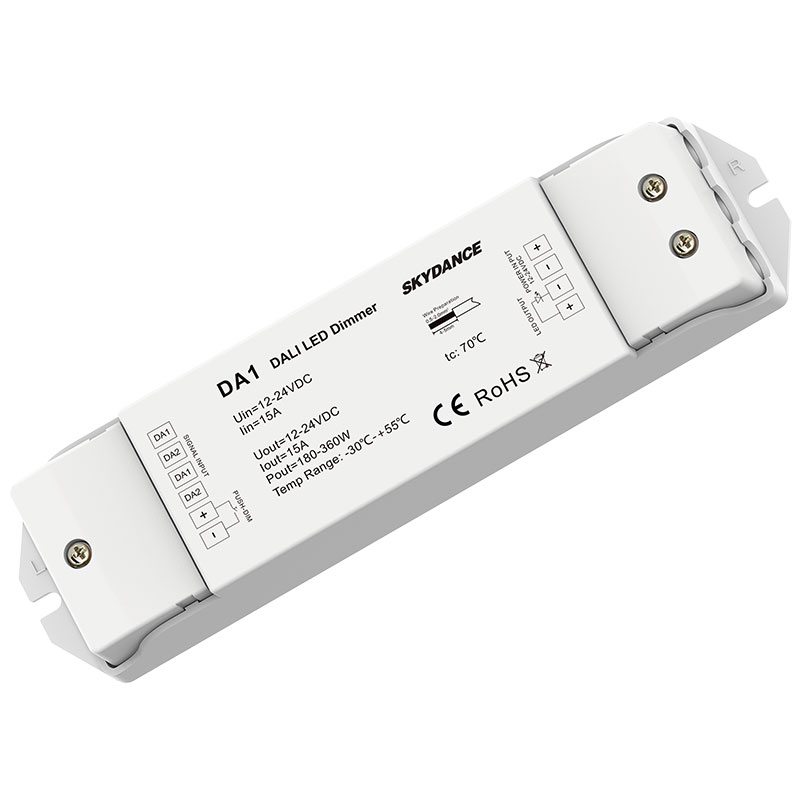

DALI2 Single Channel 15A 12-24VDC, 10A 48VDC IP20

Enquire
Stock Available:
Auckland: 120 EACH | Christchurch: Contact us

The DA-1 constant voltage DALI LED dimmer offers precise and reliable lighting control with automatic address assignment from the DALI master using one DALI address. It features PWM digital dimming with a standard DALI logarithmic dimming curve for smooth and accurate light adjustment. The dimmer also supports connection to an external push switch for simple on/off and dimming control. Built-in overheat, overload and short-circuit protection ensures safe operation with automatic recovery for added reliability.

Product Info

Code LCDMSD-DA1
Warranty 5 years
Voltage Input 12-48VDC
Voltage Output 12-48VDC
Output Power 480W
Output Current 15A@12-24V, 10A@36-48V
Amps Output 15A @ 24V, 10A @ 48V
Channels 1
Dimming Range 0-100%
Input Dimming DALI, Push
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

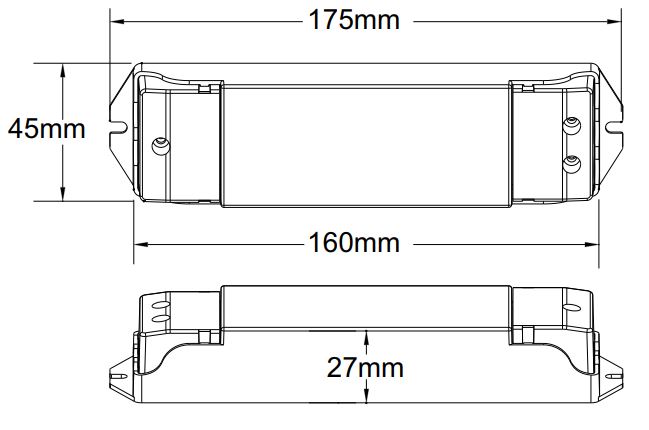

Dimension Drawing
