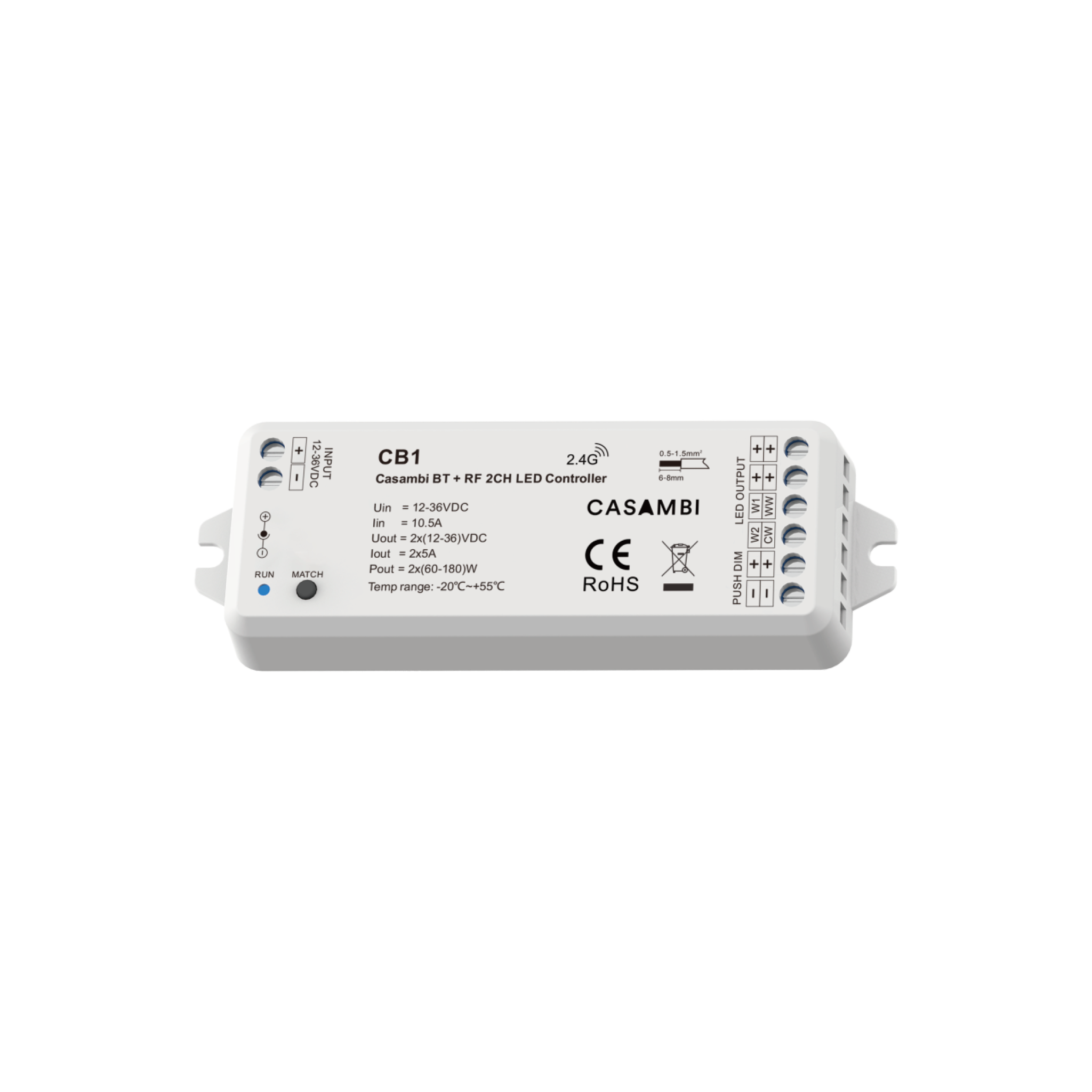

Casambi Bluetooth + RF CV LED Controller 2CH x 5A

Enquire
Stock Available:
Auckland: 27 EACH | Christchurch: Contact us

Product Info

Code LCBT-CB1
Warranty 5 years
Voltage Input 12-36VDC
Voltage Output 2 x (12-36)VDC
Output Power 2 x (60-180)W
Output Current 2CH, 5A/CH
Amps Output 2CH, 5A/CH
Min Load 0%
Channels 2
Dimming Range 0-100%
Input Dimming BT,RF 2.4GHz,Push switch
Output Dimming PWM
IP Rating 20
Working Temperature Ta: -20 ~ +55 C
PDF View Spec Sheet

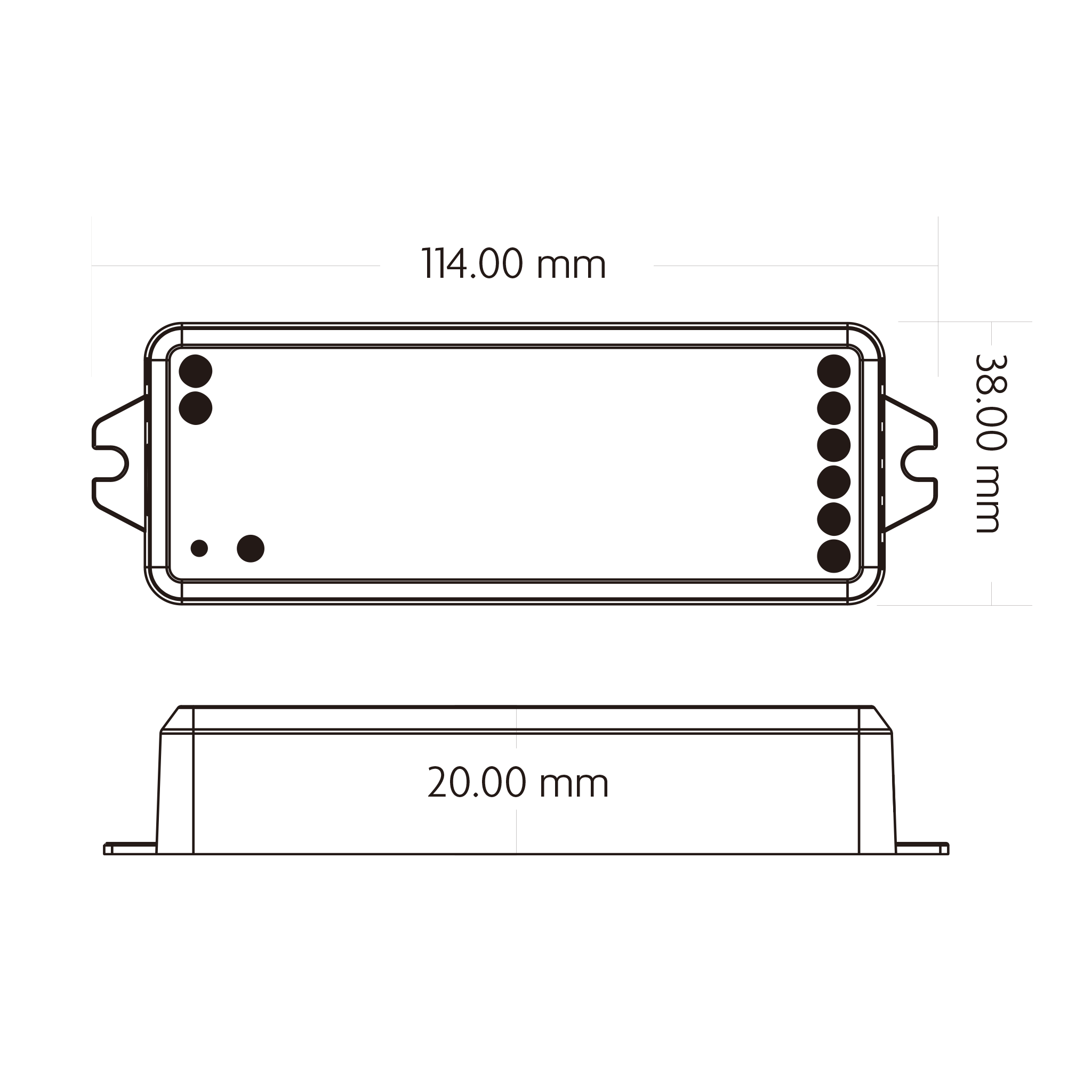

Dimension Drawing
