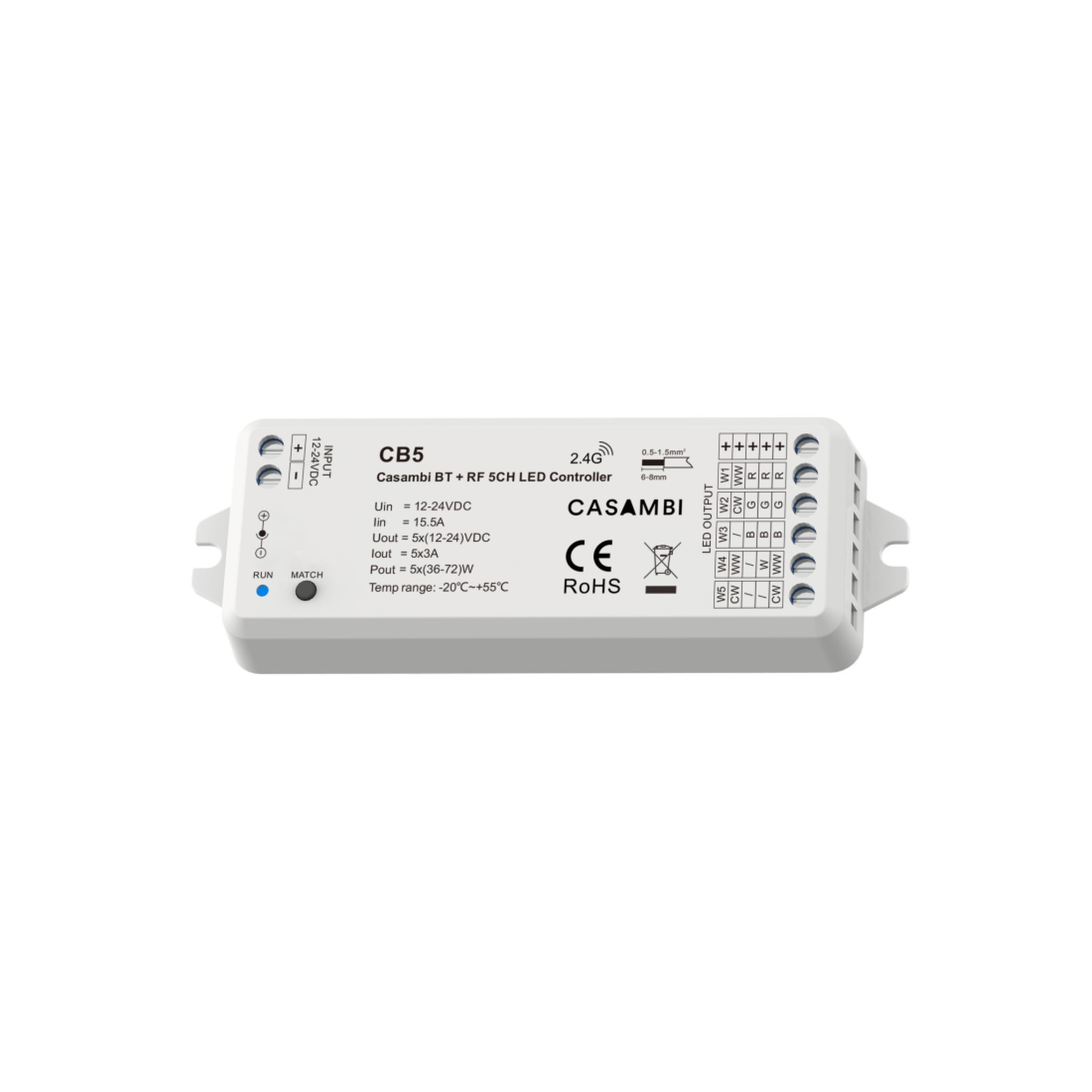

Casambi Bluetooth + RF CV LED Controller 5CH x 3A

Enquire
Stock Available:
Auckland: 30 EACH | Christchurch: Contact us

Product Info

Code LCBT-CB5
Warranty 5 years
Voltage Input 12-24VDC
Voltage Output 5 x (12-24)VDC
Output Power 5 x (36-72)W
Output Current 5CH, 3A/CH
Amps Output 5CH, 3A/CH
Min Load 0%
Channels 5
Dimming Range 0-100%
Input Dimming Bluetooth + RF2.4GHz
Output Dimming PWM
IP Rating 20
Working Temperature -20°C ~ +55°C
PDF View Spec Sheet
PDF Wiring Diagram

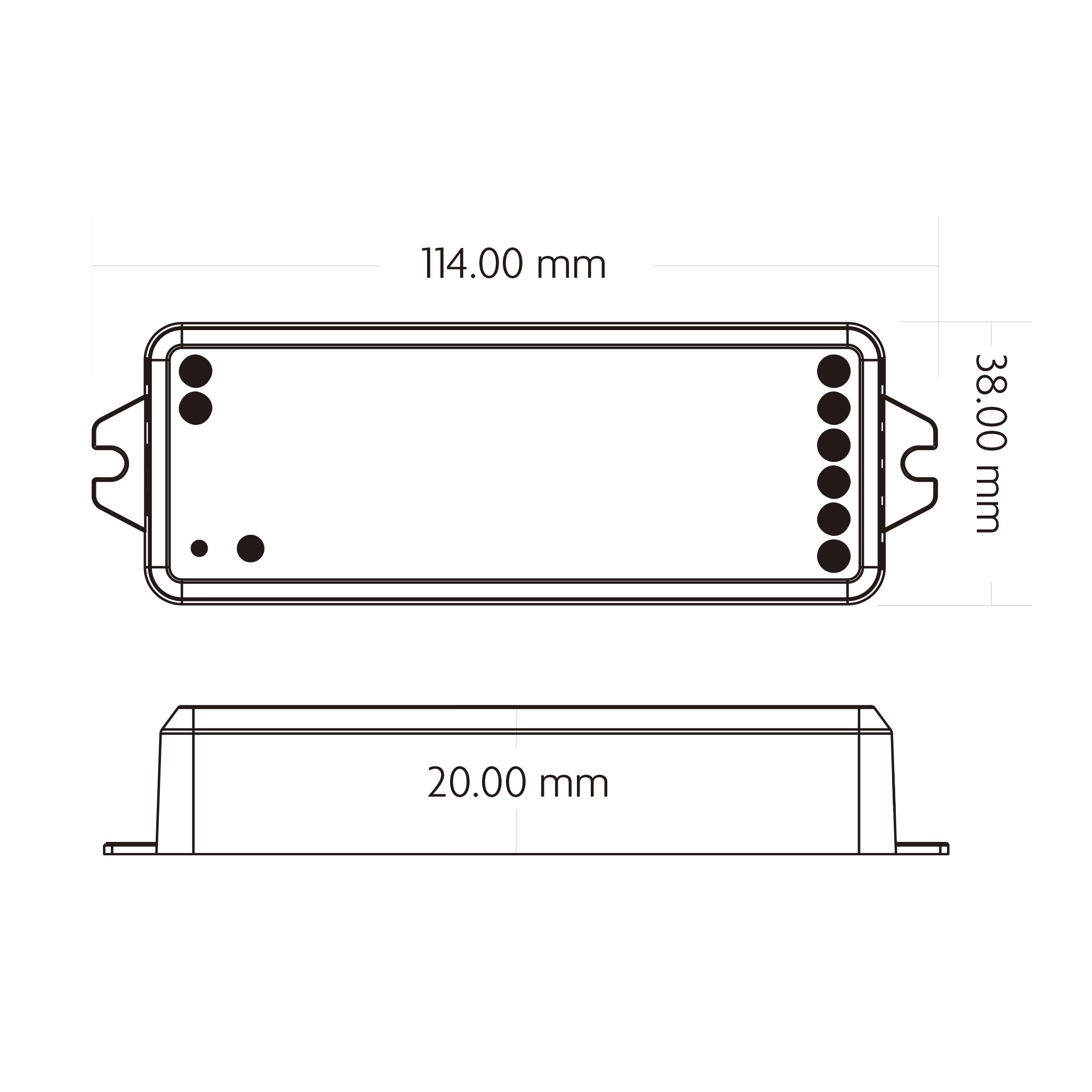

Dimension Drawing
