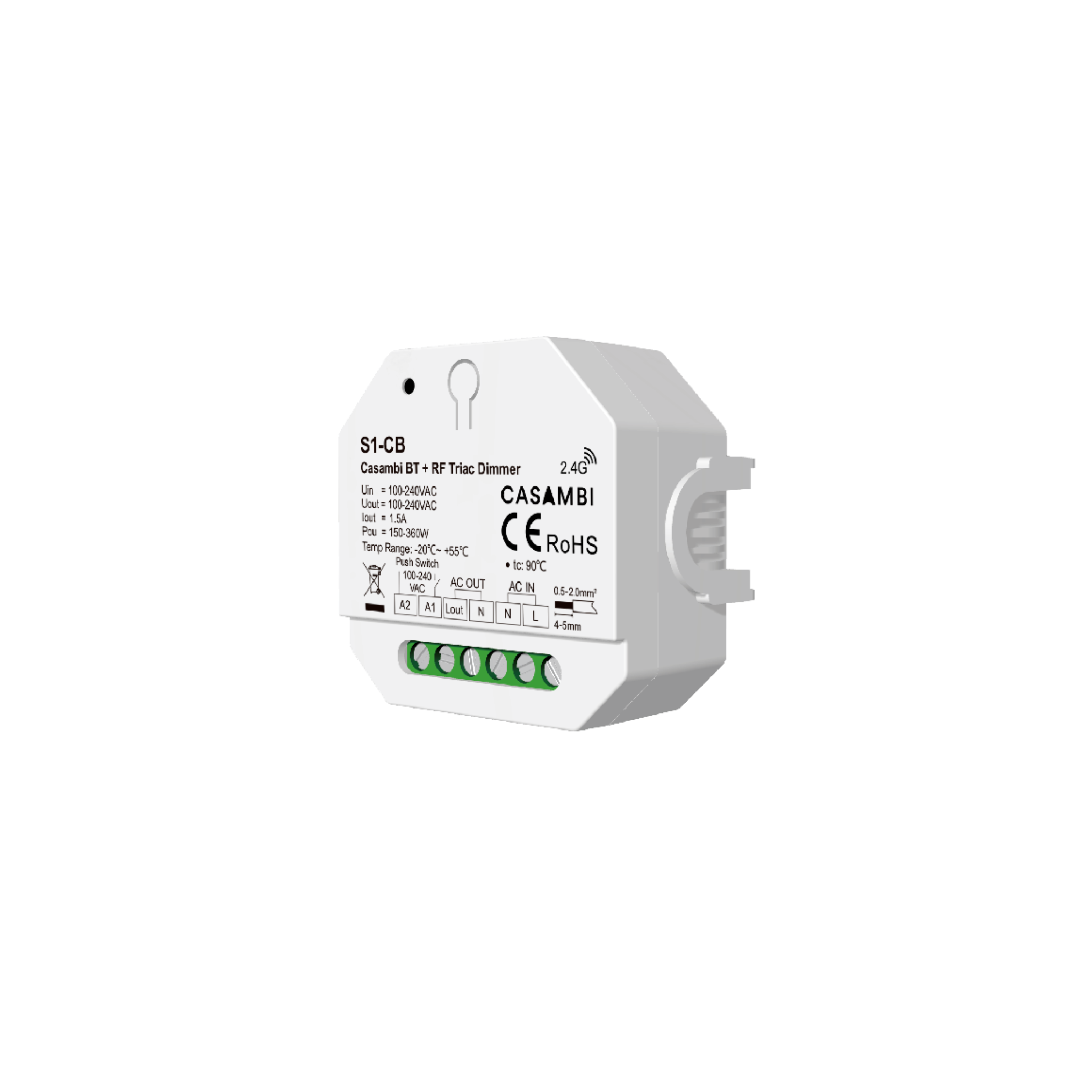

Casambi Bluetooth + RF Trac Dimmer

Enquire
Stock Available:
Auckland: 30 EACH | Christchurch: Contact us

Product Info

Code LCBT-S1-CB
Warranty 5 years
Voltage Input AC100-240V
Voltage Output AC100-240V
Output Power 150-360W
Output Current Max 1.5A
Amps Output Max 1.5A
Min Load 0%
Channels 1
Dimming Range 0-100%
Input Dimming BT,RF 2.4GHz,Push switch
Output Dimming Triac
IP Rating 20
Working Temperature -20°C ~+55°C
PDF View Spec Sheet
PDF Wiring Diagram

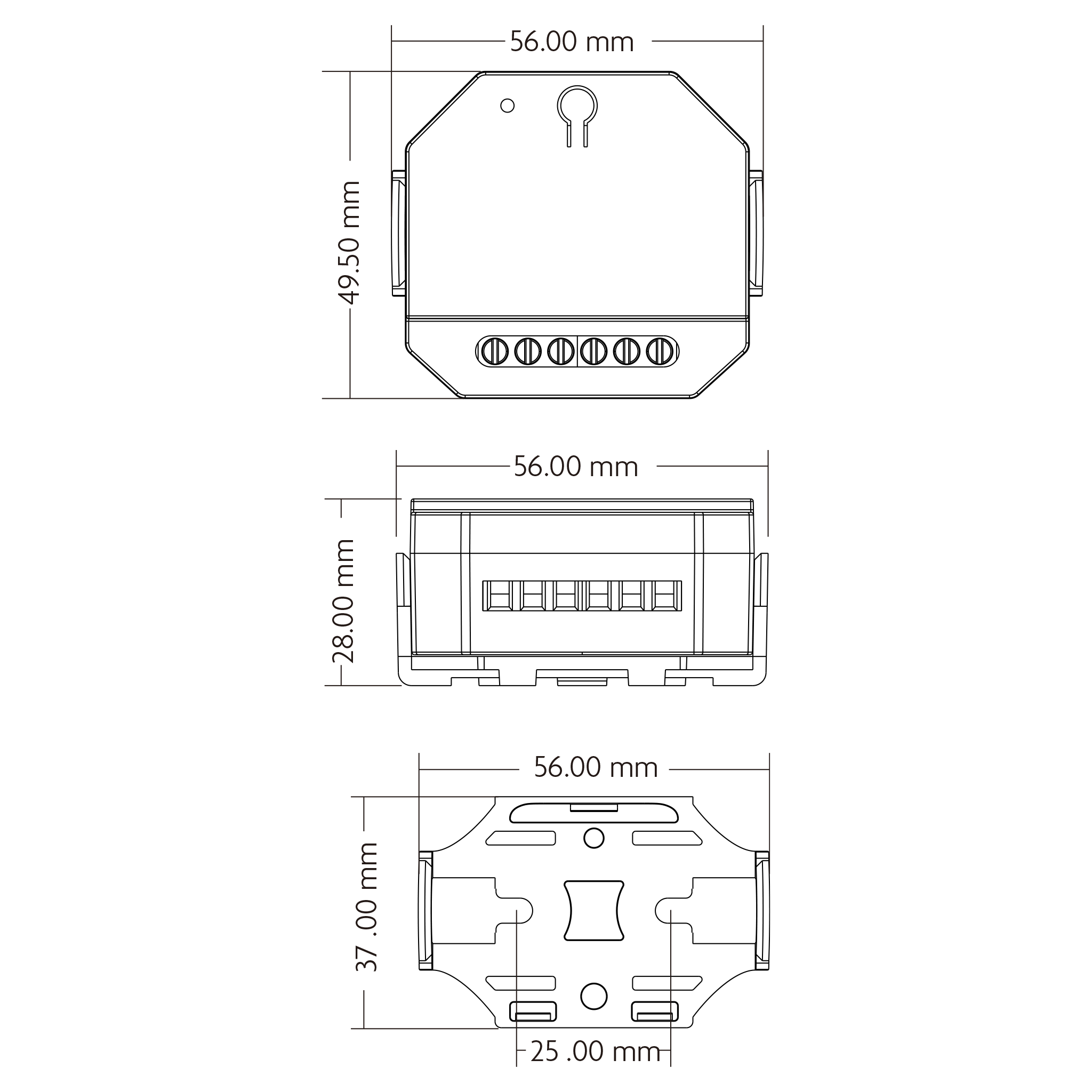

Dimension Drawing
