Wall Dimmer 4X3A 12-24V IP20 Black

Enquire
Stock Available:
Auckland: 3 EACH | Christchurch: Contact us

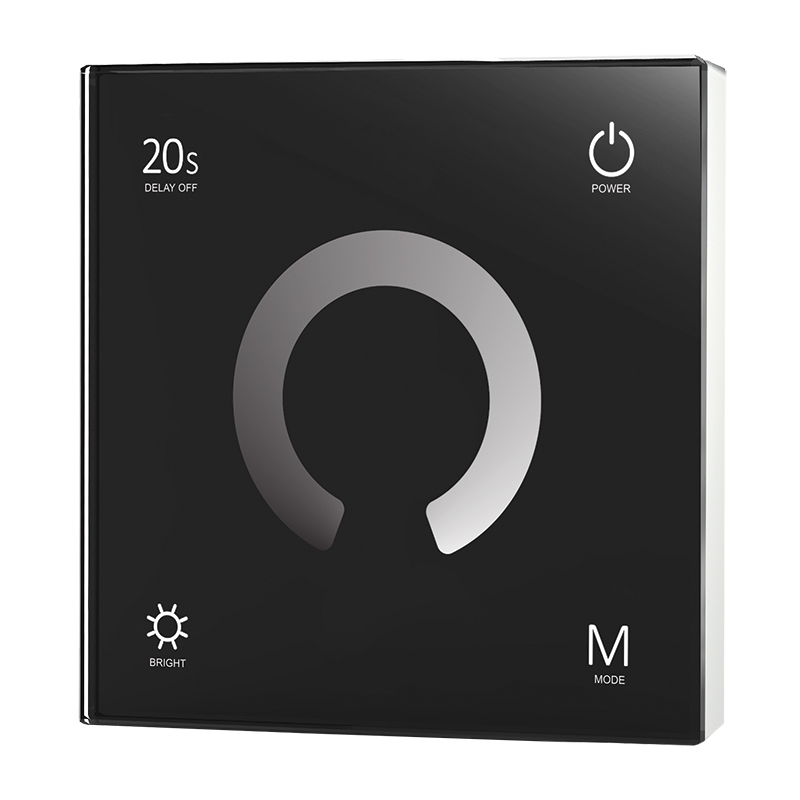

The T1-B is a black glass single colour touch wall panel with a PWM constant voltage controller, designed for smooth and precise dimming and switching of single colour LED lighting. Its ultra-sensitive, high-strength glass surface with subtle backlighting provides responsive, intuitive control with a sleek, modern appearance. Compatible with RF 2.4GHz single-zone remote controls, the T1-B offers flexible lighting control for both residential and commercial applications.

Product Info

Code LCDMSD-T1-B
Warranty 5 years
Voltage Input 12-24V DC
Voltage Output 12-24V DC
Output Power 288W
Output Current 3A
Amps Output 3A
Channels 4
Dimming Range 0-100%
Input Dimming RF, Touch
Output Dimming PWM
IP Rating 20
Working Temperature -30°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

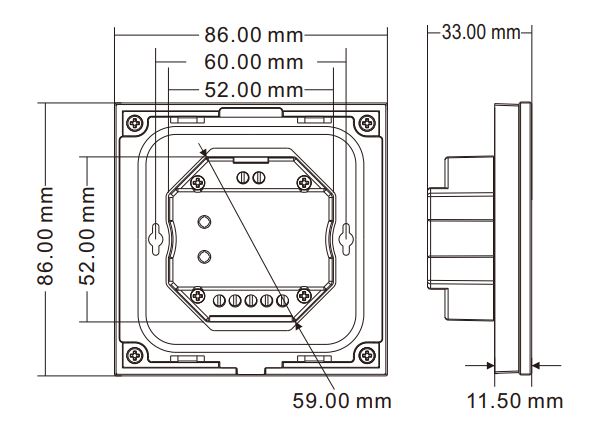

Dimension Drawing
