DALI RGB Wall Mount Controller DT8 1 Zone IP20 White

Enquire
Stock Available:
Auckland: 16 EACH | Christchurch: Contact us

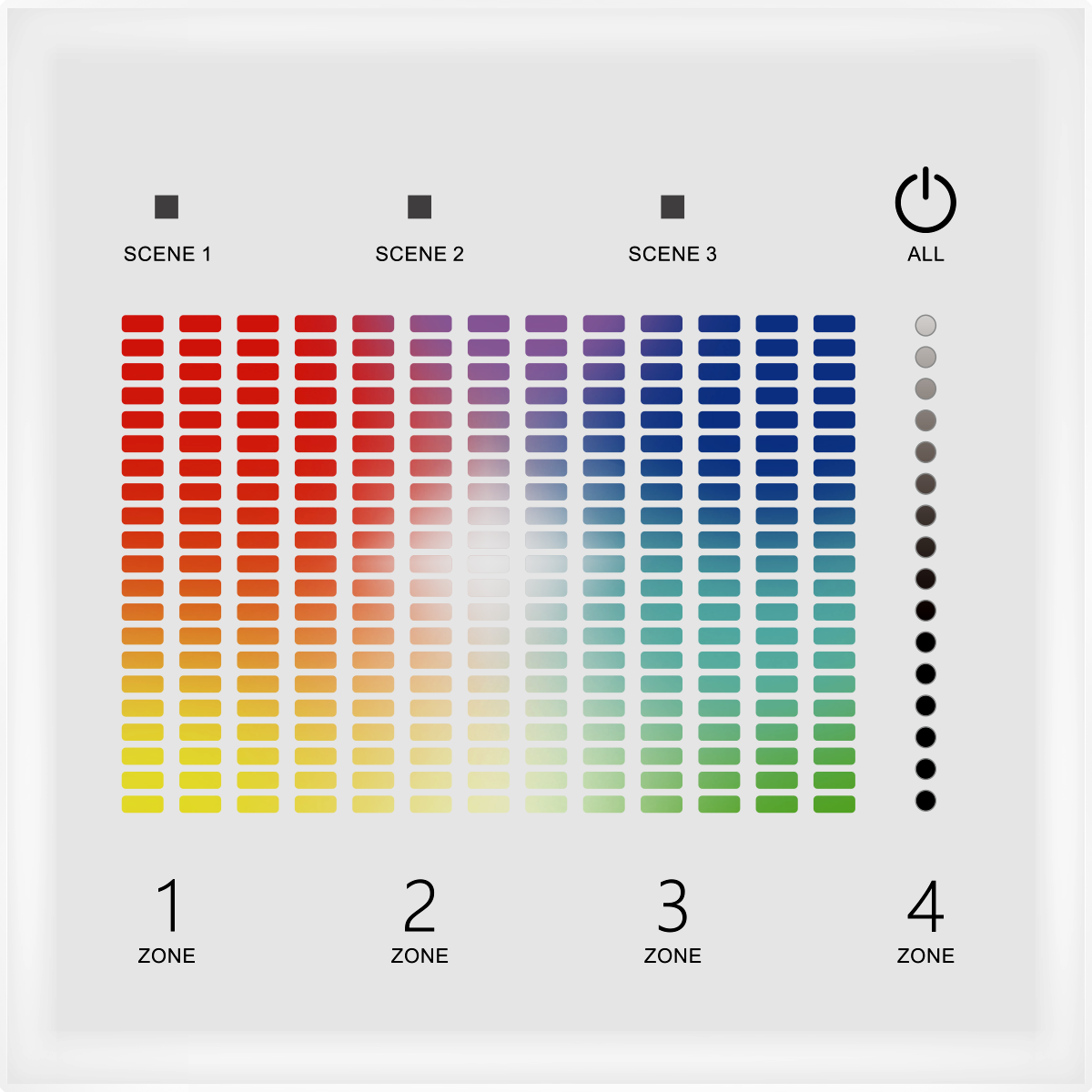

The TD3-S is a versatile DALI touch master panel designed for controlling DALI DT6 and DT8 lighting systems across a wide range of environments. It operates on a single DALI address and supports DT6 dimming, DT8 tunable white, RGB and RGBW control. It can be powered by the DALI bus or 24V DC and allows flexible address setup via an encoding switch with support for unicast, group and broadcast modes. Featuring a white glass, ultra-sensitive touch panel with colour slide, four scene memory and LED indicators, the TD3-S delivers smooth, accurate colour control with optional RF 2.4GHz remote compatibility.

Product Info

Code LCDMSD-TD3-SW
Warranty 5 years
Voltage Input 100-240VAC
Voltage Output 16VDC
Amps Output 100mA
Channels 3
Dimming Range 0-100%
Input Dimming RF, Touch
Output Dimming DALI
IP Rating 20
Working Temperature -20°C to 55°C
PDF View Spec Sheet
PDF Wiring Diagram

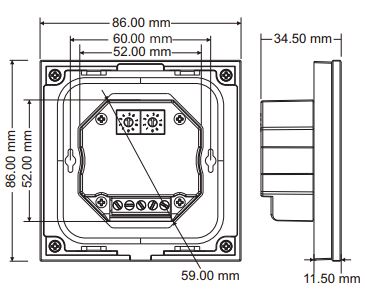

Dimension Drawing
