DALI RGBW Wall Mount Controller DT8 1 Zone IP20 Black

Enquire
Stock Available:
Auckland: 15 EACH | Christchurch: Contact us

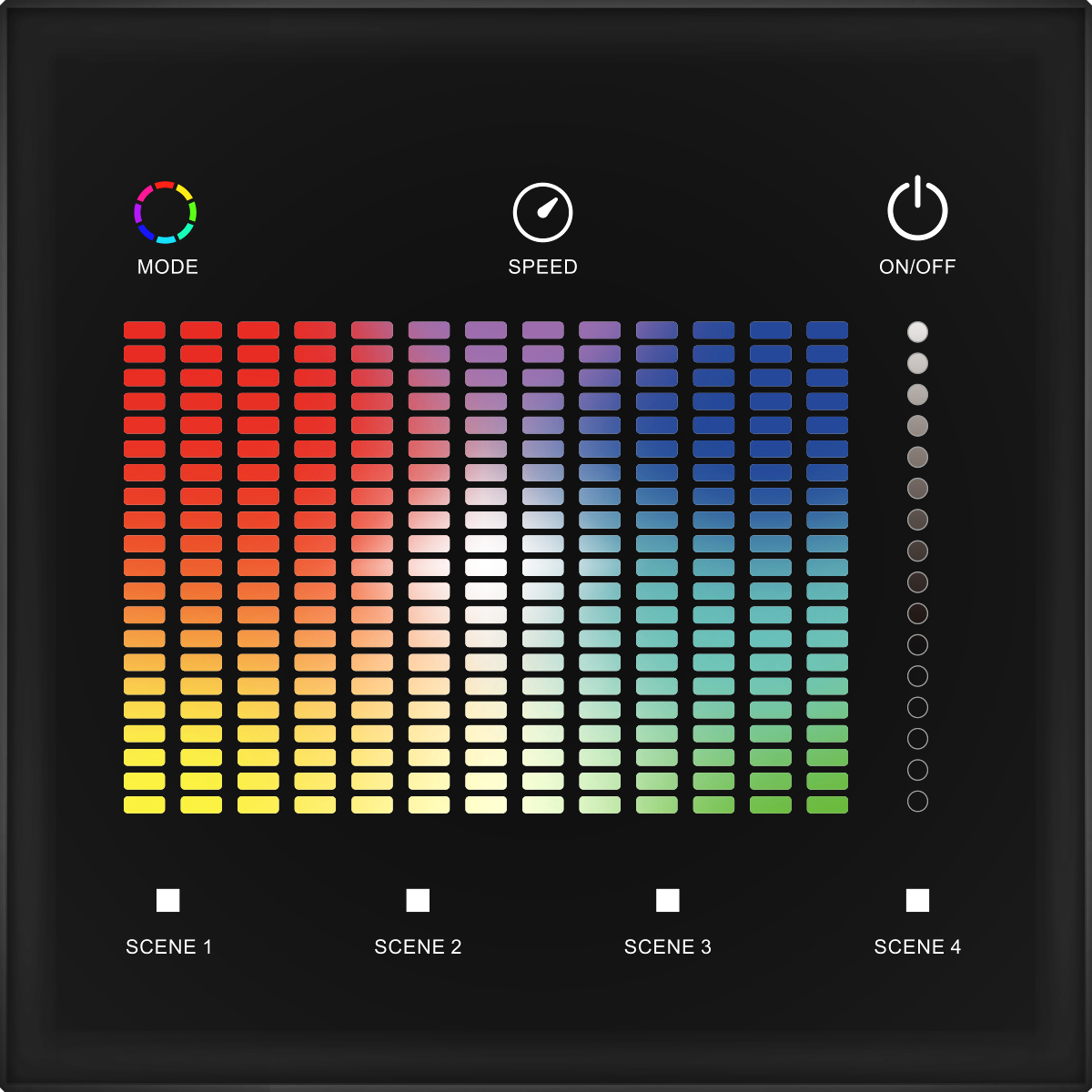

TD4-S 1-zone DALI-2 certified glass touch panel designed for smooth colour control. Supporting DT8-RGB and RGBW, it features a touch colour slide, LED-backlit keys, and the ability to save up to four custom scenes. Easily powered by DALI or 24VDC, with flexible addressing for unicast, group, or broadcast control, and seamless compatibility with our 2.4G one-zone RF remotes.

Product Info

Code LCDMSD-TD4-SB
Warranty 5 Years
Voltage Input 16-24V DC
Voltage Output 16-24V DC
Amps Output 0.017 @ 16V, 0.002 @ 24V
Channels 4
Dimming Range 0-100%
Input Dimming RF, Touch
Output Dimming DALI
IP Rating 20
Working Temperature -20°C to 50°C
PDF View Spec Sheet
PDF Wiring Diagram

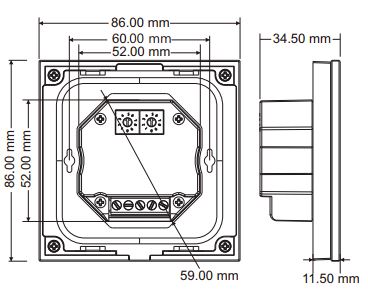

Dimension Drawing
