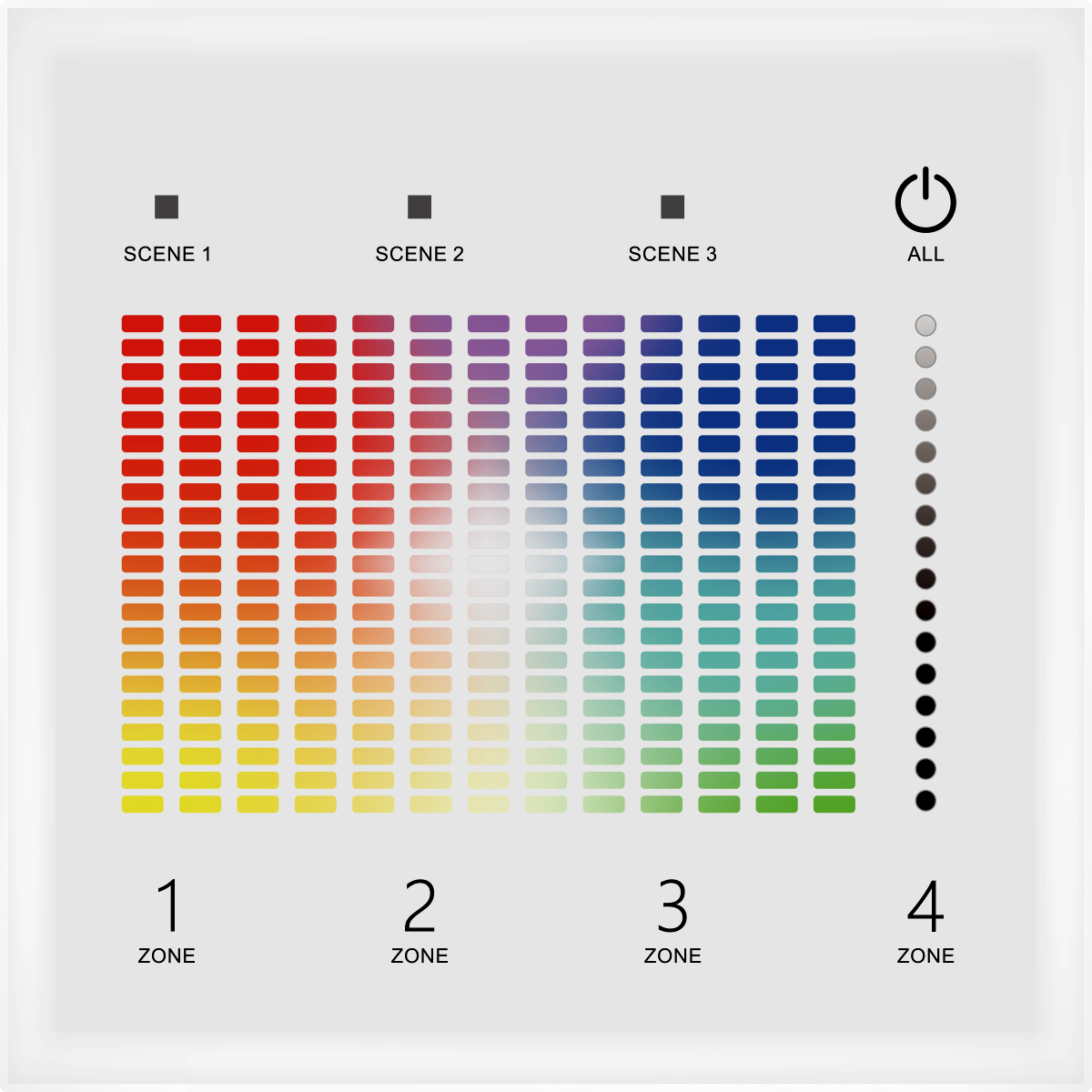

DALI RGBW Wall Mount Controller DT8 1 Zone IP20 White

Enquire
Stock Available:
Auckland: 45 EACH | Christchurch: Contact us

DALI RGBW Wall Mount Controller DT8 1 Zone IP20 White

Product Info

Code LCDMSD-TD4-SW
Warranty 5 Years
Voltage Input 16-24V DC
Voltage Output 16-24V DC
Amps Output 0.017 @ 16V, 0.002 @ 24V
Channels 4
Dimming Range 0-100%
Input Dimming RF, Touch
Output Dimming DALI
IP Rating 20
Working Temperature -20°C to 50°C
PDF View Spec Sheet

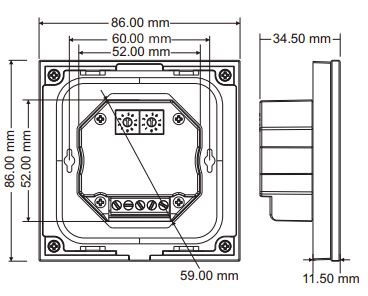

Dimension Drawing
